Torque Converter Clutch Solenoid: Service and Repair

Torqshift Automatic Transmission

Solenoid Body Assembly

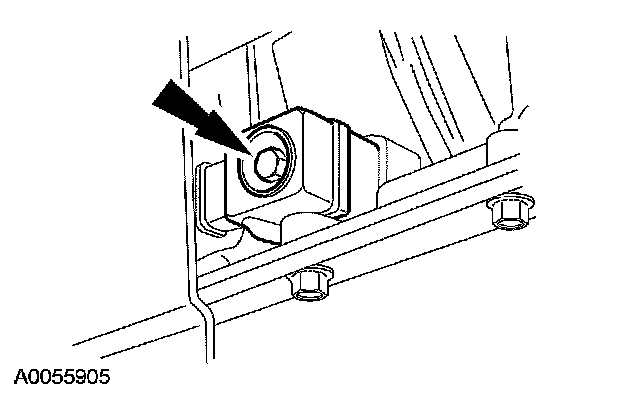

Special Tool(s):

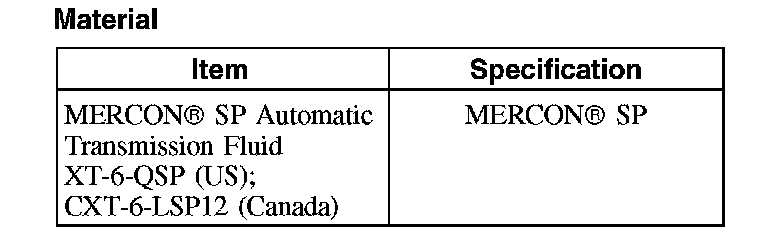

Material:

Removal
1. Remove the transmission fluid pan, gasket and filter.





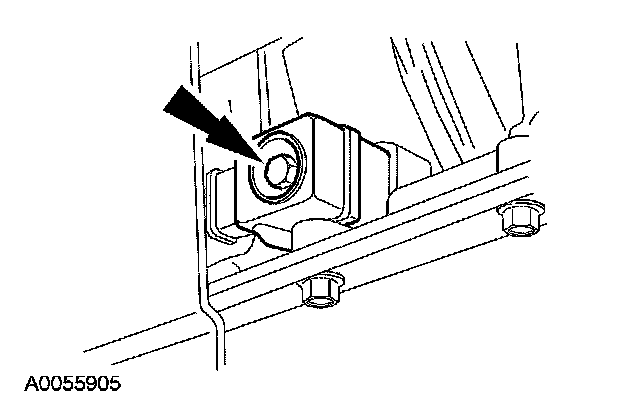

2. Disconnect the solenoid body electrical connector.





3. NOTE: While lowering the solenoid body, the manual valve may fall out of the solenoid body.

Remove the solenoid body.

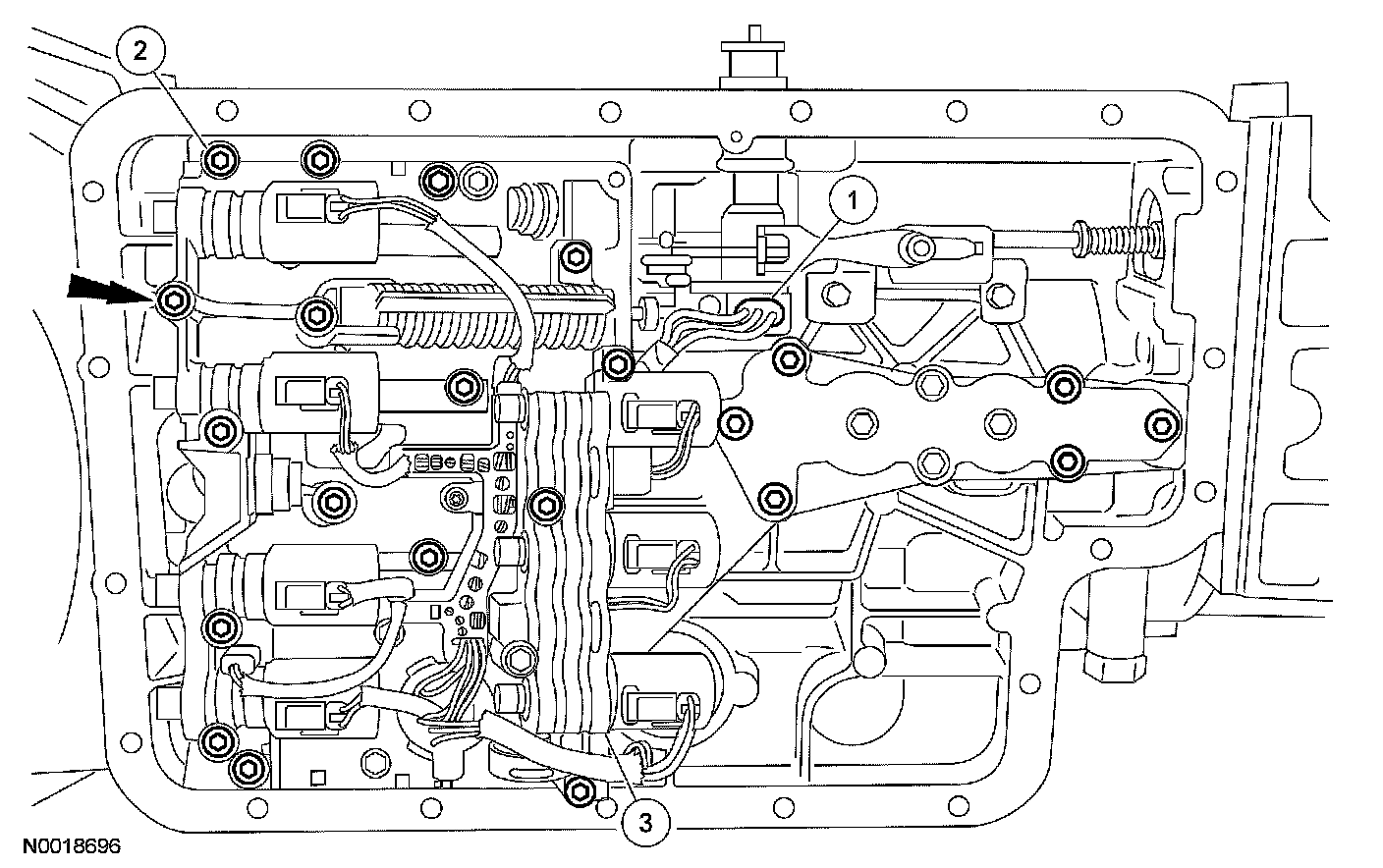

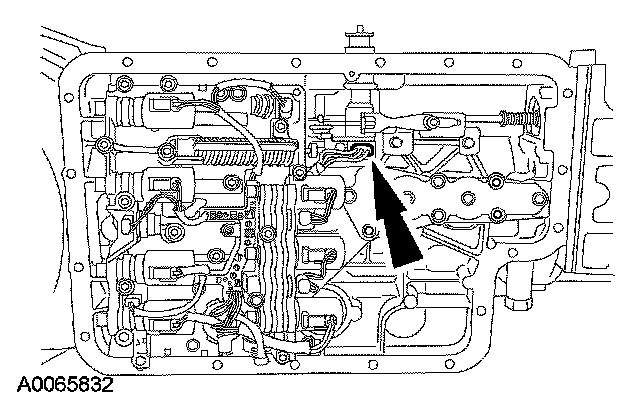

1 Disconnect the transmission range (TR) sensor electrical connector.
2 Remove the solenoid body bolts.
3 Remove the solenoid body.
4. Remove the solenoid body gasket.





Installation

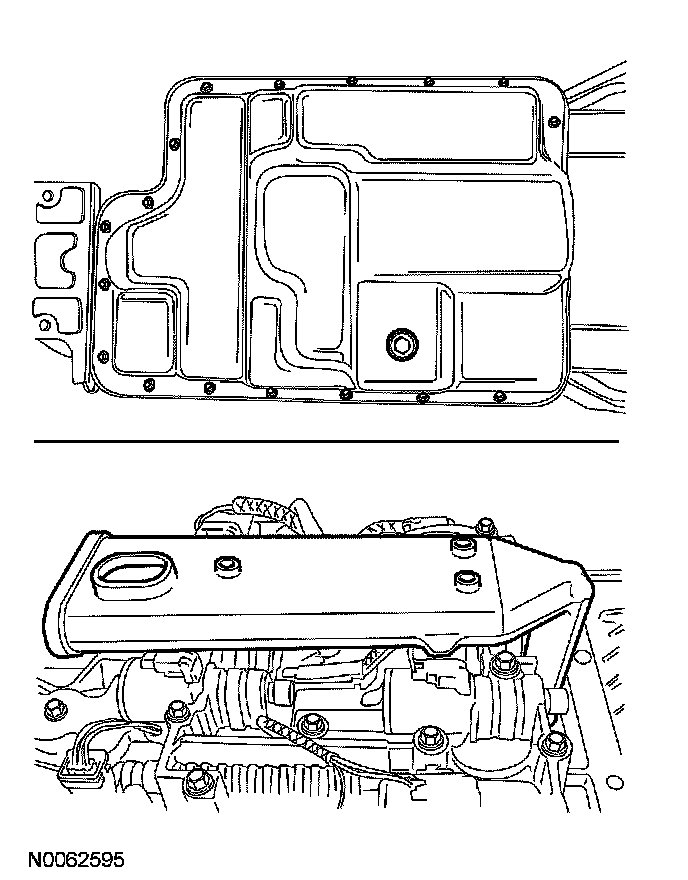

Early Build Vehicles With Externally Mounted Remote Filter:

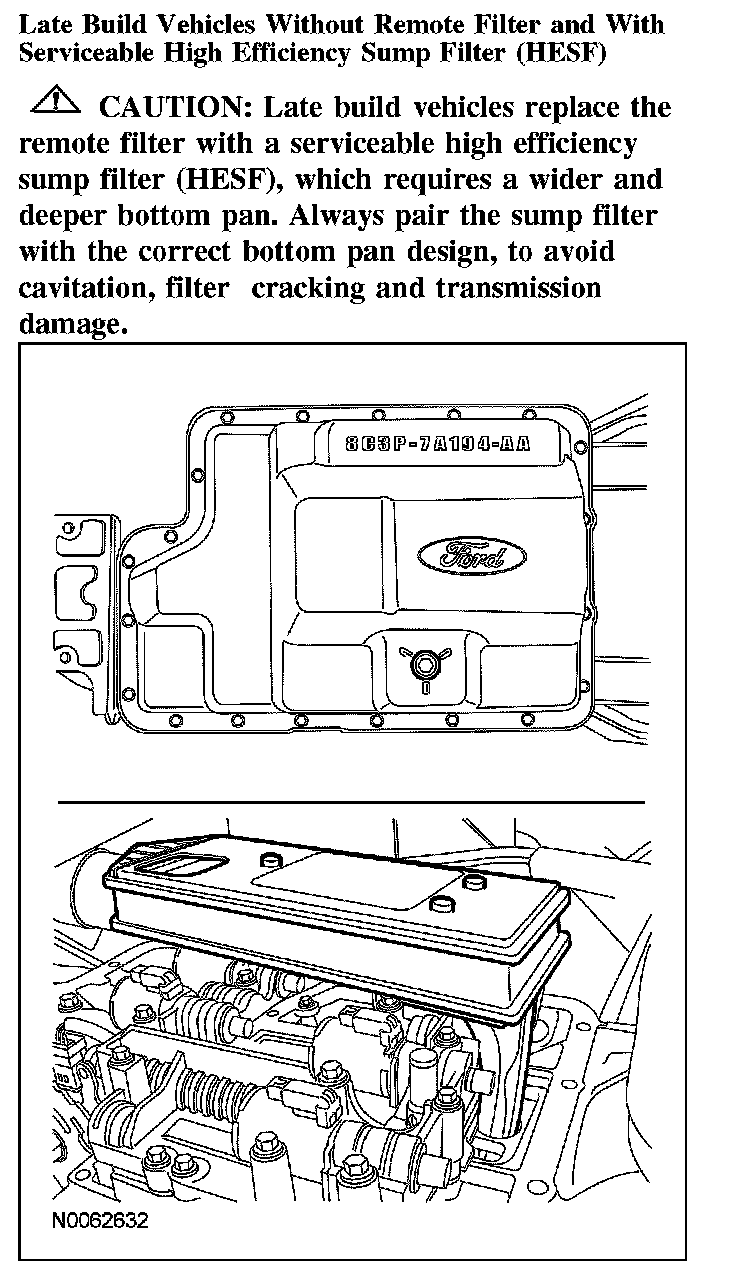

Late Build Vehicles Without Remote Filter and With Serviceable High Efficiency Sump Filter (HESF):

1. Install a new solenoid body gasket.

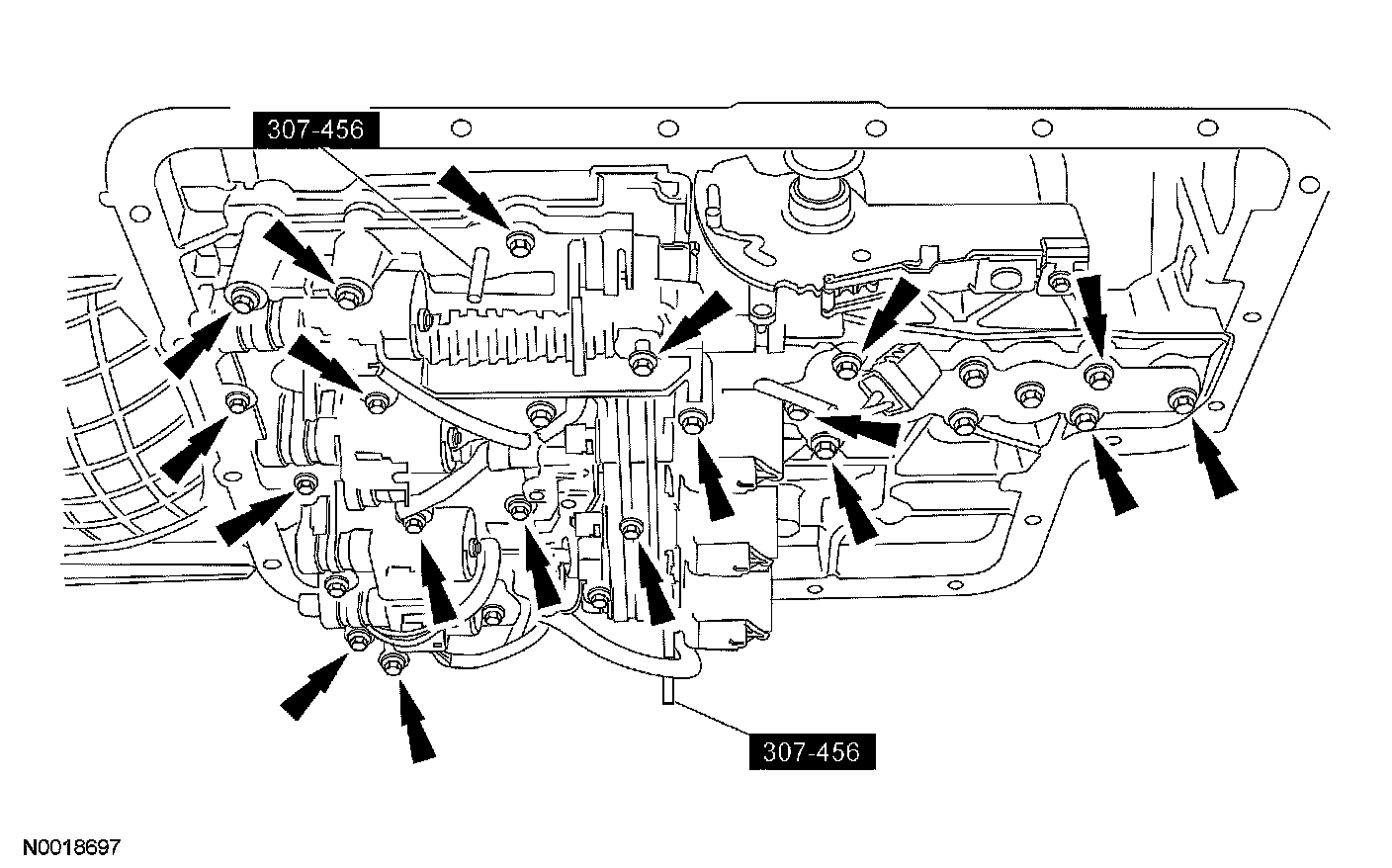

2. Using the special tools, install the solenoid body and loosely install the bolts.

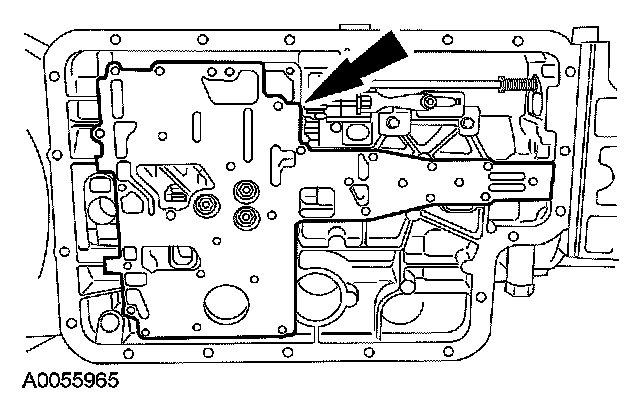

^ While installing the solenoid body, align the manual valve.

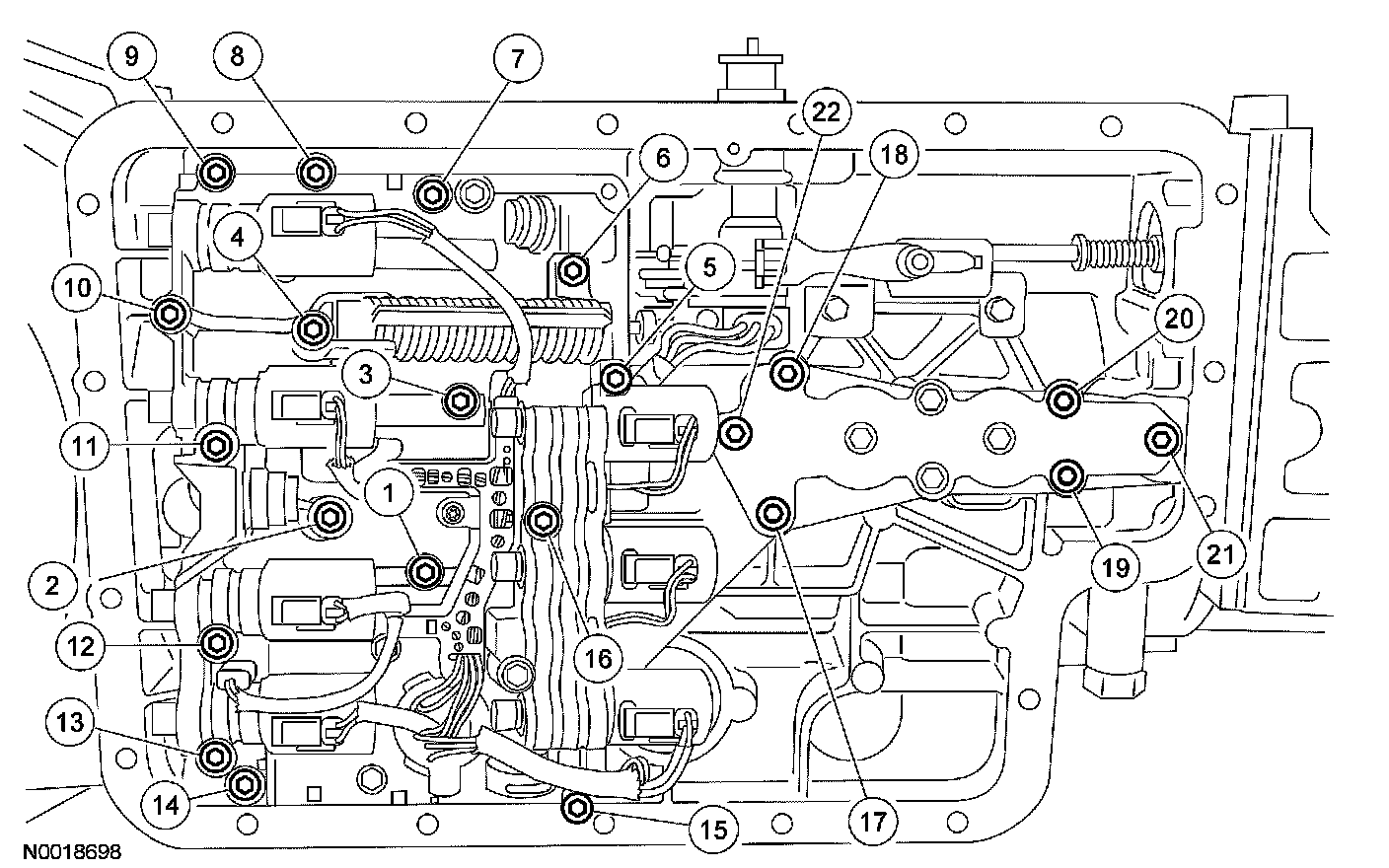

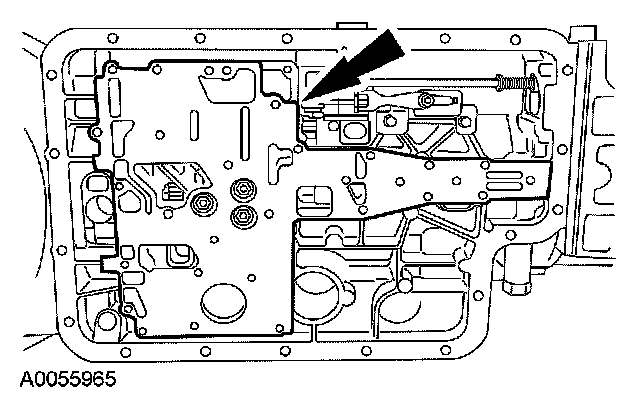

3. Tighten all the bolts in the sequence shown.
^ Tighten to 13 Nm (10 ft. lbs.)





4. Connect the TR sensor connector.





5. Install the transmission fluid filter, pan gasket and pan.
6. Connect the solenoid body electrical connector.
^ Tighten to 5 Nm (44 inch lbs.)
