Gasoline Engine Band, Clutch, Solenoid Application Chart (B)

Torqshift Automatic Transmission

Gasoline Engine Band, Clutch, Solenoid Application Chart (B)

Gasoline Engine Band, Clutch, Solenoid Application Chart (B) (Part 1):

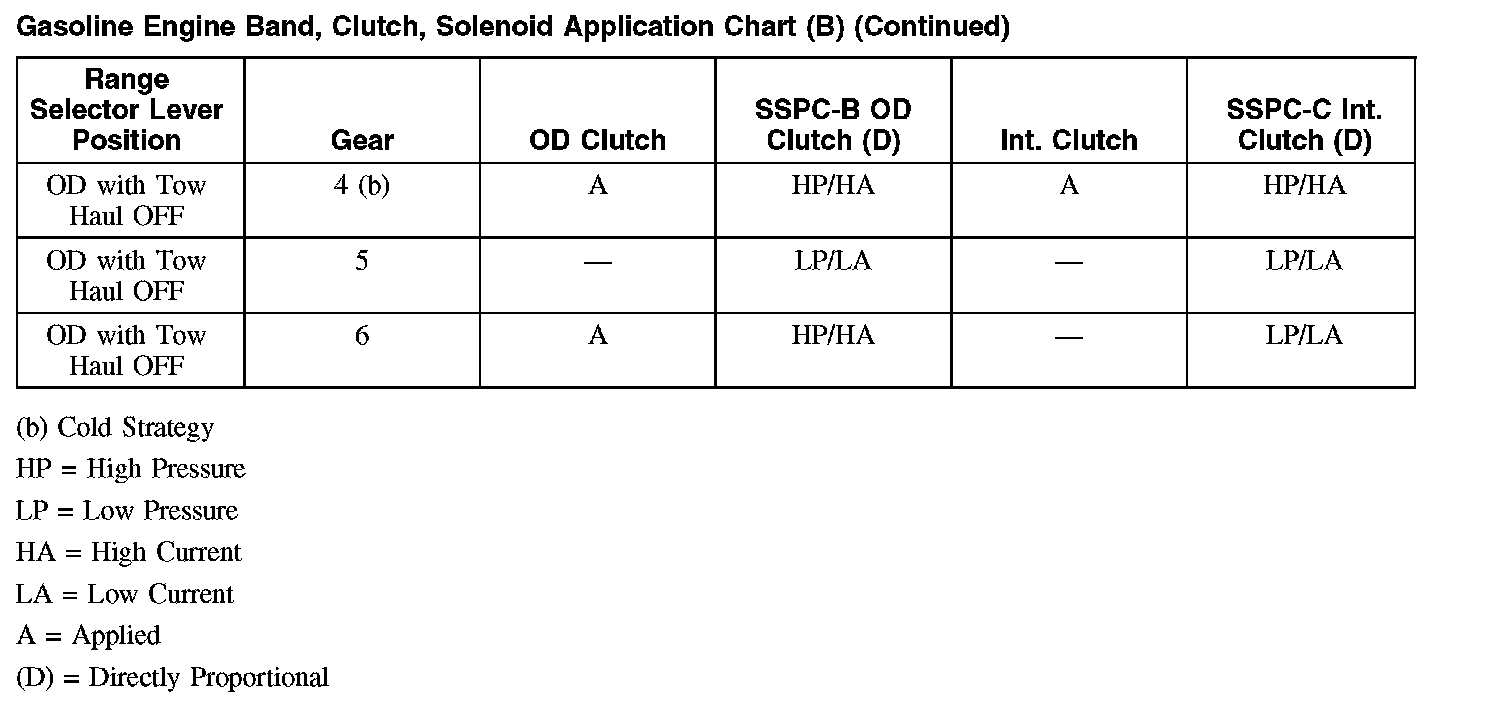

Gasoline Engine Band, Clutch, Solenoid Application Chart (B) (Part 2):
