Oil Cooler: Service and Repair

Oil Cooler

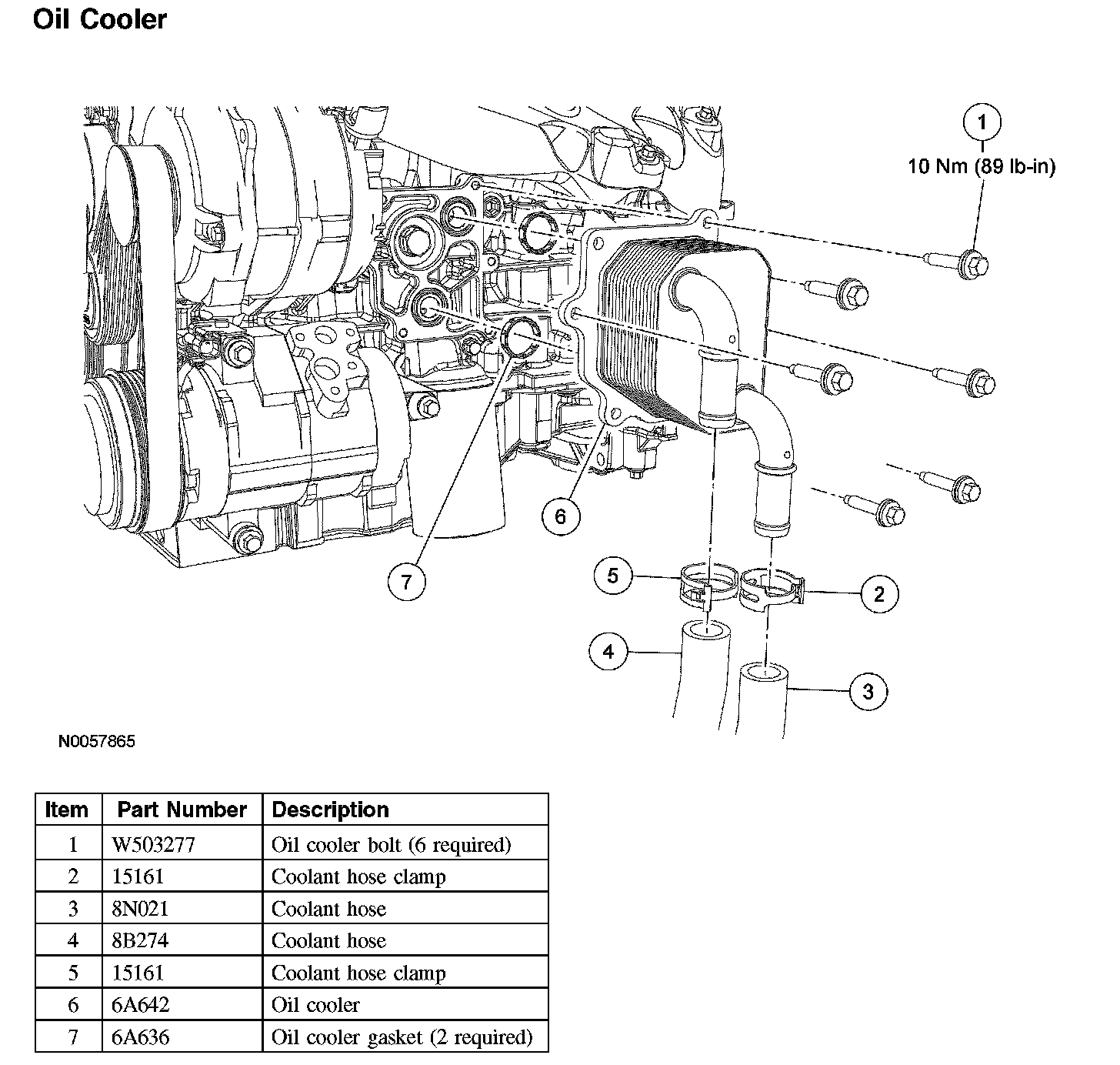

Oil Cooler:

Removal
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Drain the cooling system. For additional information, refer to Cooling System.
3. Remove the LH catalytic converter. For additional information, refer to Catalytic Converter.
4. Disconnect the 2 coolant hoses from the oil cooler.

5. CAUTION: If metal or aluminum material is present in the oil cooler, mechanical concerns exist.

Remove the 6 bolts and the oil cooler.
^ Discard the gaskets.
^ Inspect the oil cooler.
^ Clean and inspect all sealing surfaces.

Installation
1. Using new gaskets, install the oil cooler and the 6 bolts.
^ Tighten to 10 Nm (89 inch lbs).
2. Connect the 2 coolant hoses to the oil cooler.
3. Install the LH catalytic converter. For additional information, refer to Catalytic Converter.
4. Fill and bleed the cooling system.
