Fuel Line Coupler: Service and Repair

QUICK CONNECT COUPLING

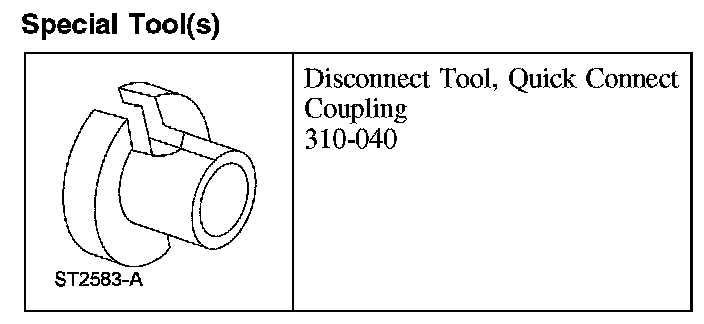

Special Tool(s):

Special Tool(s)

Disconnect - Type I

WARNING:
- Do not carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable vapors are always present and can ignite. Failure to follow these instructions may result in personal injury.
- Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in personal injury.

CAUTION:
- If the liquid or vapor tube is damaged (torn, holes or delaminated), a new tube assembly must be installed. Do not use aftermarket sleeving. Do not re-adhere loose sleeving material.
- When reusing liquid or vapor tube quick connect couplings, make sure to use compressed air to remove any foreign material from the connector locking tab area before separating the quick connect coupling from the tube. Apply clean engine oil to the end of the tube before inserting the quick connect coupling onto the tube.
- Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install blanking plugs to any open orifices or tubes.

1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure.

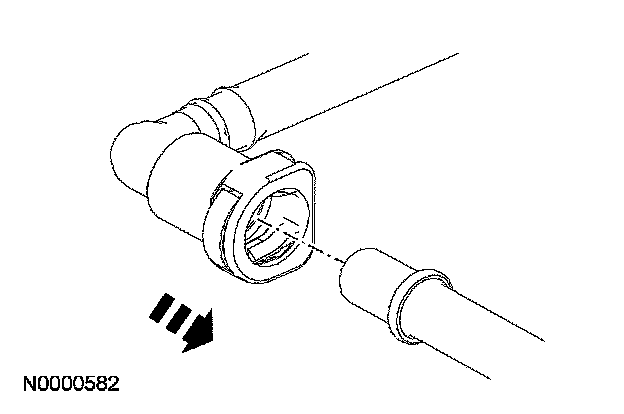

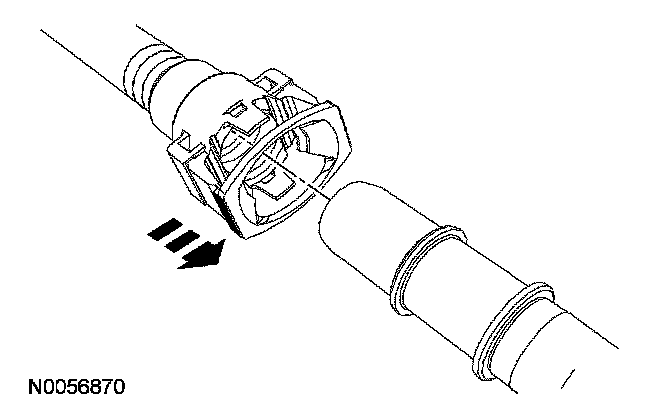

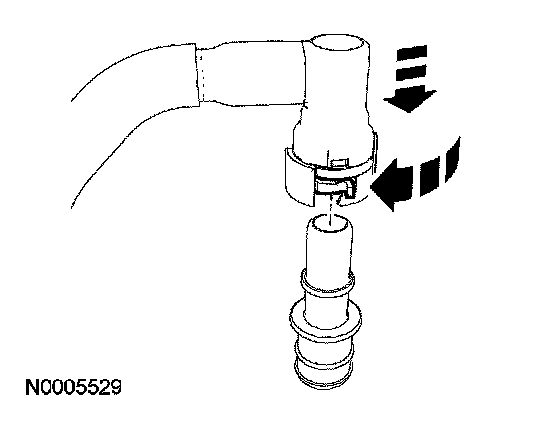

2. Depress the locking tab and release the quick connect coupling from the tube.

Connect - Type I

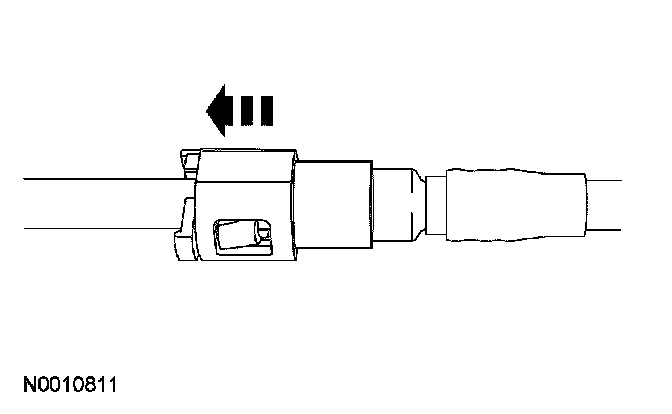

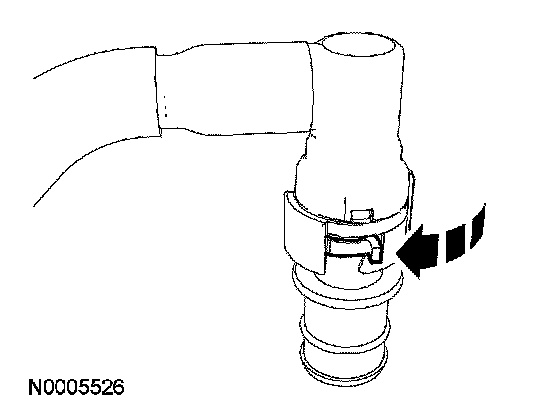

1. CAUTION: Make sure the fuel tube clicks into place when installing the quick connect coupling onto the tube.

Install the quick connect coupling onto the tube until it is fully seated.

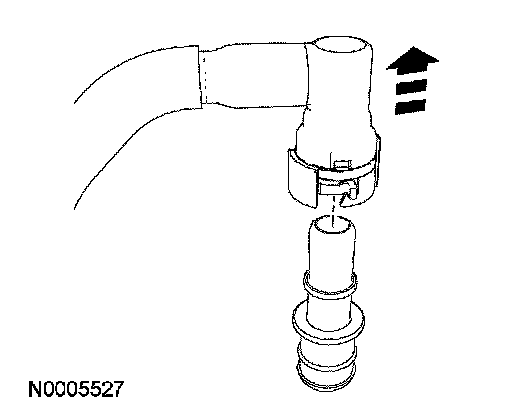

2. Pull on the quick connect coupling and the tube to make sure it is securely fastened.

Disconnect - Type II

WARNING:
- Do not carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable vapors are always present and can ignite. Failure to follow these instructions may result in personal injury.
- Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in personal injury.

CAUTION:
- If the liquid or vapor tube is damaged (torn, holes or delaminated), a new tube assembly must be installed. Do not use aftermarket sleeving. Do not re-adhere loose sleeving material.
- When reusing liquid or vapor tube quick connect couplings, make sure to use compressed air to remove any foreign material from the connector locking tab area before separating the quick connect coupling from the tube. Apply clean engine oil to the end of the tube before inserting the quick connect coupling onto the tube.
- Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install blanking plugs to any open orifices or tubes.

1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure.

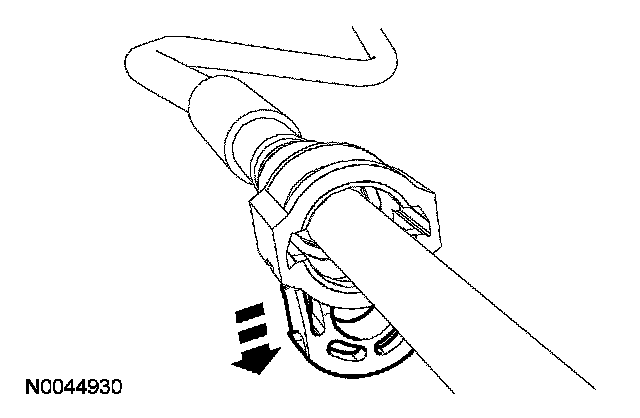

2. Release the quick connect coupling primary locking tab.

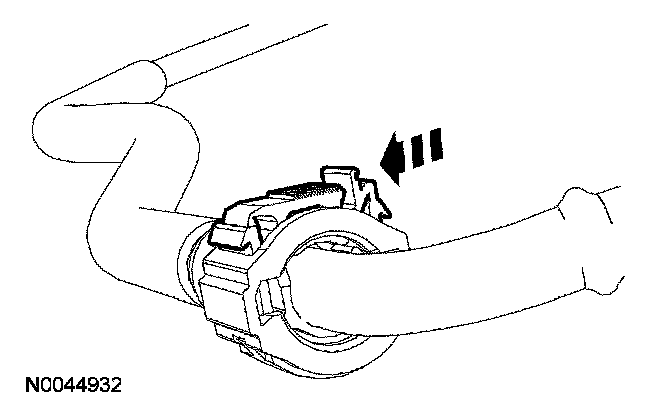

3. Rotate the primary locking tab to the fully opened position and squeeze the secondary locking tabs to release the locking mechanism.

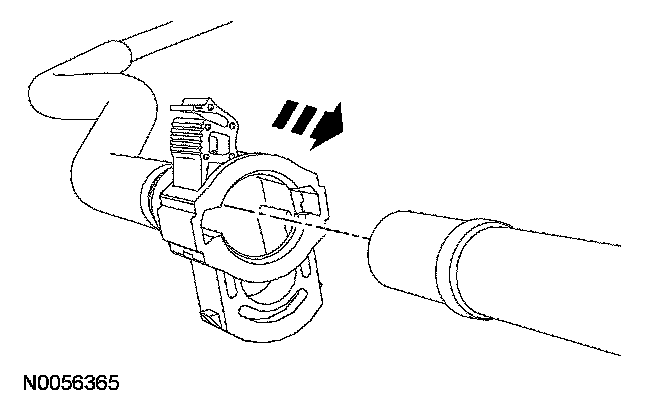

4. Push the locking mechanism outward and release the tube.







5. Remove the quick connect coupling from the tube.

Connect - Type II

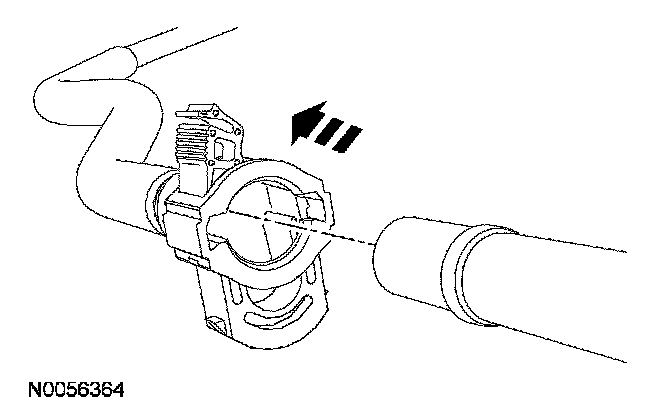

1. Install the quick connect coupling onto the tube until it is fully seated.







2. CAUTION: Make sure the retainer clip clicks into place when installing.

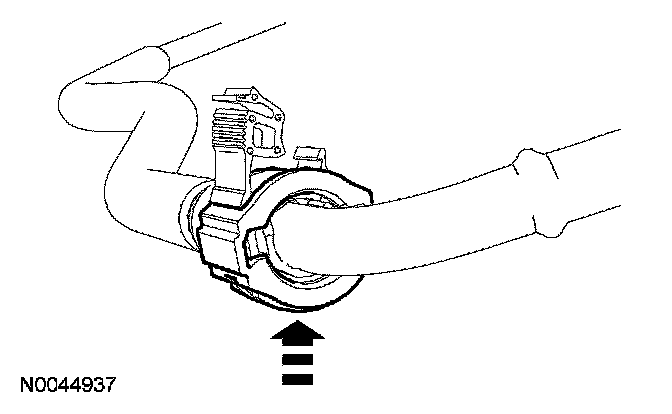

Depress the locking mechanism until it is flush with the quick connect coupling housing and is fully seated onto the tube.

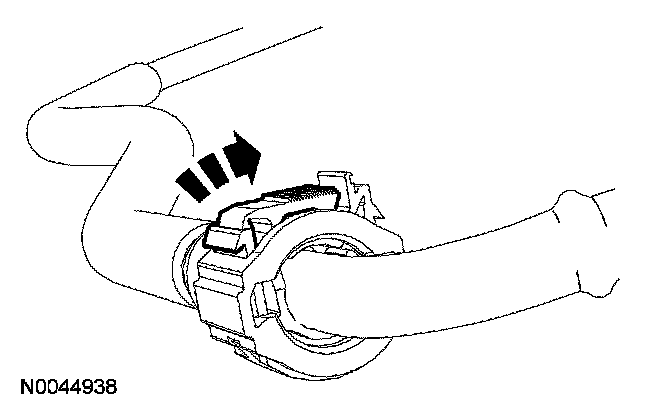

3. Rotate the primary locking tab on the retainer clip to the closed position.
4. Pull on the quick connect coupling and the tube to make sure it is securely fastened.

Disconnect - Type III

WARNING:
- Do not carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable vapors are always present and can ignite. Failure to follow these instructions may result in personal injury.
- Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in personal injury.

CAUTION:
- If the liquid or vapor tube is damaged (torn, holes or delaminated), a new tube assembly must be installed. Do not use aftermarket sleeving. Do not re-adhere loose sleeving material.
- When reusing liquid or vapor tube quick connect couplings, make sure to use compressed air to remove any foreign material from the connector locking tab area before separating the quick connect coupling from the tube. Apply clean engine oil to the end of the tube before inserting the quick connect coupling onto the tube.
- Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install blanking plugs to any open orifices or tubes.

1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure.

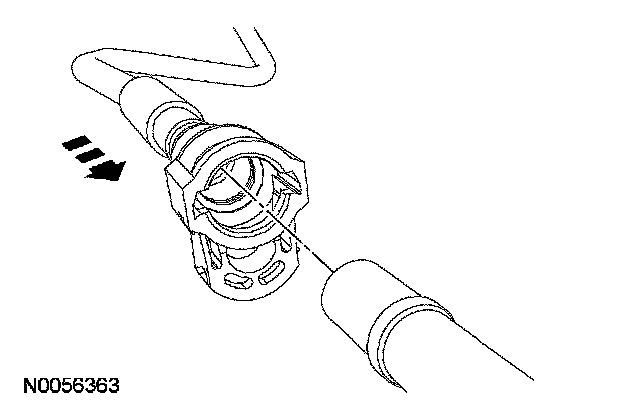

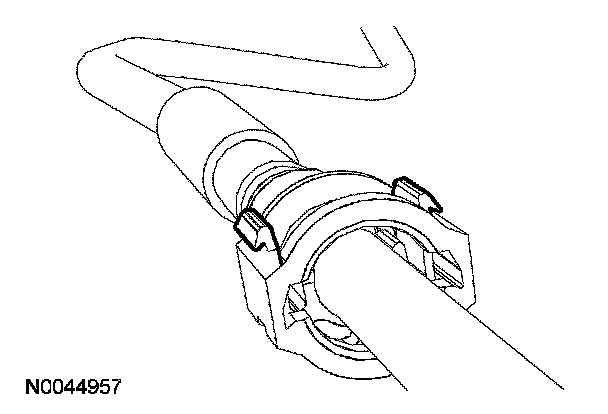

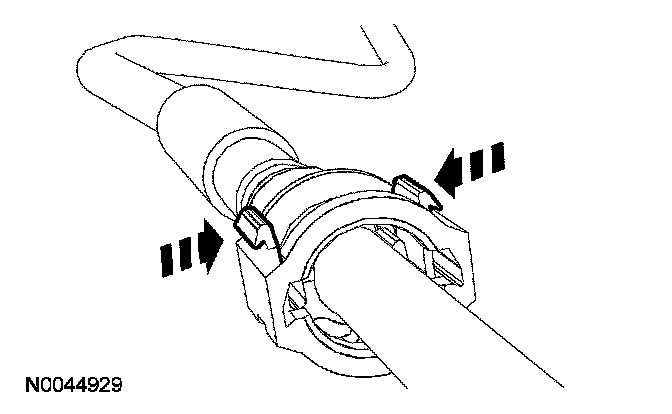

2. Squeeze the quick connect coupling retainer locking tabs to release the locking mechanism.







3. Push the locking mechanism outward to release the tube.







4. Remove the quick connect coupling from the tube.

Connect - Type III

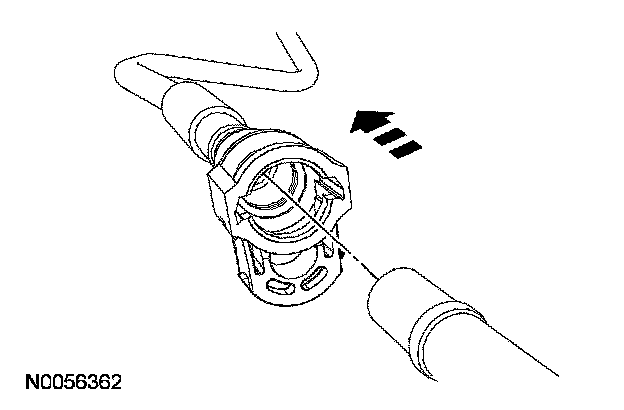

1. CAUTION: Make sure that the tube clicks into place when installing the quick connect coupling.

Install the quick connect coupling onto the tube.







2. Depress the quick connect coupling locking mechanism into the locked position.







3. Visually inspect and verify that the locking mechanism is flush with the quick connect coupling housing and that the locking tabs are securely fastened.
4. Pull on the quick connect coupling and the tube to make sure it is securely fastened.

Disconnect - Type IV

WARNING:
- Do not carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable vapors are always present and can ignite. Failure to follow these instructions may result in personal injury.
- Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in personal injury.

CAUTION:
- If the liquid or vapor tube is damaged (torn, holes or delaminated), a new tube assembly must be installed. Do not use aftermarket sleeving. Do not re-adhere loose sleeving material.
- When reusing liquid or vapor tube quick connect couplings, make sure to use compressed air to remove any foreign material from the connector locking tab area before separating the quick connect coupling from the tube. Apply clean engine oil to the end of the tube before inserting the quick connect coupling onto the tube.
- Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install blanking plugs to any open orifices or tubes.

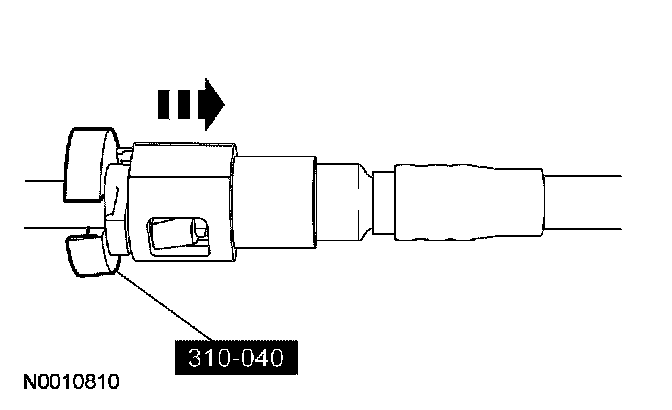

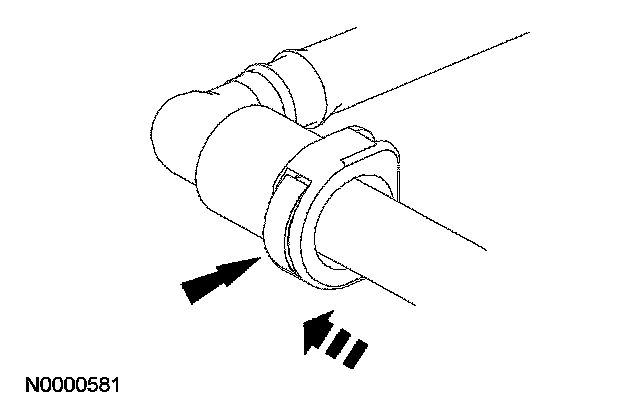

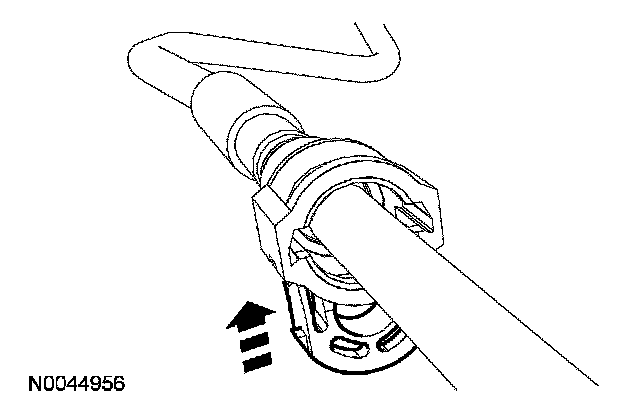

1. Install the special tool on the tube and push into the quick connect coupling locking clip to release the locking tabs.







2. Remove the quick connect coupling from the tube.

Connect - Type IV







1. CAUTION: Make sure the fuel tube clicks into place when installing the tube.

Install the quick connect coupling onto the tube until it is fully seated.

2. Pull on the quick connect coupling and the tube to make sure it is securely fastened.

Disconnect - Type V

WARNING:
- Do not carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable vapors are always present and can ignite. Failure to follow these instructions may result in personal injury.
- Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in personal injury.


CAUTION:
- If the liquid or vapor tube is damaged (torn, holes or delaminated), a new tube assembly must be installed. Do not use aftermarket sleeving. Do not re-adhere loose sleeving material.
- When reusing liquid or vapor tube quick connect couplings, make sure to use compressed air to remove any foreign material from the connector locking tab area before separating the quick connect coupling from the tube. Apply clean engine oil to the end of the tube before inserting the quick connect coupling onto the tube.

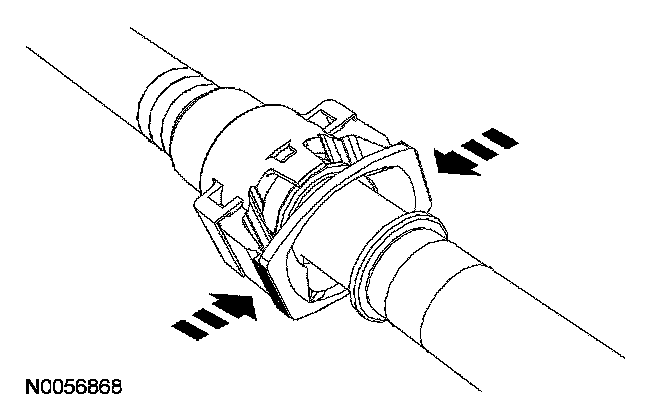

1. Squeeze the outer edges of the quick connect coupling to release the locking tabs.







2. Remove the quick connect coupling from the tube.

Connect - Type V







1. CAUTION: Make sure the quick connect coupling locking tabs click into place when installing onto the tube.

Install the quick connect coupling onto the tube until it is fully seated.

2. Pull on the quick connect coupling and the tube to make sure it is securely fastened.

Disconnect - Type VI

WARNING:
- Do not carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable vapors are always present and can ignite. Failure to follow these instructions may result in personal injury.
- Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in personal injury.

CAUTION:
- If the liquid or vapor tube is damaged (torn, holes or delaminated), a new tube assembly must be installed. Do not use aftermarket sleeving. Do not re-adhere loose sleeving material.
- When reusing liquid or vapor tube quick connect couplings, make sure to use compressed air to remove any foreign material from the connector locking tab area before separating the quick connect coupling from the tube. Apply clean engine oil to the end of the tube before inserting the quick connect coupling onto the tube.
- Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install blanking plugs to any open orifices or tubes.

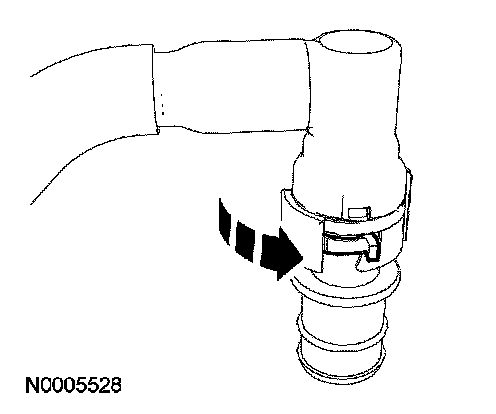

1. Release the lock tab on the quick connect coupling.







2. Separate the quick connect coupling from the fitting.

Connect - Type VI







1. Release the lock tab and install the quick connect coupling onto the fitting.







2. Apply the lock tab into the latched position.
3. Pull on the quick connect coupling to make sure it is securely fastened.
