Fuel Pressure Release: Service and Repair

FUEL SYSTEM PRESSURE RELEASE

Special Tool(s):

Special Tool(s)


WARNING:
- Do not carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable vapors are always present and can ignite. Failure to follow these instructions may result in personal injury.
- Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in personal injury.
- Fuel in the fuel system remains under high pressure, even when the engine is not running. Before servicing or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved to prevent accidental spraying of fuel, which may cause personal injury or a fire hazard.

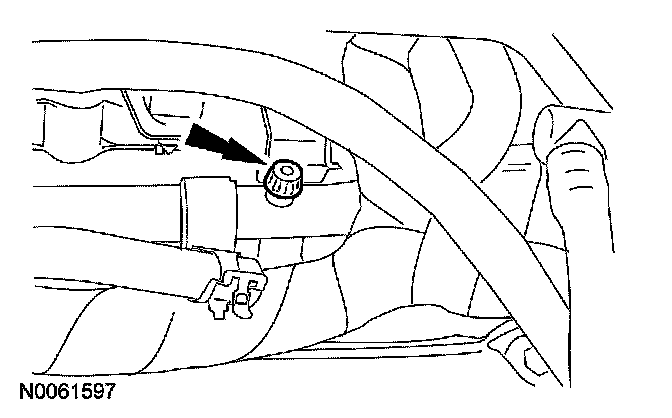

1. Remove the Schrader valve cap.







2. NOTE: This step will drain some fuel out of the system. Place the fuel in a suitable container.

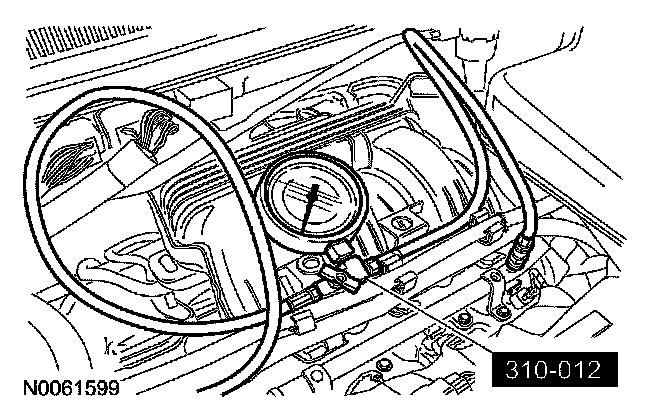

Install the special tool and slowly open the manual valve to relieve the fuel system pressure.
