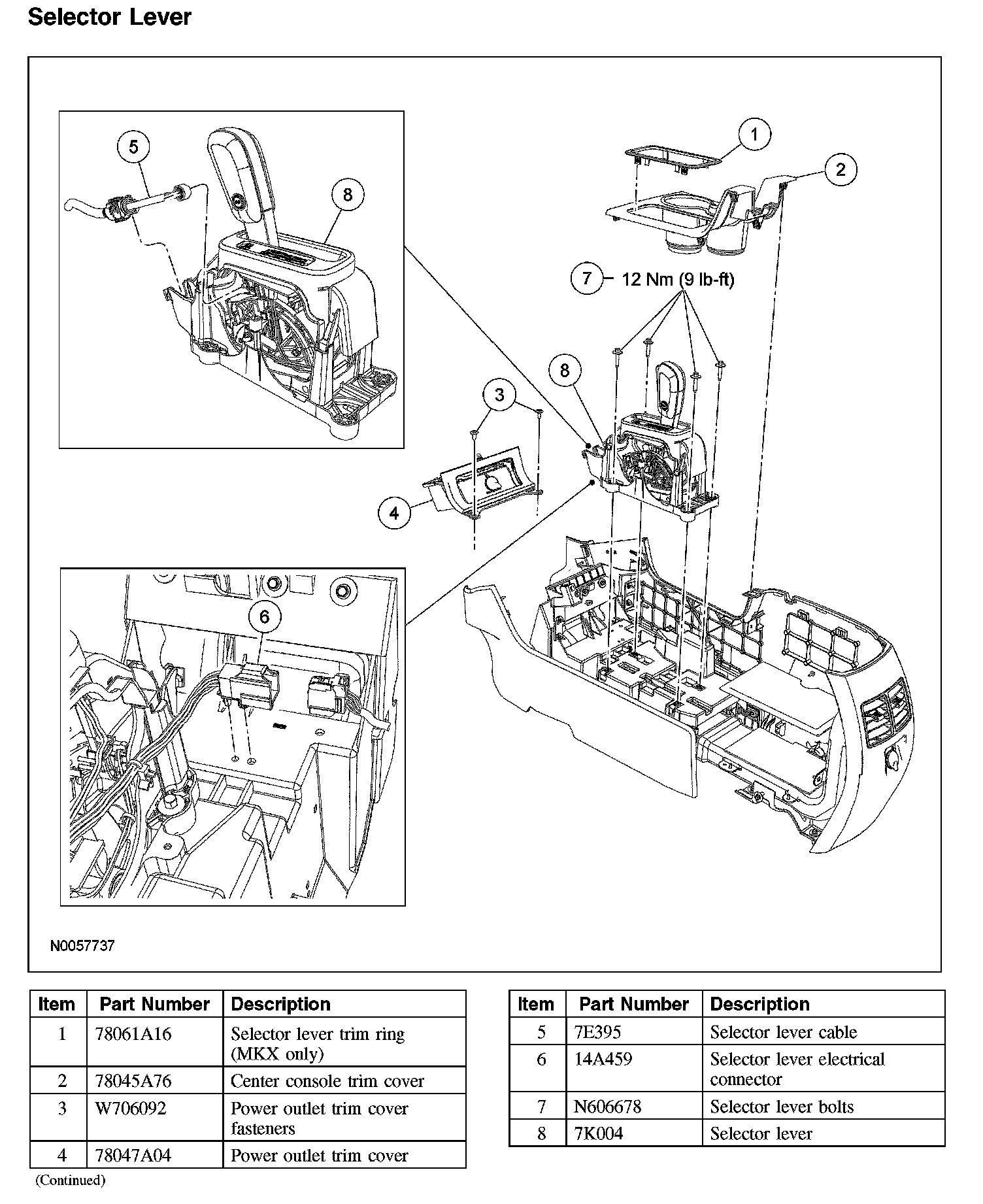

Selector Lever

Selector Lever

Selector Lever:

Removal

MKX
1. Using a suitable tool, remove the selector lever trim ring.

All vehicles
2. Lift the armrest. Using a suitable tool, remove the center console trim cover.

3. Remove the 2 fasteners and position aside the power outlet trim cover.

4. Remove the selector lever cable end from the selector lever.

5. Release the 2 tabs and remove the selector lever cable from the selector lever housing.

6. Disconnect the selector lever electrical connector.

7. Remove the bolts and the selector lever.

Installation

All vehicles
1. Install the selector lever and the bolts.
^ Tighten to 12 Nm (9 ft. lbs).

2. Connect the selector lever electrical connector.

3. Install the selector lever cable in the selector lever housing.

4. Place the selector lever in REVERSE.

5. Disconnect the selector lever cable end from the manual lever.

6. Install the selector lever cable end on the selector lever.

7. Place the selector lever in DRIVE.

8. Position the power outlet trim cover in place and install the 2 fasteners.

9. Install the center console trim cover.

10. Install the selector lever trim ring.

All vehicles
11. Place the manual lever in DRIVE.
1 Rotate the manual lever clockwise until it stops.
2 Rotate the manual lever counterclockwise one detent.

12. Unlock the adjuster by sliding the locking tab over.

13. Slide the cable end forward or backward to align it with the manual lever.

14. With the adjuster locking tab released, connect the selector lever cable end to the manual lever.

15. Slide the release tab back to lock the adjuster.

16. Verify that the vehicle starts in PARK and NEUTRAL only and that the reverse lamps illuminate in REVERSE.
