Selector Lever Knob

Selector Lever Knob

Selector Lever Knob:

Removal

MKX

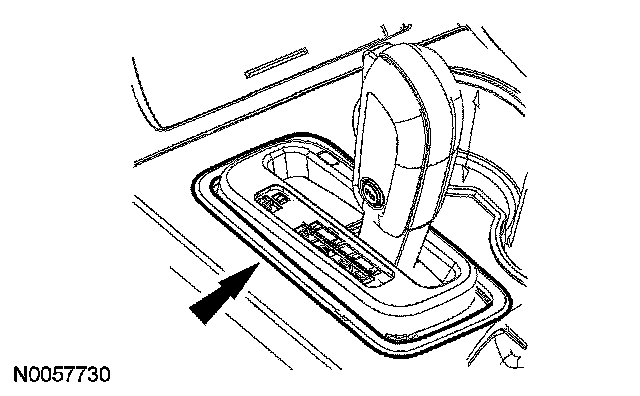

1. Using a suitable tool, remove the selector lever trim ring.





All vehicles

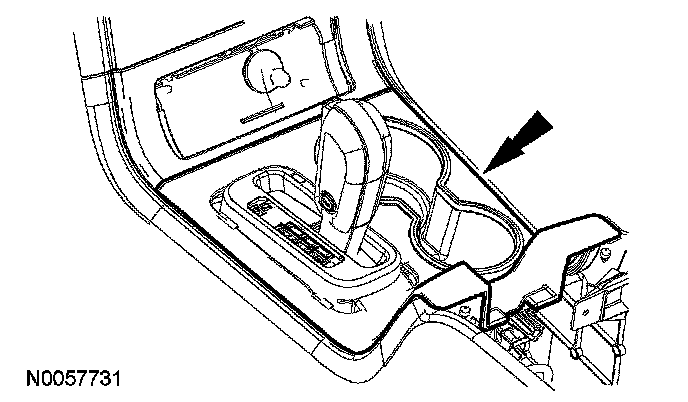

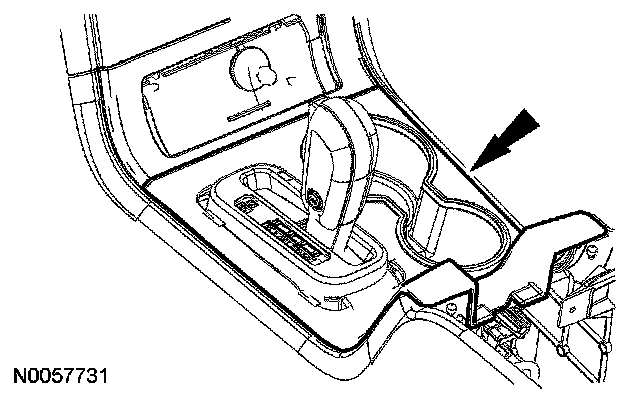

2. Lift the armrest. Using a suitable tool, remove the center console trim cover.





3. NOTE: Center console side trim cover removed for clarity.

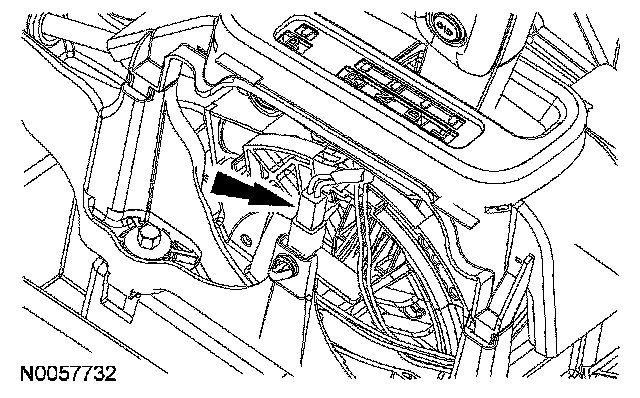

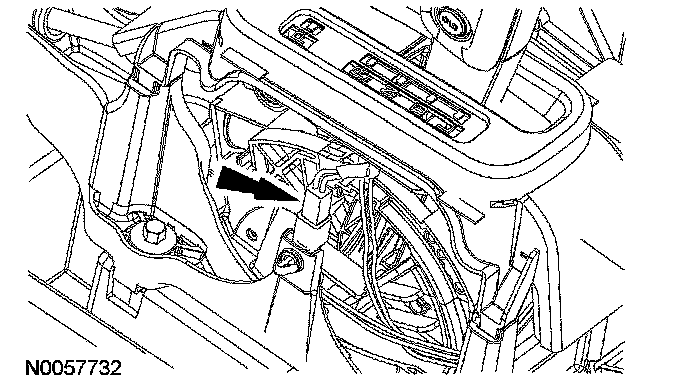

Disconnect the transmission control (TC) switch electrical connector.

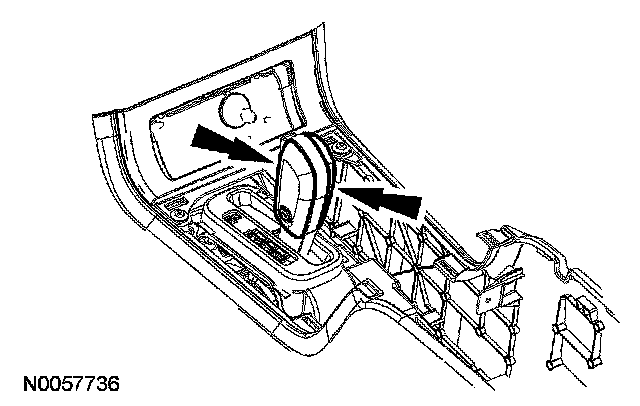

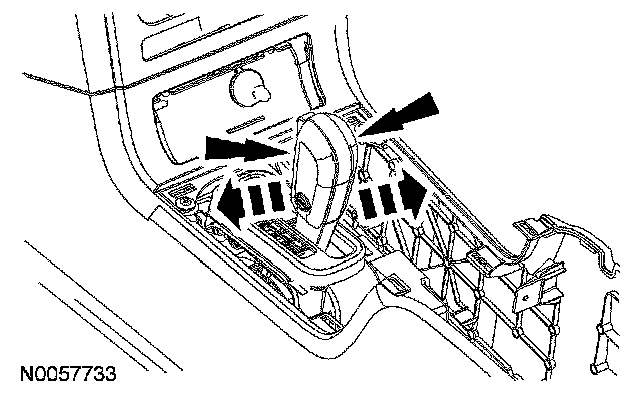

4. Remove and discard the selector lever knob trim covers by carefully prying out on the bottom front corners and then pry out on the top front corner and remove the covers.

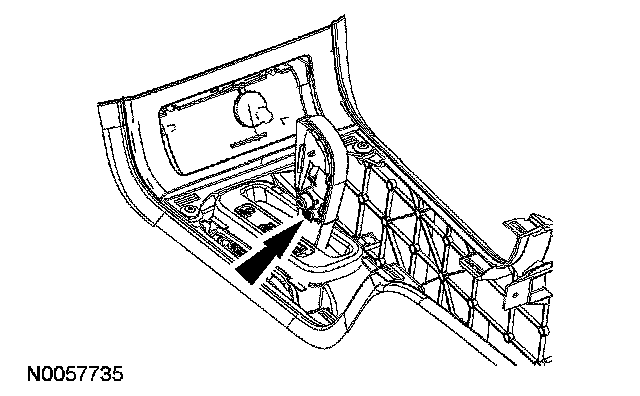

5. NOTE: Inspect the knob body for damage. Install a new knob body if necessary.

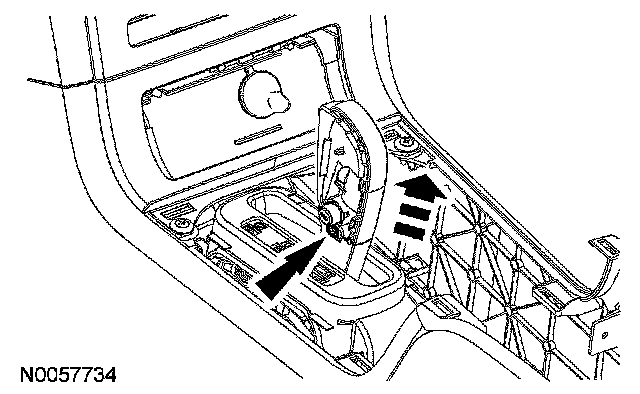

Remove and discard the 2 selector lever knob screws and remove the selector lever knob while routing the TC switch electrical connector harness out of the selector lever.





Installation

All vehicles
1. Route the TC switch electrical connector harness through the selector lever and install the shift knob and 2 new screws. Loosely install both screws before tightening.
^ Tighten to 2 Nm (18 inch lbs).





2. NOTE: Be sure that the shift knob bezel is correctly installed on the shift knob.

Install new selector lever knob trim covers.





3. NOTE: Center console side trim cover removed for clarity.

Connect the transmission control (TC) switch electrical connector.





4. Install the center console trim cover.





MKX

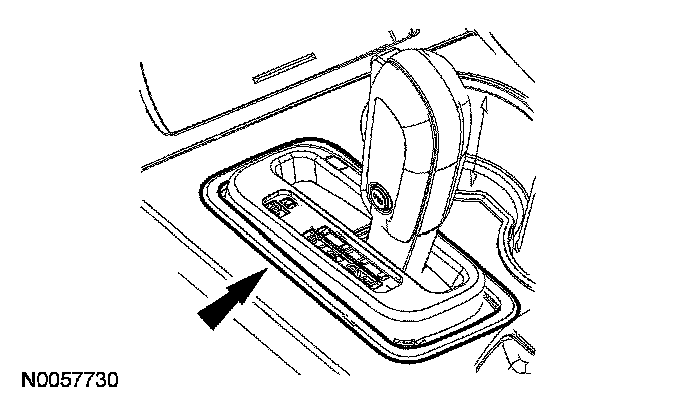

5. Install the selector lever trim ring.
