System Specifications

Cylinder Head
The cylinder head must not have depressions deeper than 0.0254 mm (0.001 inch) across a 38.1 mm (1.5 inch) square area, or scratches more than 0.0254 mm (0.001 inch).

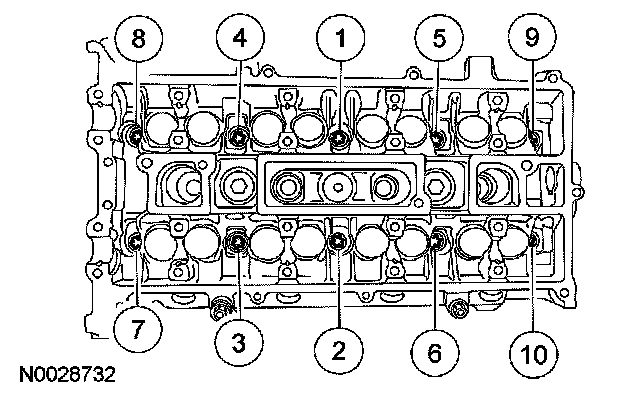

Cylinder Head Bolts





The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

Lubricate the bolts with clean engine oil prior to installation.

First pass 5 Nm (44 inch lbs.)
Second pass 15 Nm (11 ft. lbs.)
Third pass 45 Nm (33 ft. lbs.)
Fourth pass tighten 90°
Final pass tighten 90°

Intake manifold bolts 18 Nm (13 ft. lbs.)

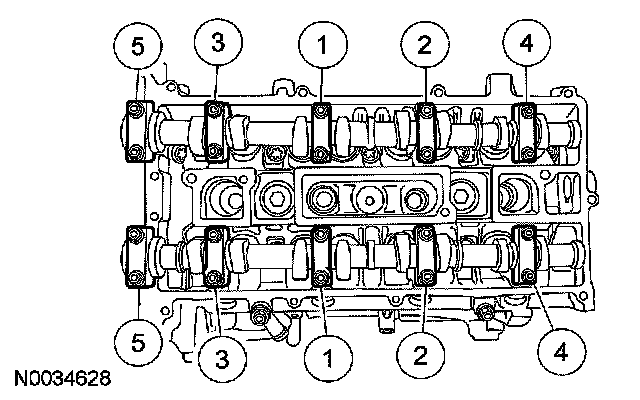

Camshaft Bearing Cap Bolts





First pass Tighten one turn at a time until finger tight
Second pass 7 Nm (62 inch lbs.)
Final pass 16 Nm (12 ft. lbs.)

Camshaft sprocket bolts 72 Nm (53 ft. lbs.)

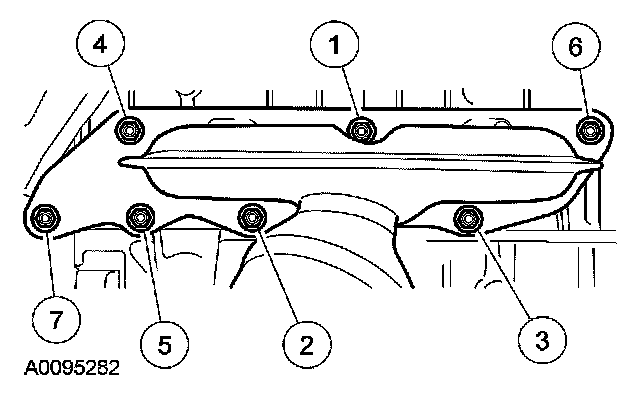

Exhaust Manifold Nuts





Discard the 7 exhaust manifold nuts.

First pass 47 Nm (35 ft. lbs.)
Final pass 47 Nm (35 ft. lbs.)
