Wheel Bearing and Wheel Hub - Exploded View

Wheel Bearing and Wheel Hub - Exploded View

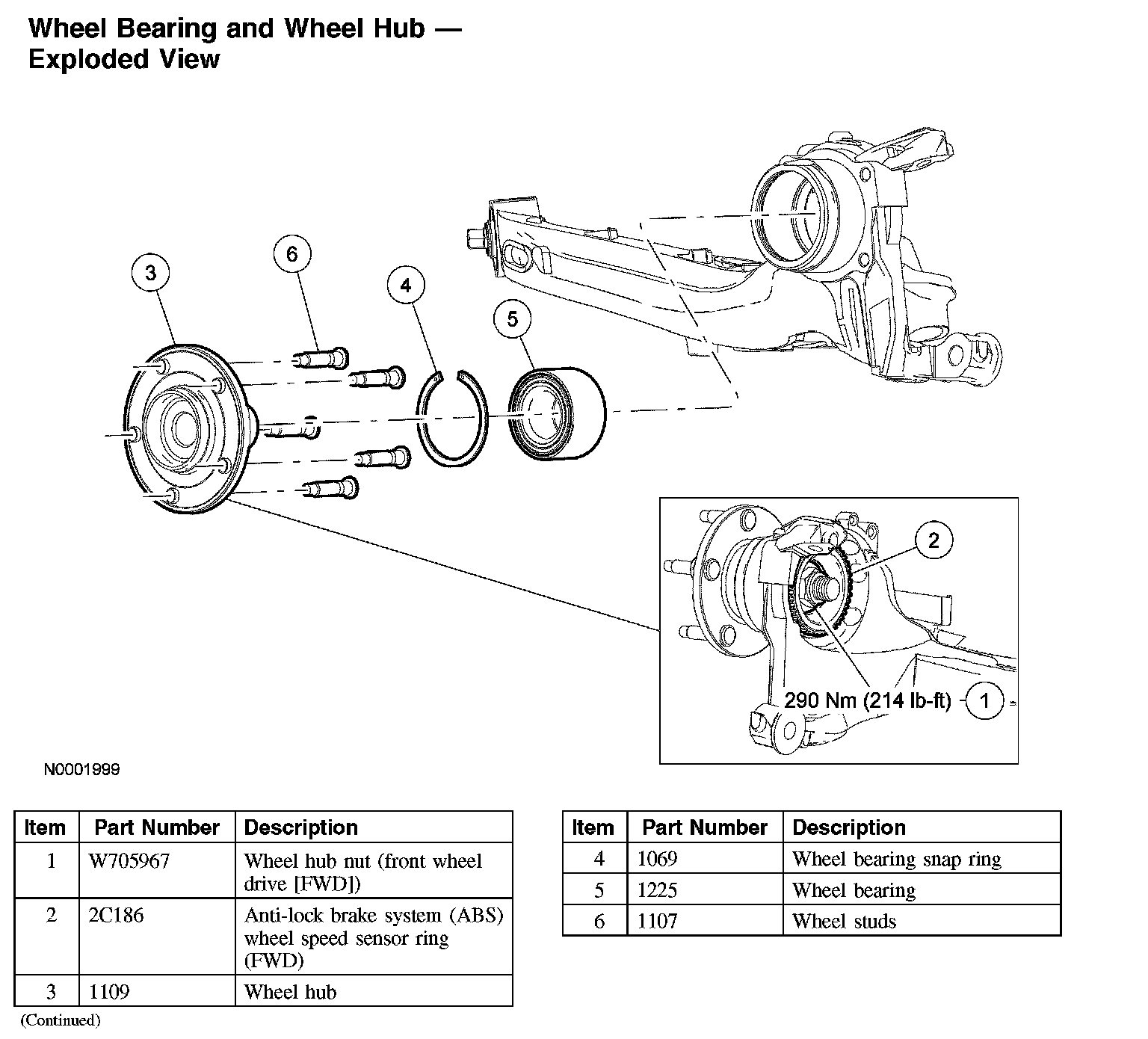

Wheel Bearing And Wheel Hub - Exploded View:





Note: Fastener replacement may be required. Refer to Component Service and Repair for further information.
