Passenger Side
REGISTER - PASSENGER SIDE
Removal and Installation

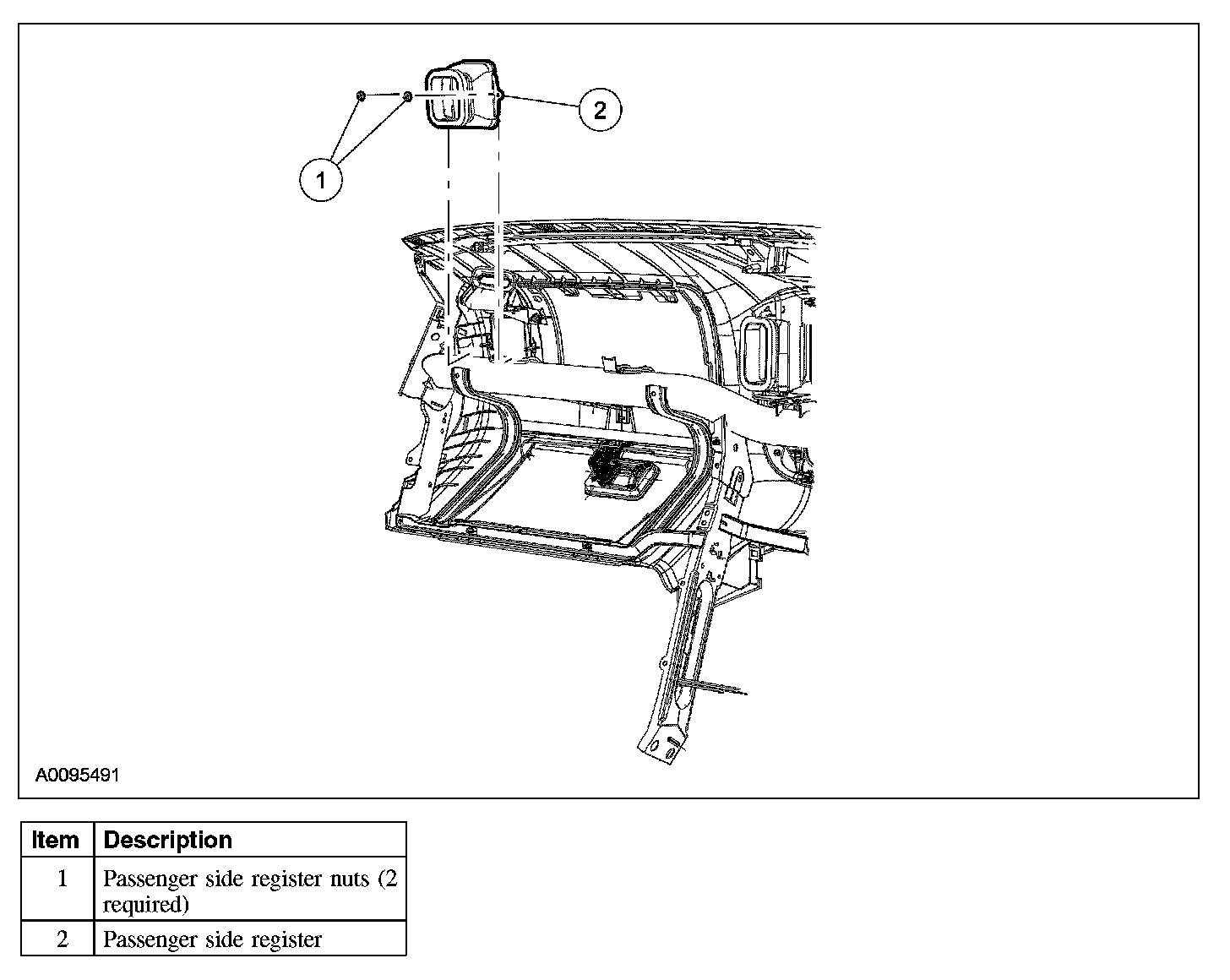

1. Remove the center register duct.
2. Remove the 2 passenger side register nuts and the passenger side register.
3. To install, reverse the removal procedure.
Removal and Installation
1. Remove the center register duct.
2. Remove the 2 passenger side register nuts and the passenger side register.
3. To install, reverse the removal procedure.
