Home >> Ford >> 2007 >> Escape 2WD L4-2.3L VIN Z >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Impact Sensor >> Locations >> Side Impact Sensor, Driver 1

Side Impact Sensor, Driver 1

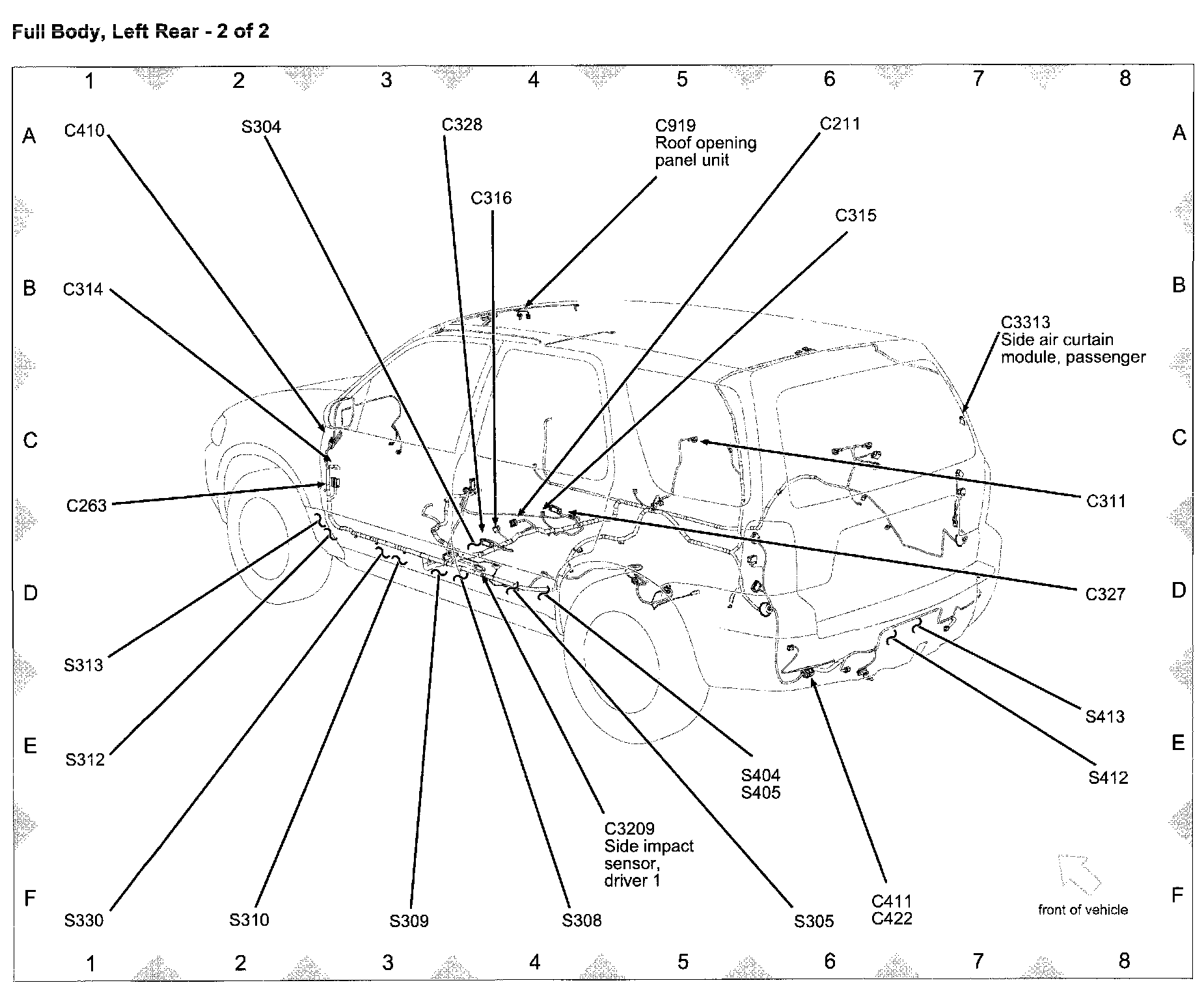

View 151-16 (Full Body, Left Rear - (2 Of 2)):
