Test C: Transmission Control (TC) Switch Does Not Operate Correctly
Test C: Transmission Control (TC) Switch Does Not Operate Correctly
PINPOINT TEST C: THE TRANSMISSION CONTROL SWITCH IS INOPERATIVE

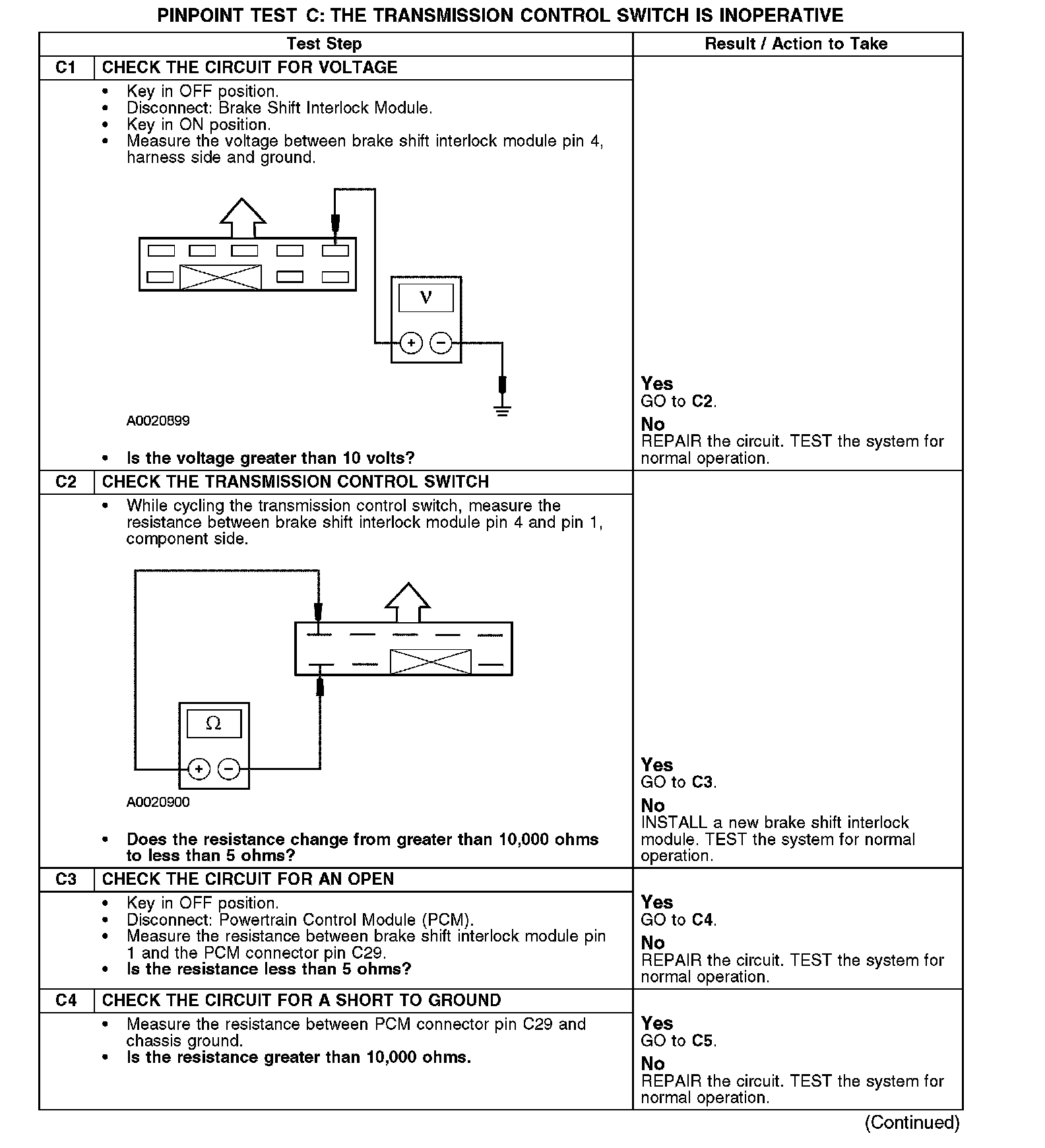

C1-C4:

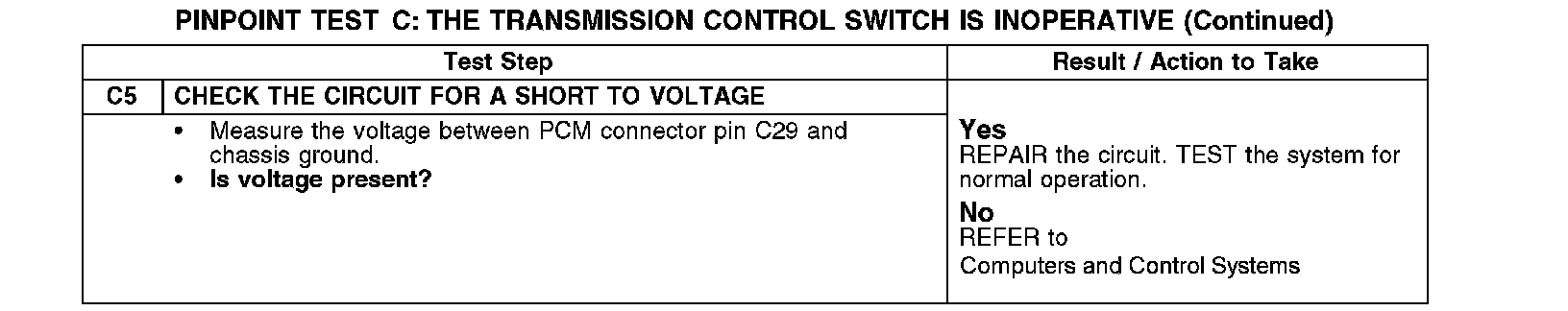

C5:
