Output Shaft Speed (OSS) Sensor
Output Shaft Speed (OSS) SensorMaterial:
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

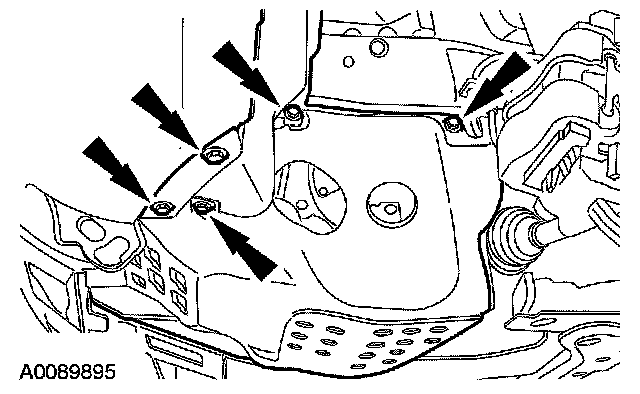

2. Remove the 7 retainers and the LH splash shield.
^ To install, tighten to 10 Nm (89 inch lbs.).

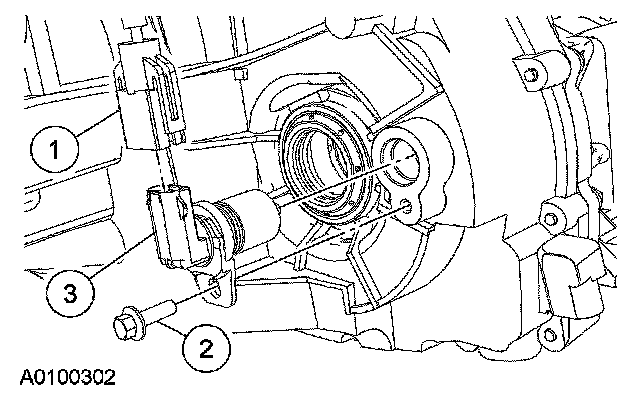

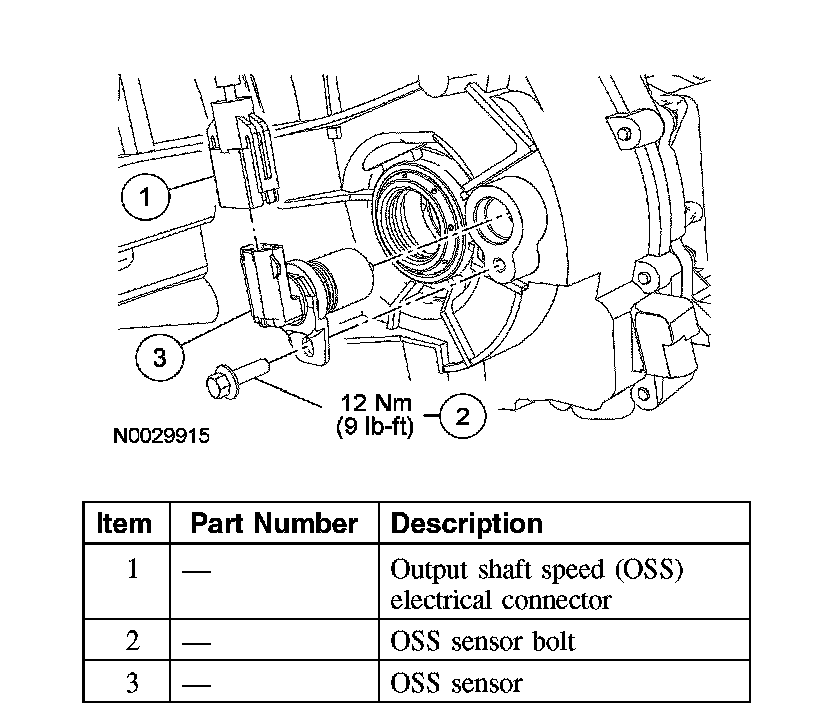

3. Remove the output shaft speed (OSS) sensor
1. Disconnect the OSS electrical connector.
2. Remove the OSS sensor bolt.
3. Remove the OSS sensor.
^ To install, tighten to 12 Nm (9 ft. lbs.).
4. NOTE: When installing the sensor, lubricate the O-ring seal with clean transmission fluid.
Inspect the O-ring seal for nicks or cuts. Install a new O-ring seal as necessary.
5. To install, reverse the removal procedure.
