Transmission Insulator and Retainer - Exploded View
Transmission Insulator and Retainer - Exploded View
Transmission Insulator and Retainer - Exploded View

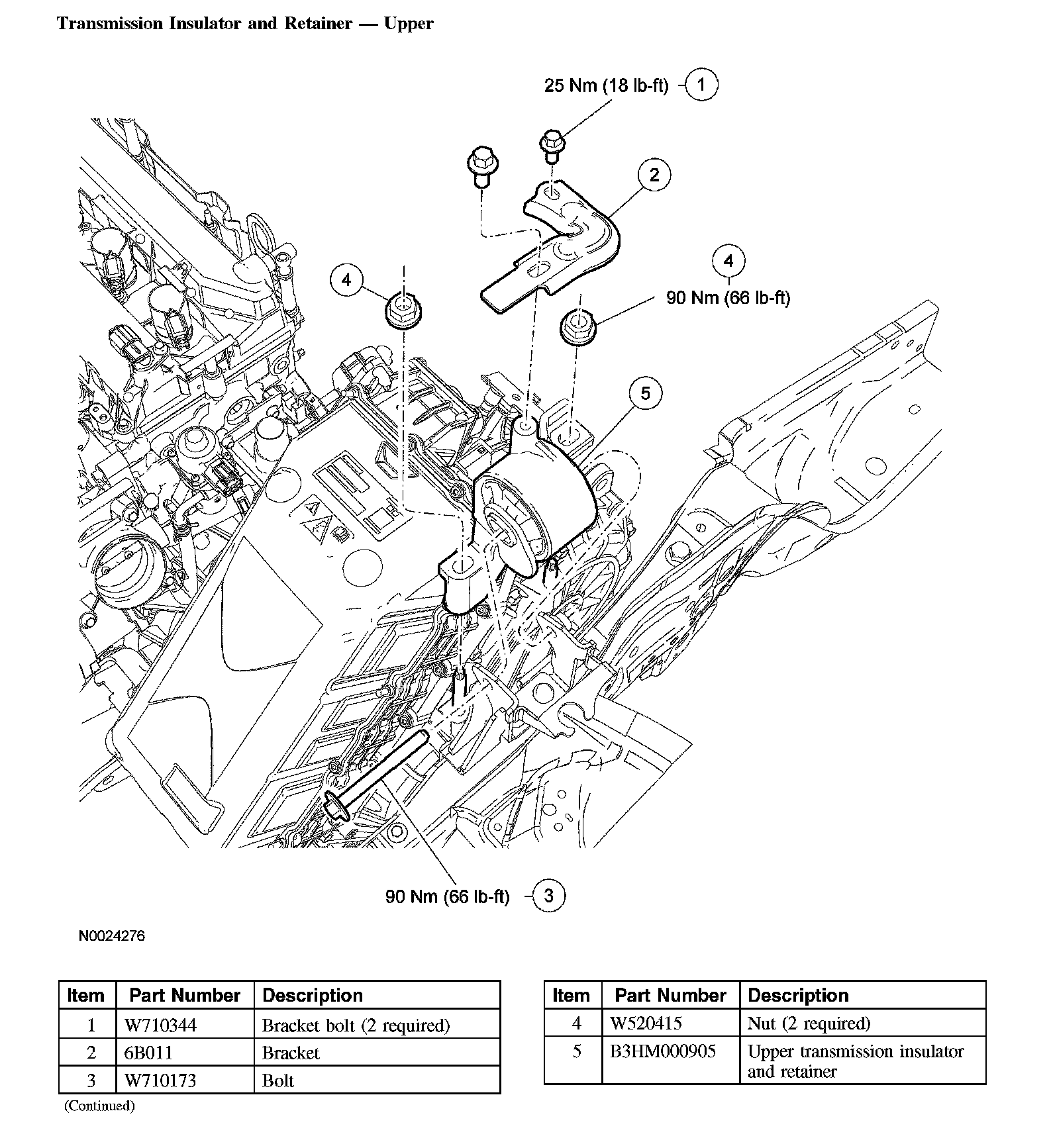

Transmission Insulator and Retainer - Upper:

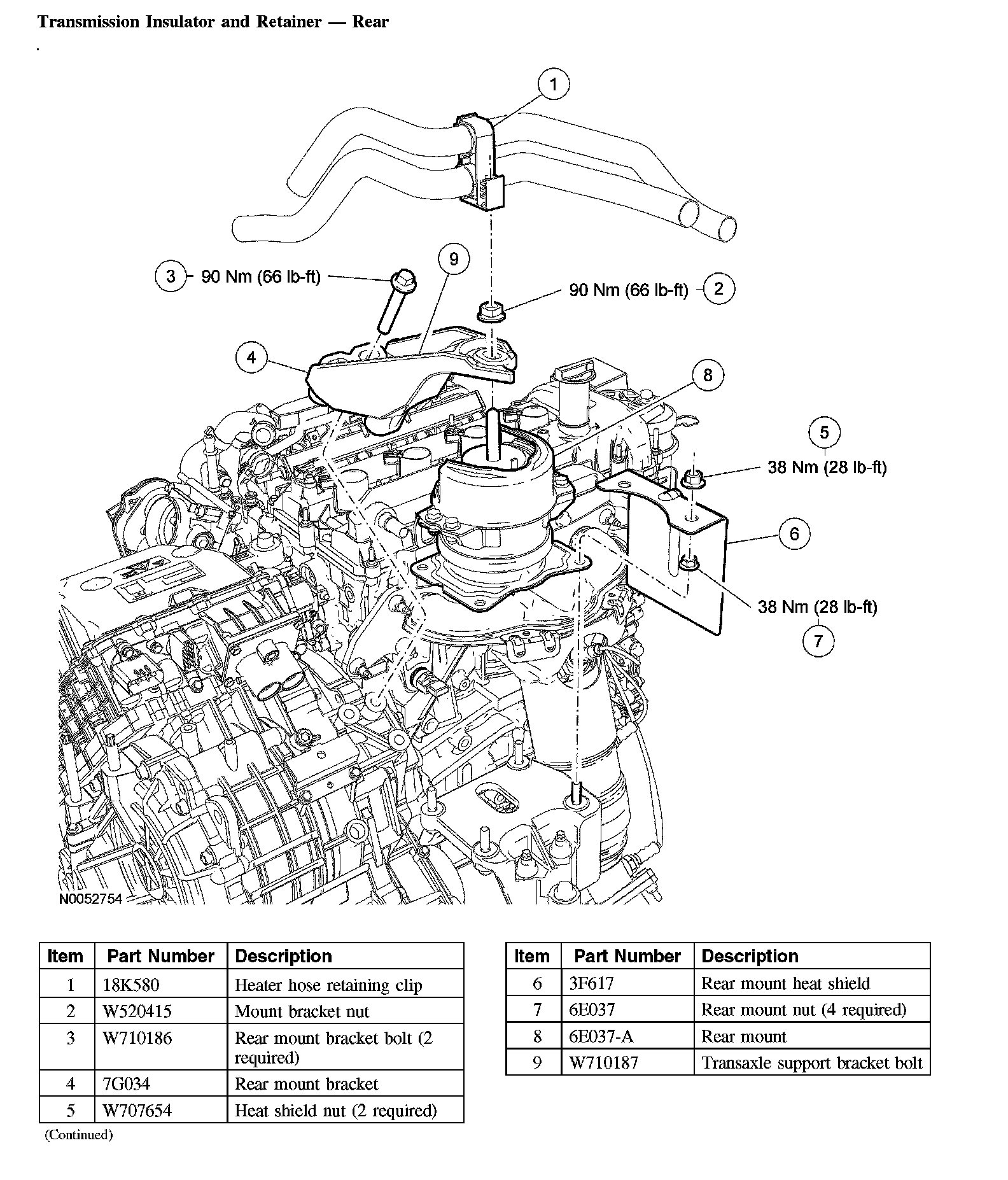

Transmission Insulator and Retainer - Rear:
Transmission Insulator and Retainer - Lower:
