Ford
>>
2007
>>
Escape 4WD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Thermostat, Engine Cooling
Thermostat, Engine Cooling

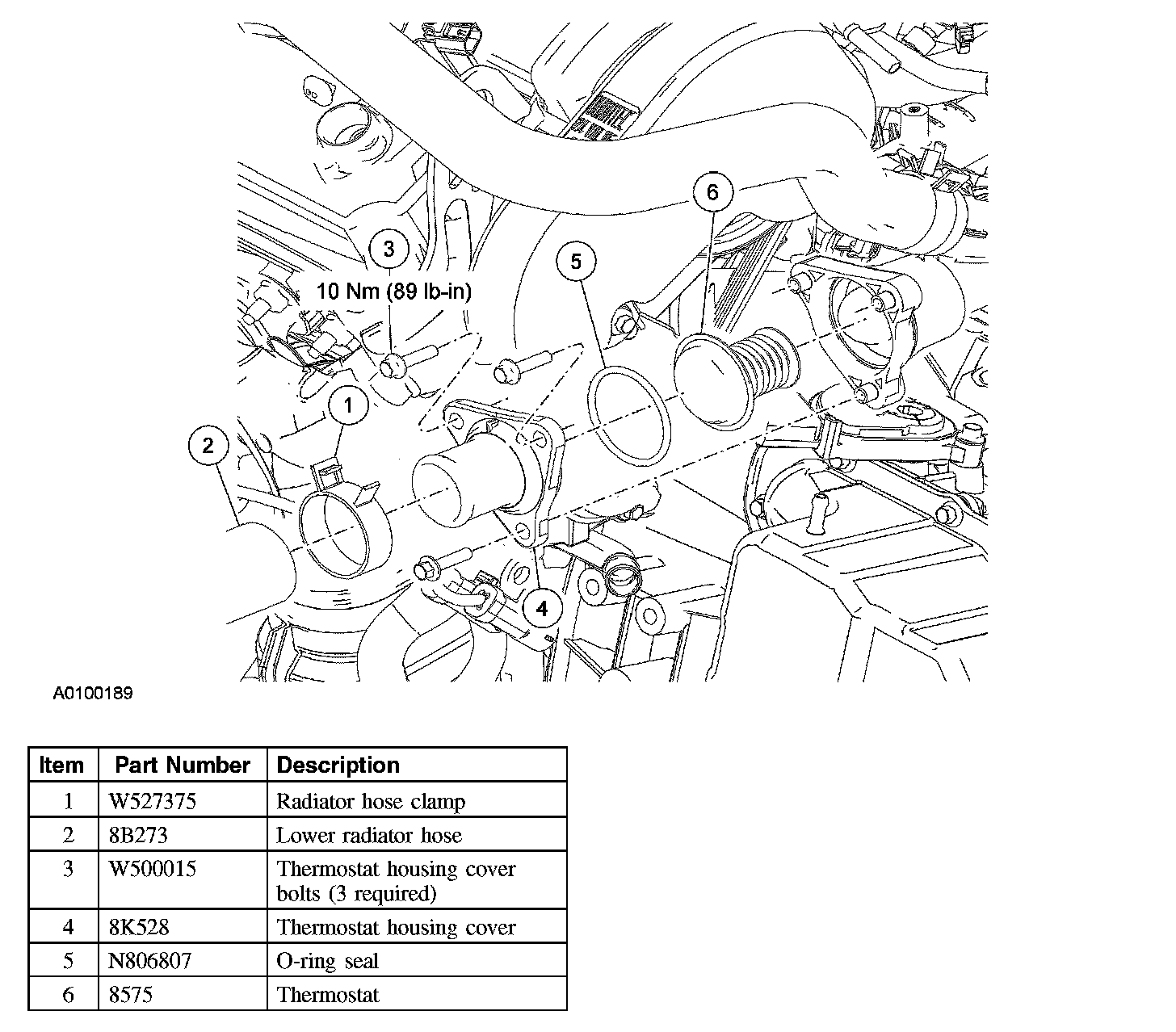

Thermostat - 3.0L (4V)
Thermostat - 3.0L (4V):

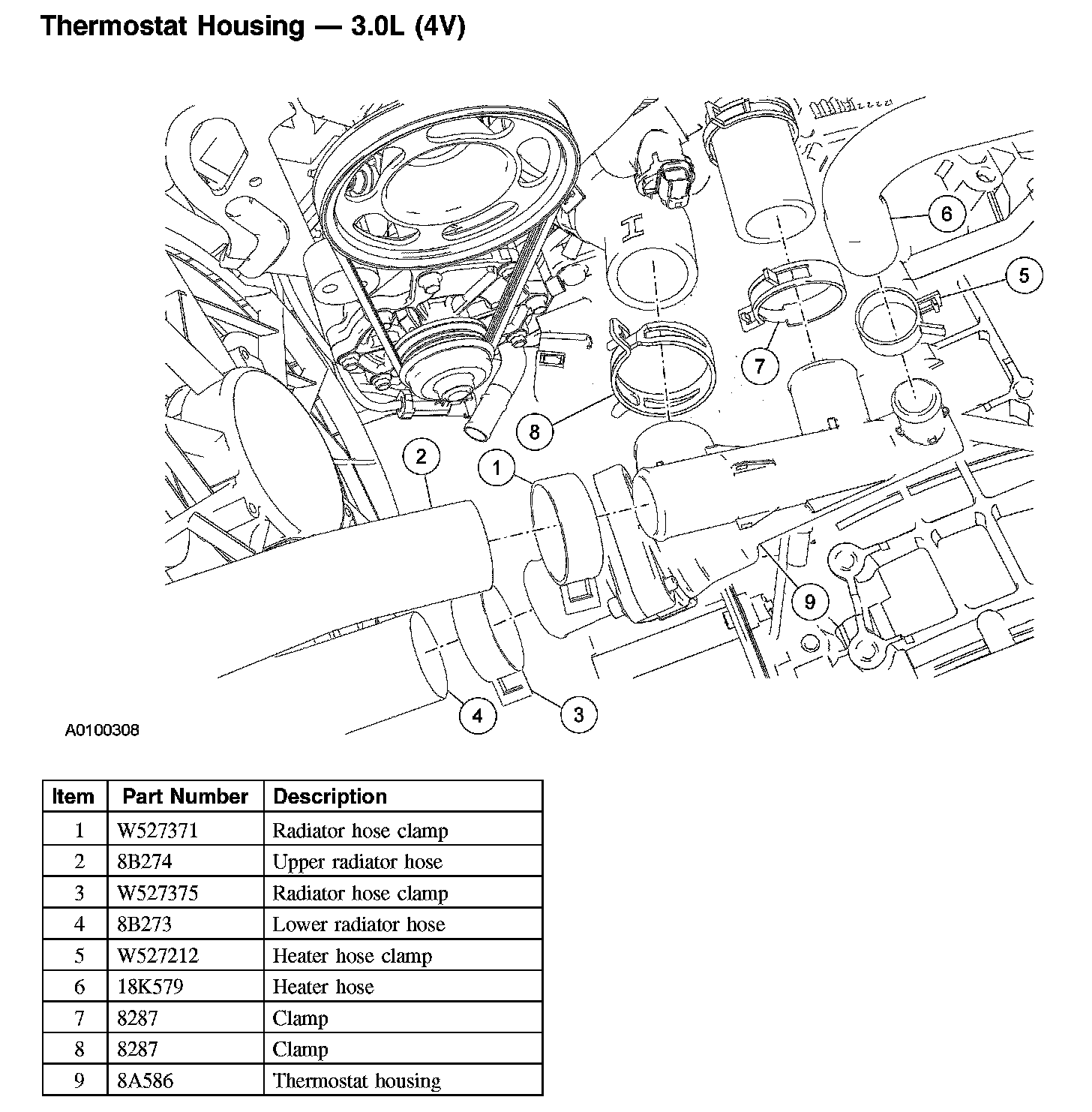

Thermostat Housing
- 3.0L (4V)
Thermostat Housing - 3.0L (4V):
