Battery Junction Box
Battery Junction Box

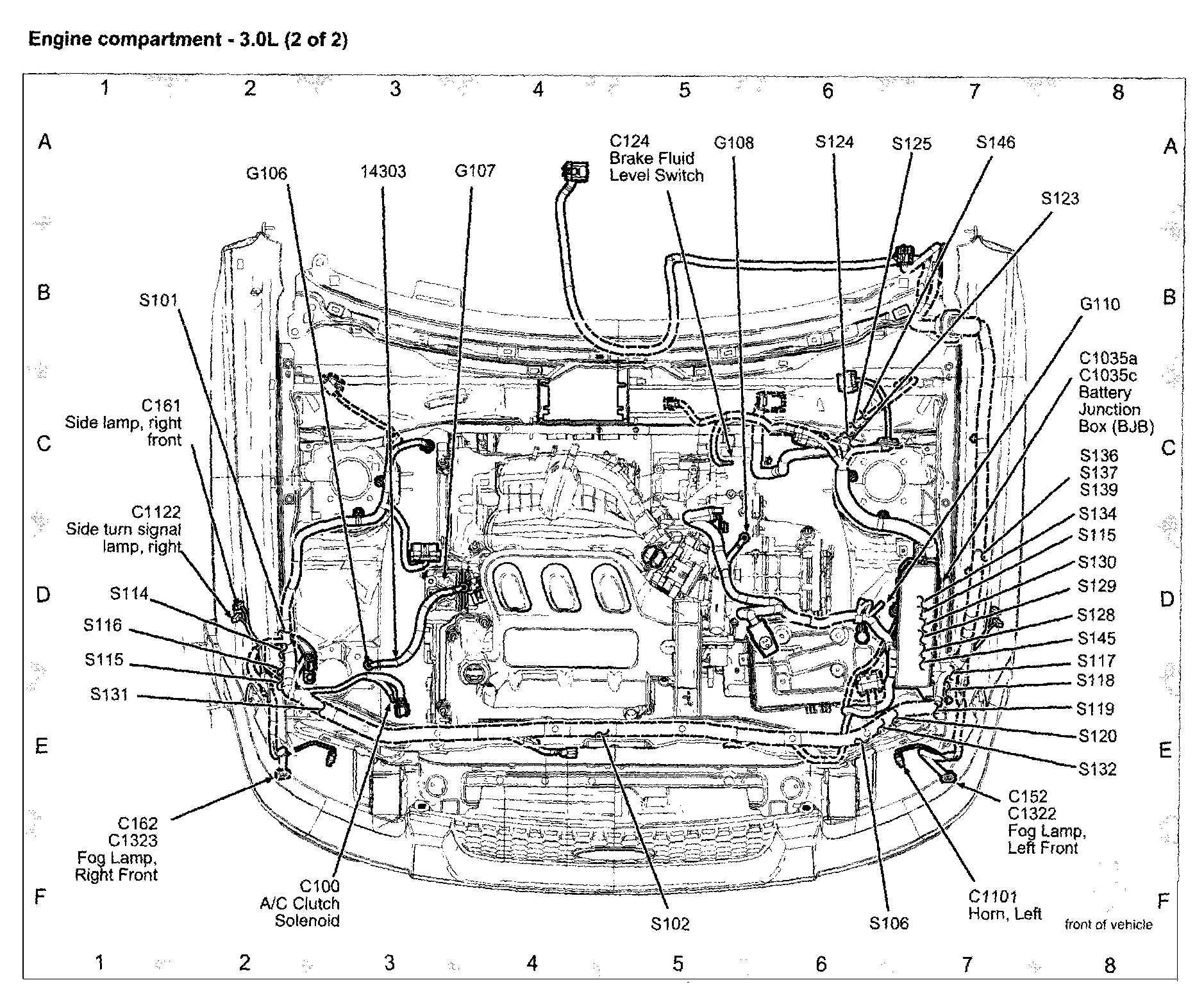

View 151-2 (Engine Compartment - 3.0L (2 Of 2):
View 151-5 (3.0L Engine, Front):
