Battery Cable: Service and Repair

BATTERY CABLES

Part 1:

Part 2:

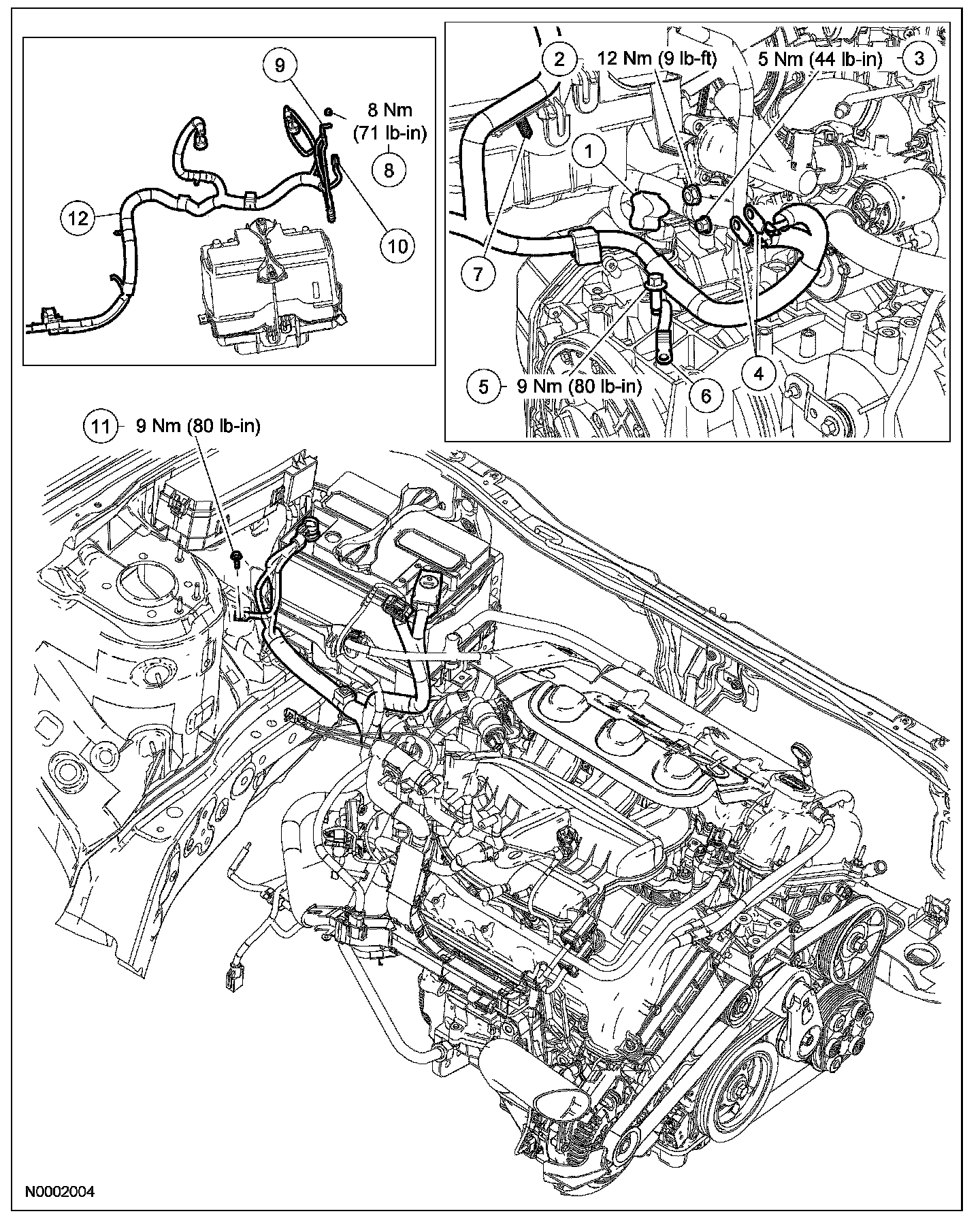

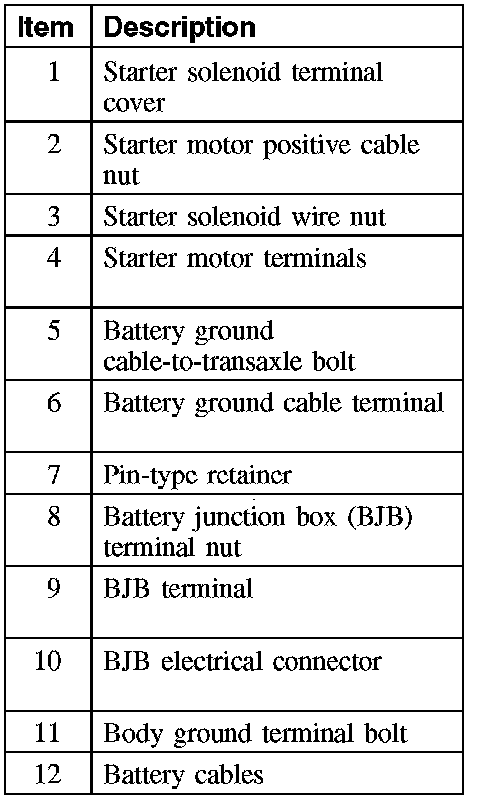

Removal and Installation
1. Disconnect the battery.
2. Remove the air cleaner assembly.
3. Remove the starter solenoid terminal cover.
4. Remove the starter motor positive cable nut.
- To install, tighten to 12 Nm (9 lb-ft).

5. Remove the starter solenoid wire nut.
- To install, tighten to 5 Nm (44 lb-in).

6. Position the starter motor terminals aside.
7. Remove the battery ground cable-to-transaxle bolt.
- To install, tighten to 9 Nm (80 lb-in).

8. Position the battery ground cable aside.
9. Disconnect the retainers fastening the battery cables to the battery tray.
10. Open the BJB cover and remove the BJB terminal nut.
- To install, tighten to 8 Nm (71 lb-in).

11. Position the BJB terminal aside.
12. Disconnect the BJB electrical connector.
13. Remove the body ground terminal bolt from the left fenderwell.
- To install, tighten to 9 Nm (80 lb-in).

14. Release the battery cable locators and remove the battery cables from the vehicle.
15. To install, reverse the removal procedure.
