Heater Core

HEATER CORE






Removal and Installation

NOTE: If a heater core leak is suspected, the heater core must be leak tested before it is removed from the vehicle. Component Tests and General Diagnostics

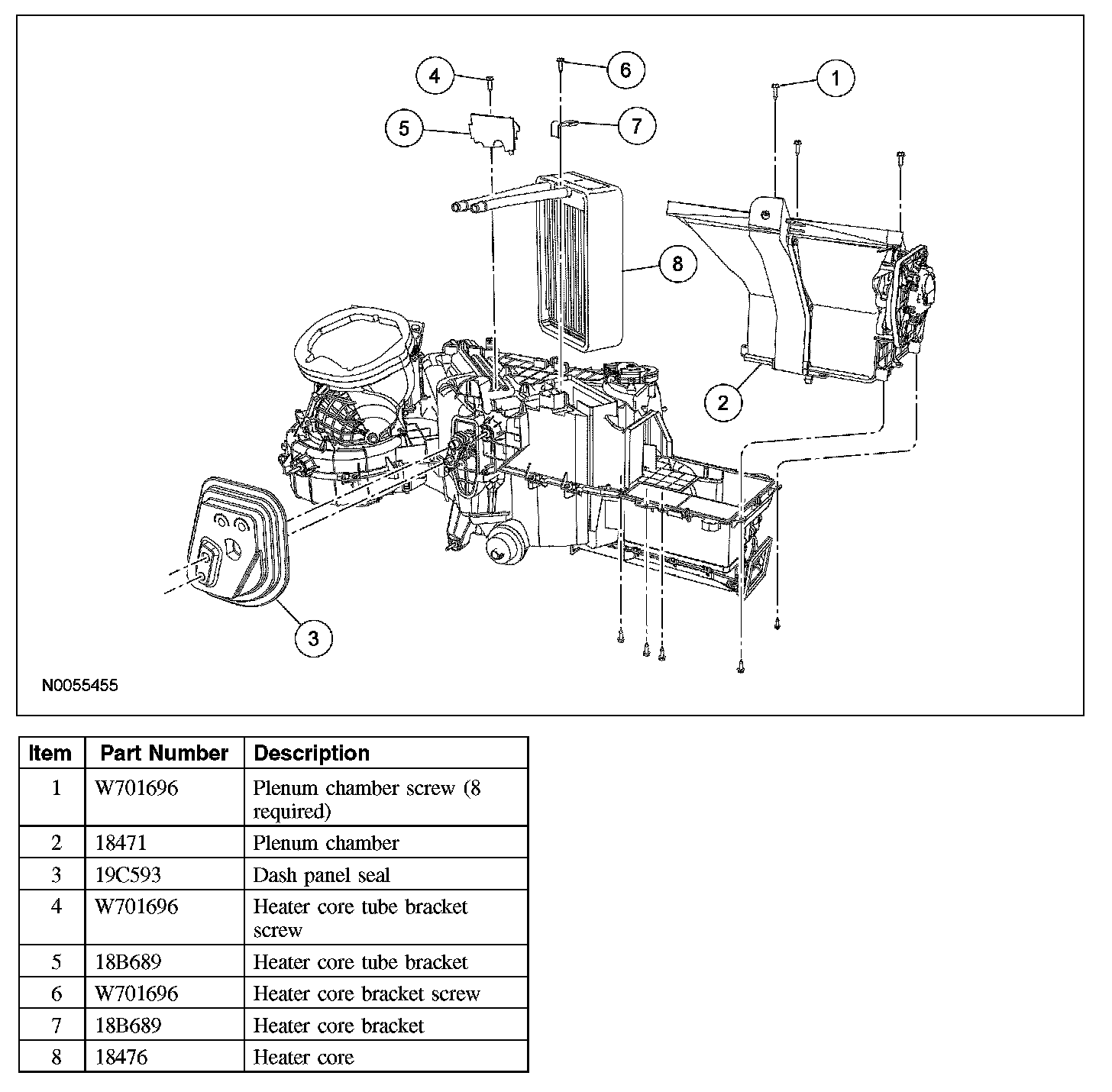

1. Remove the heater core and evaporator core housing. Housing Assembly HVAC
2. Remove the 8 plenum chamber screws.

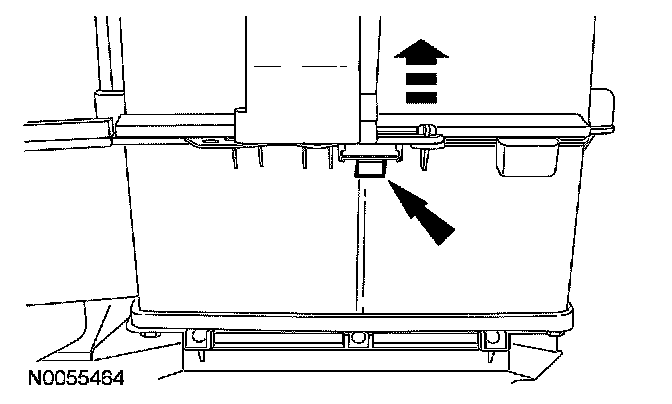

3. Release the plenum chamber clip and position the plenum chamber aside.
4. Remove 2 heater core fitting clips and the dash panel seal.
5. Remove the heater core tube bracket screw and the heater core tube bracket.
6. Remove the heater core bracket screw and the heater core bracket.
7. Remove the heater core.
8. To install, reverse the removal procedure.
