Output Shaft Ring Gear and Hub Shaft Assembly

Output Shaft Ring Gear and Hub Shaft Assembly

Disassembly





1. Inspect the output shaft ring gear and hub shaft assembly for damage. If repair is necessary, use this procedure.

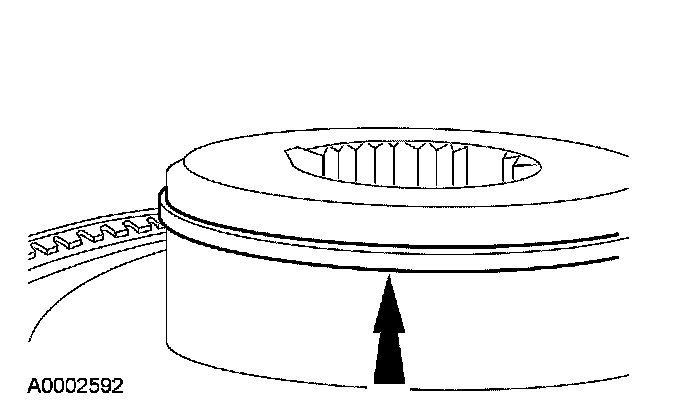

2. Remove the seal.





3. Remove the output shaft ring gear from the output shaft hub.
1 Remove the retaining ring.
2 Remove the output shaft ring gear.





Assembly
1. Install the output shaft ring gear onto the output shaft hub.
1 Install the output shaft ring gear.
2 Install the retaining ring.





2. Install the seal.
