Parking Assist Control Module: Service and Repair

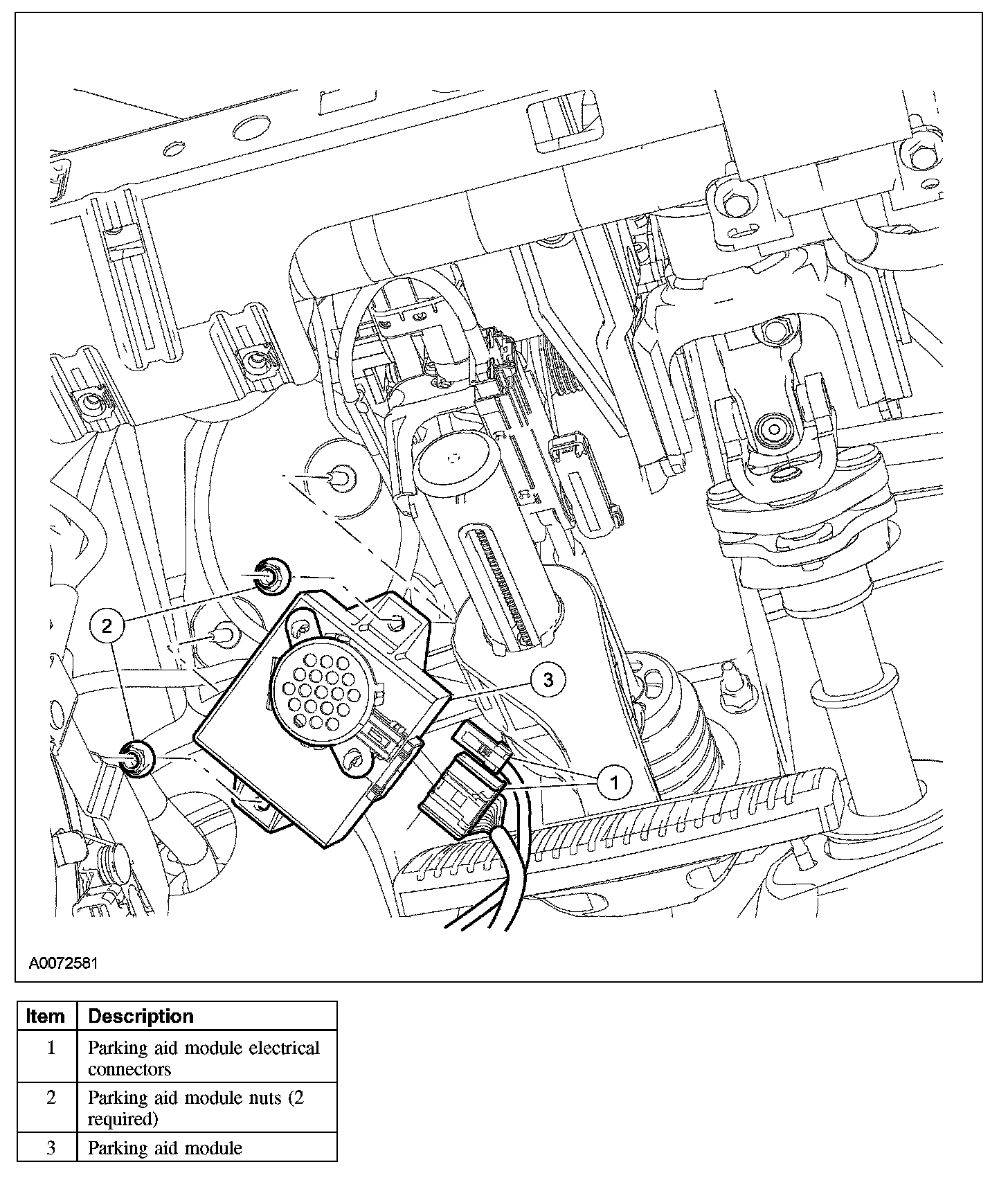

PARKING AID MODULE







Removal and Installation
1. Disconnect the parking aid module electrical connectors.
2. Remove the 2 nuts and the parking aid module.
3. To install, reverse the removal procedure.
