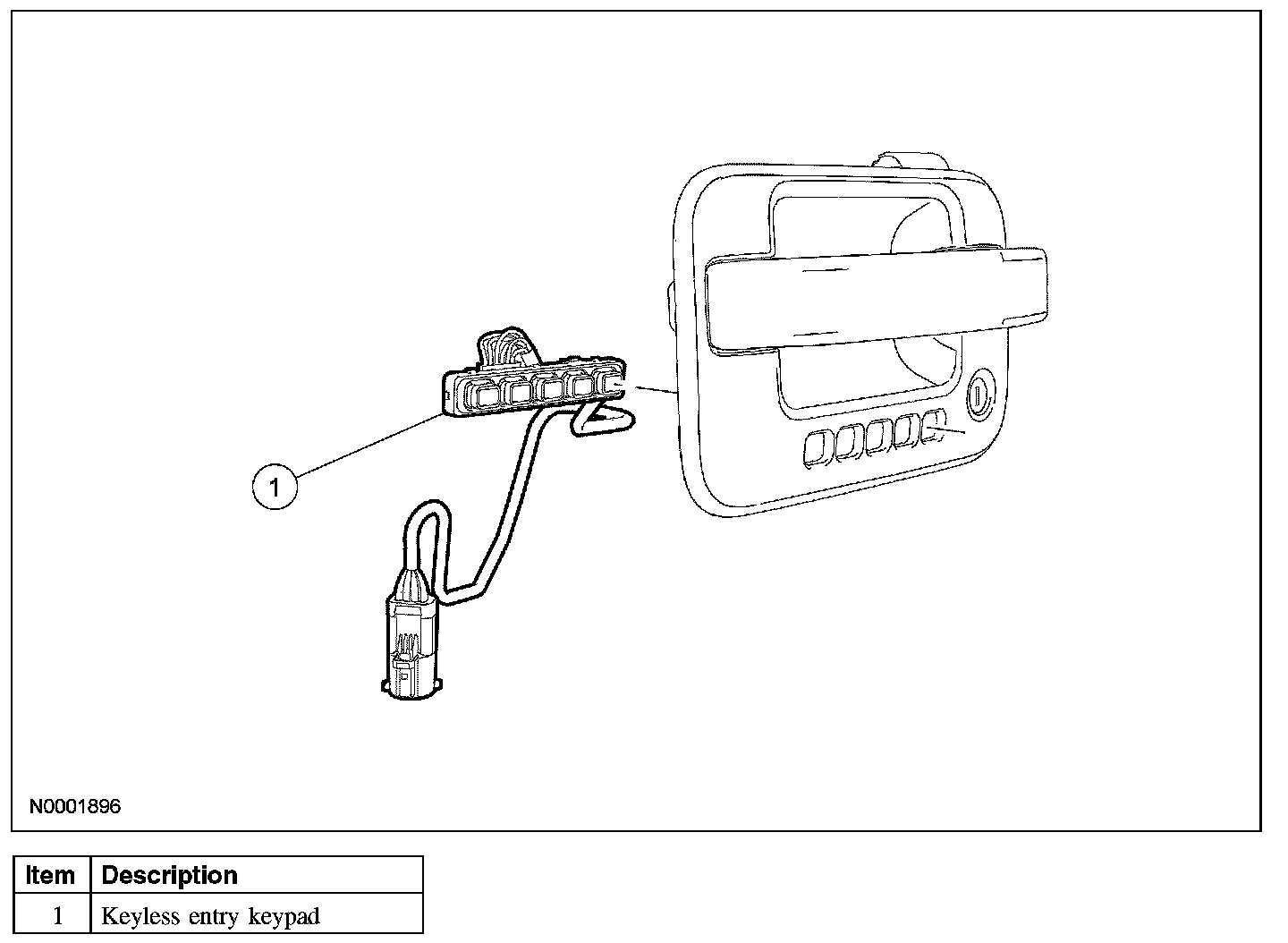

KEYLESS ENTRY
KEYPAD
Removal and Installation
1.
Remove the exterior front door handle.
2.
Release the locking tabs and remove the
keyless entry
keypad.
3.
To install, reverse the removal procedure.
