Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2007
>>
F 150 4WD V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Brake Signal
>>
Locations
Brake Signal: Locations

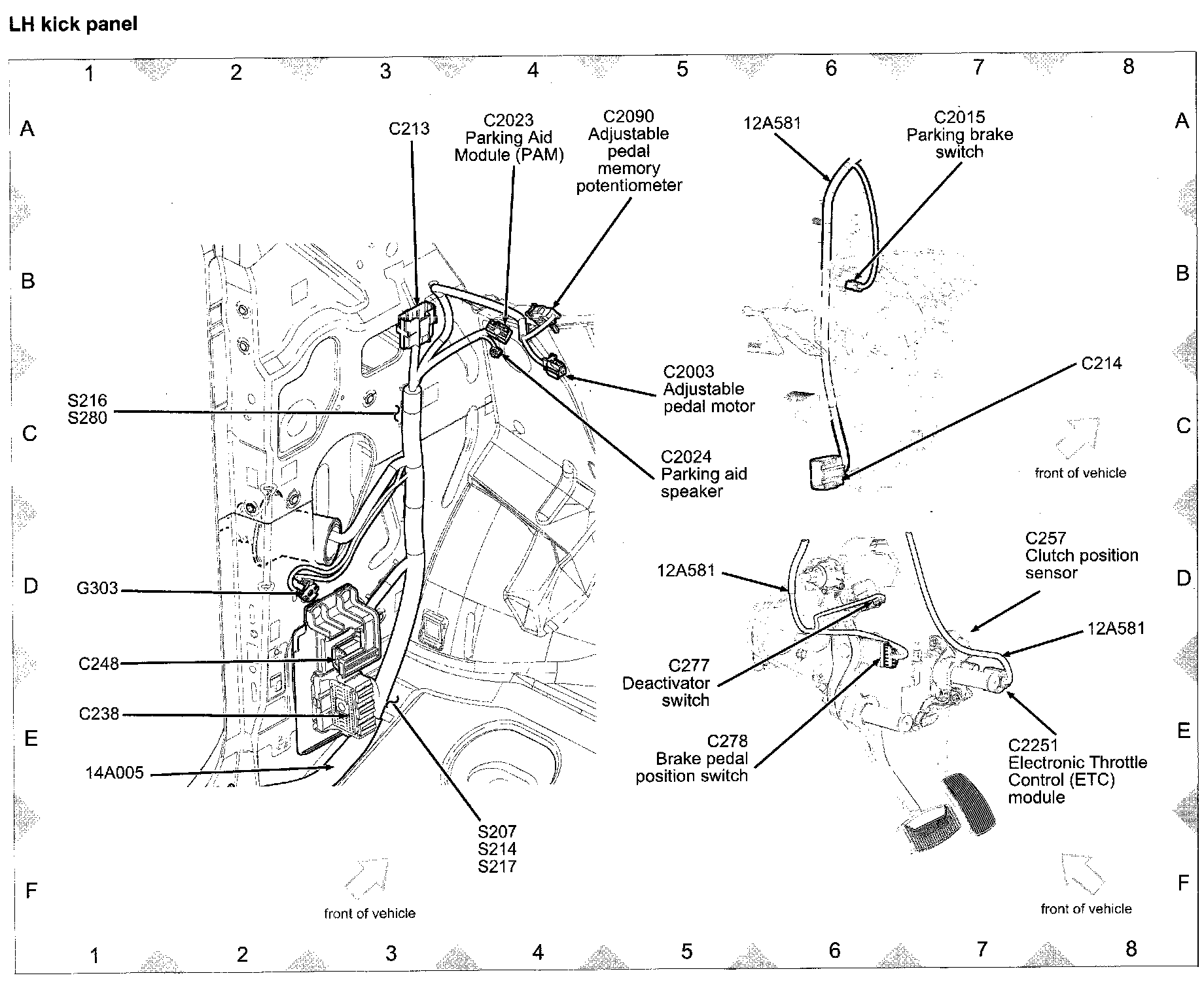

View 151-15 (LH Kick Panel):
