Engine Lubrication

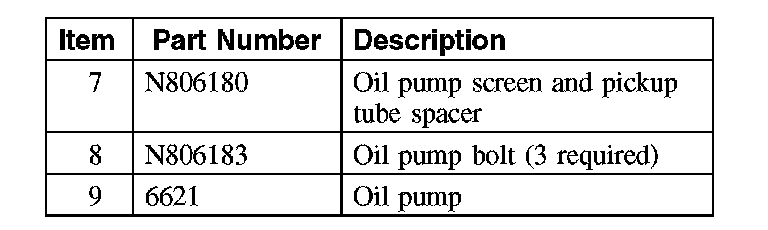

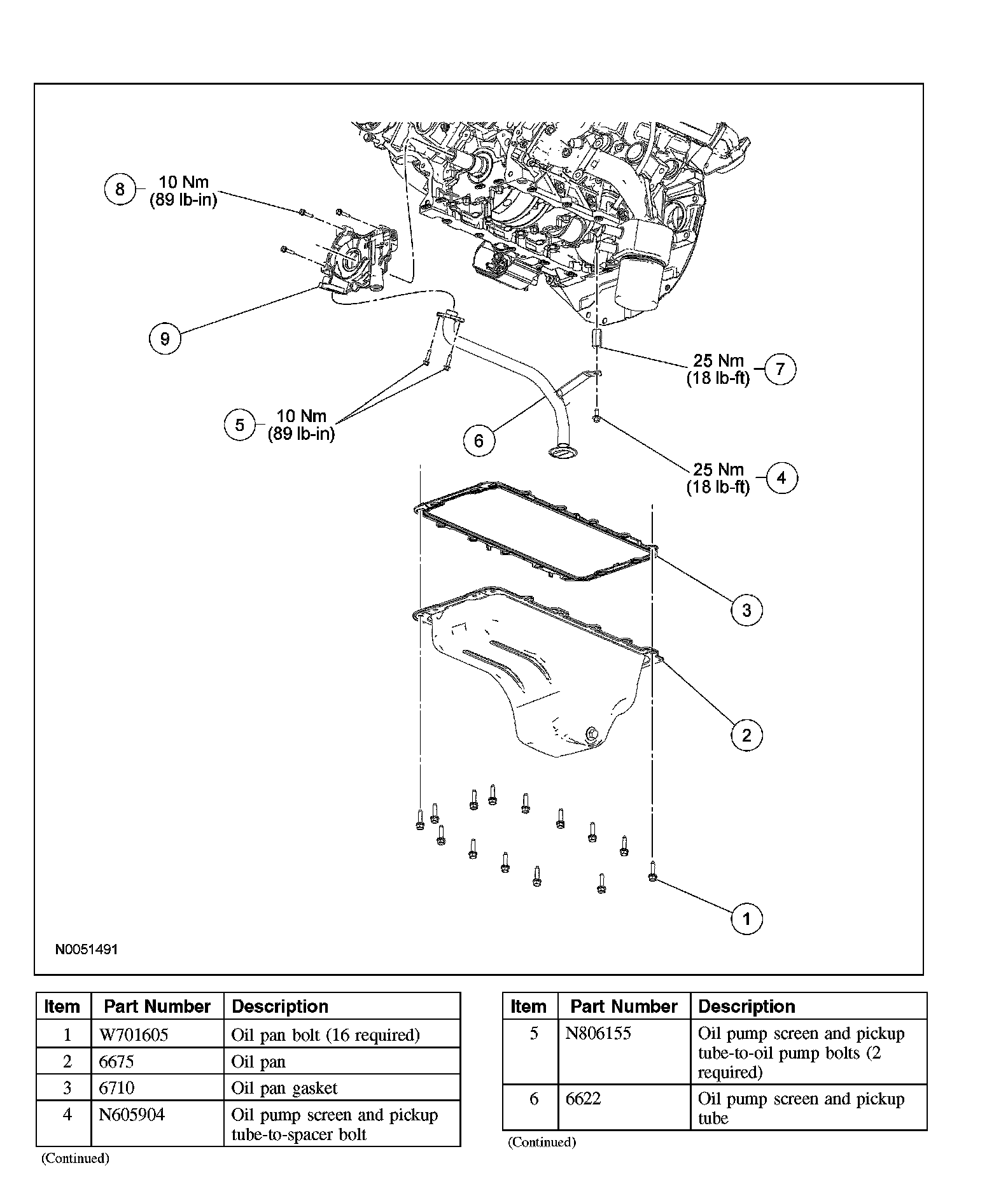

Engine Lubrication Components - Exploded View








1. For additional information, refer to the procedures in this information.
