Exhaust System

Exhaust System - Exploded View

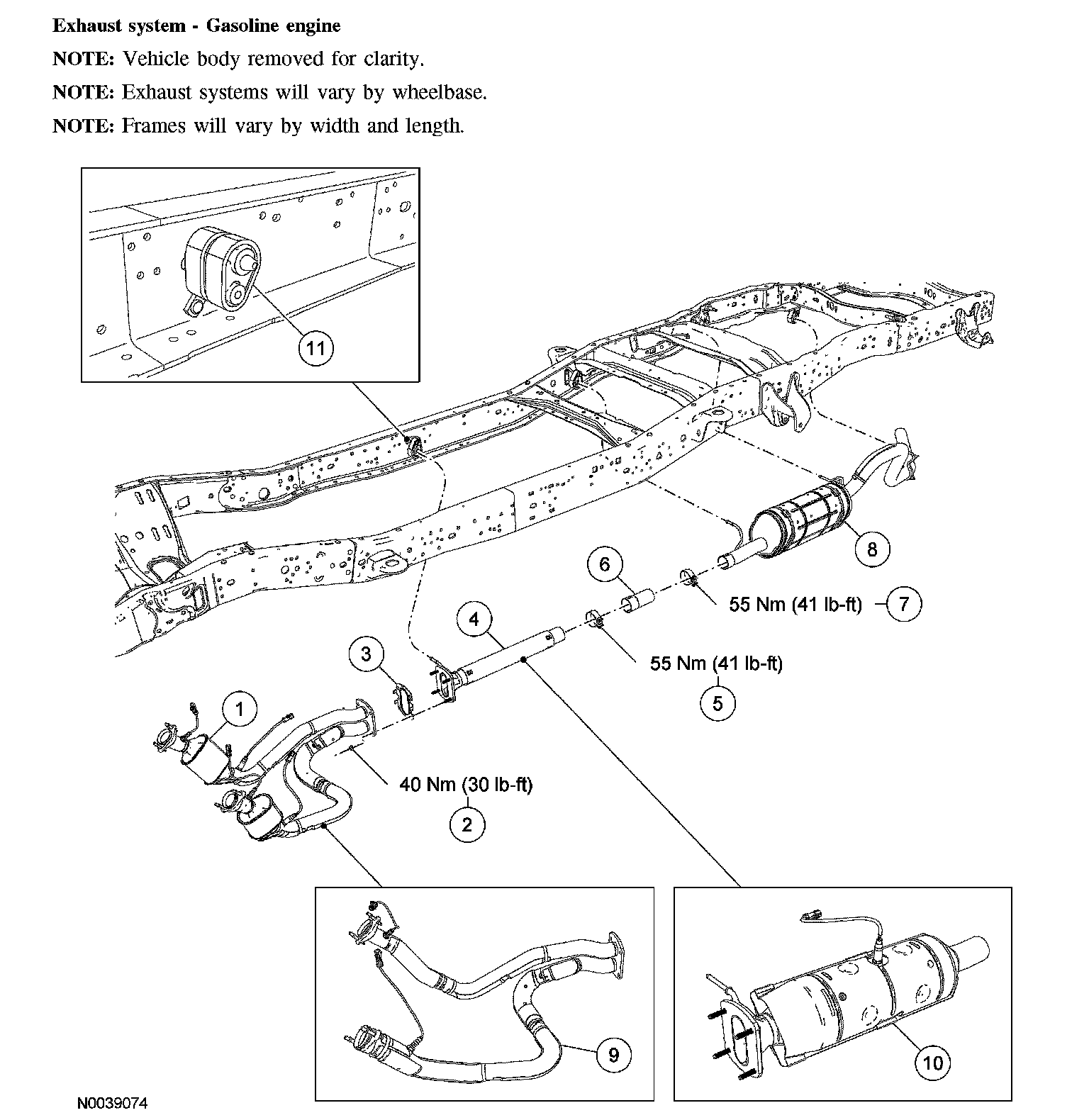

Exhaust system - Gasoline engine (Part 1):

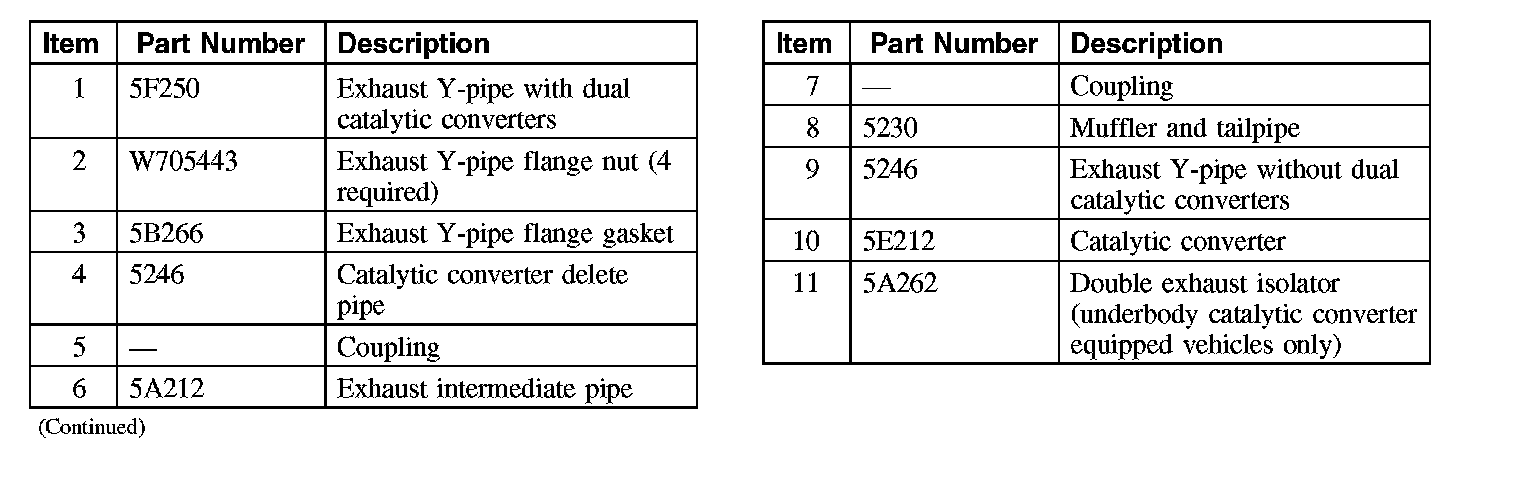

Exhaust system - Gasoline engine (Part 2):
