Manual Transmission/Transaxle

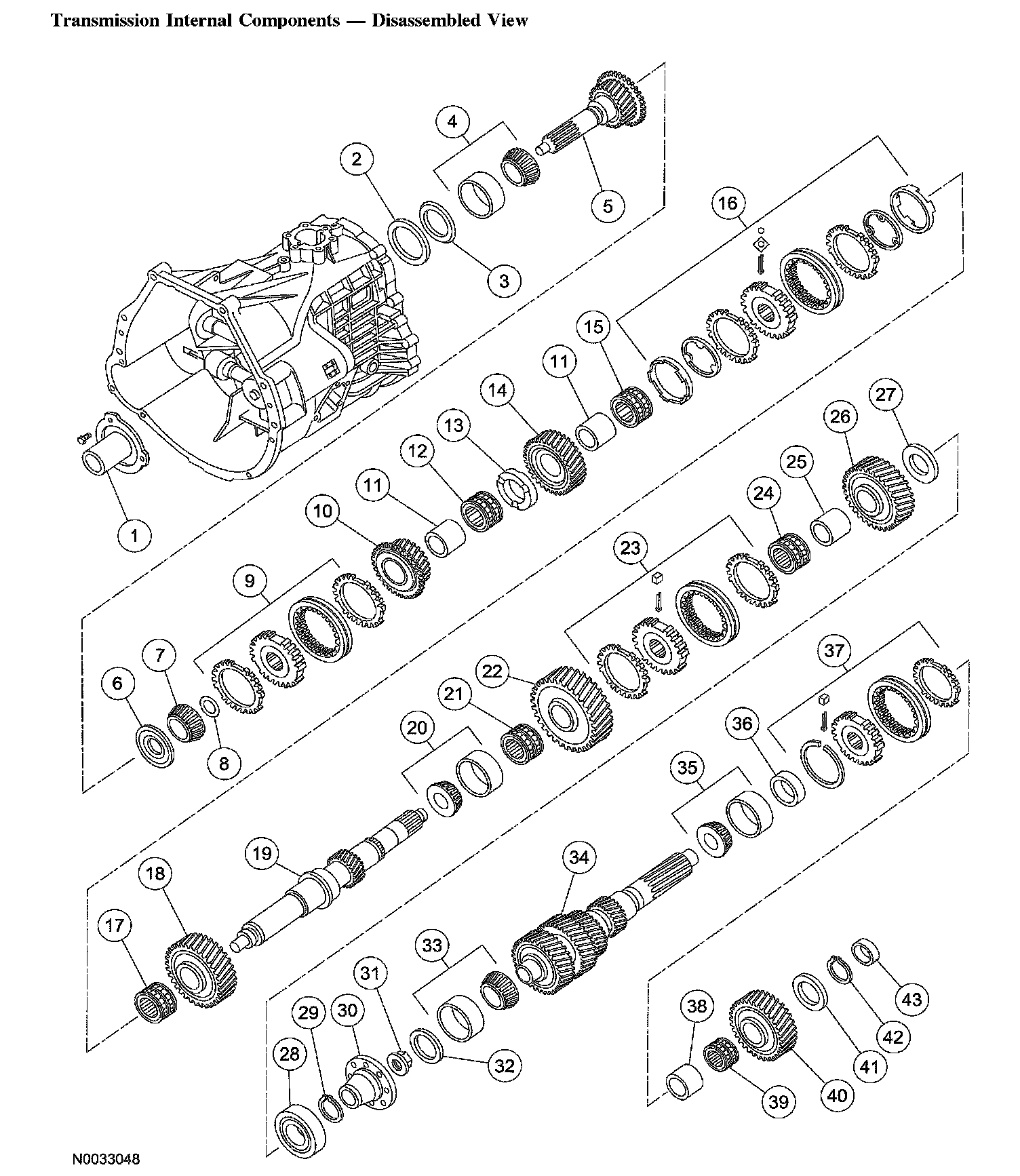

Transmission Internal Components - Disassembled View (Part 1):

Transmission Internal Components - Disassembled View (Part 2):

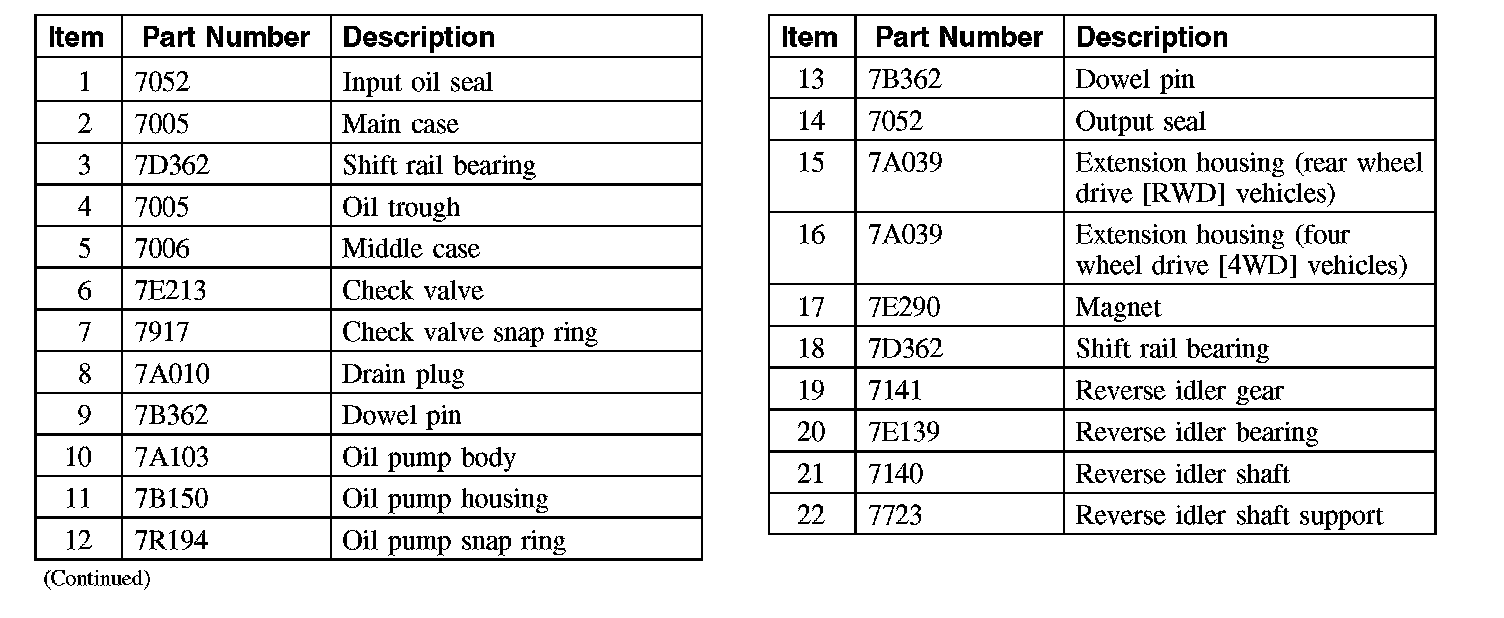

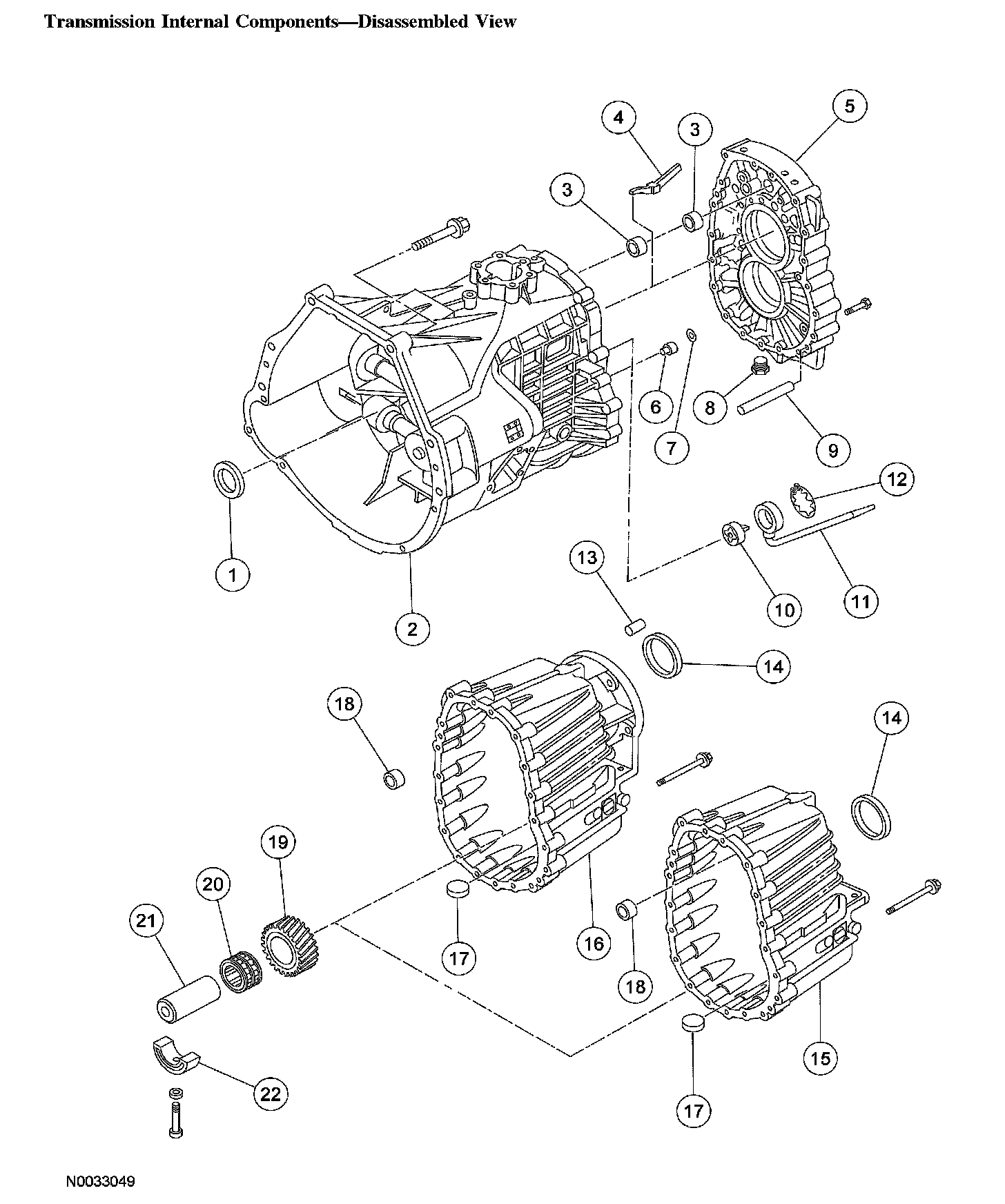

Transmission Internal Components - Disassembled View (Part 1):

Transmission Internal Components - Disassembled View (Part 2):

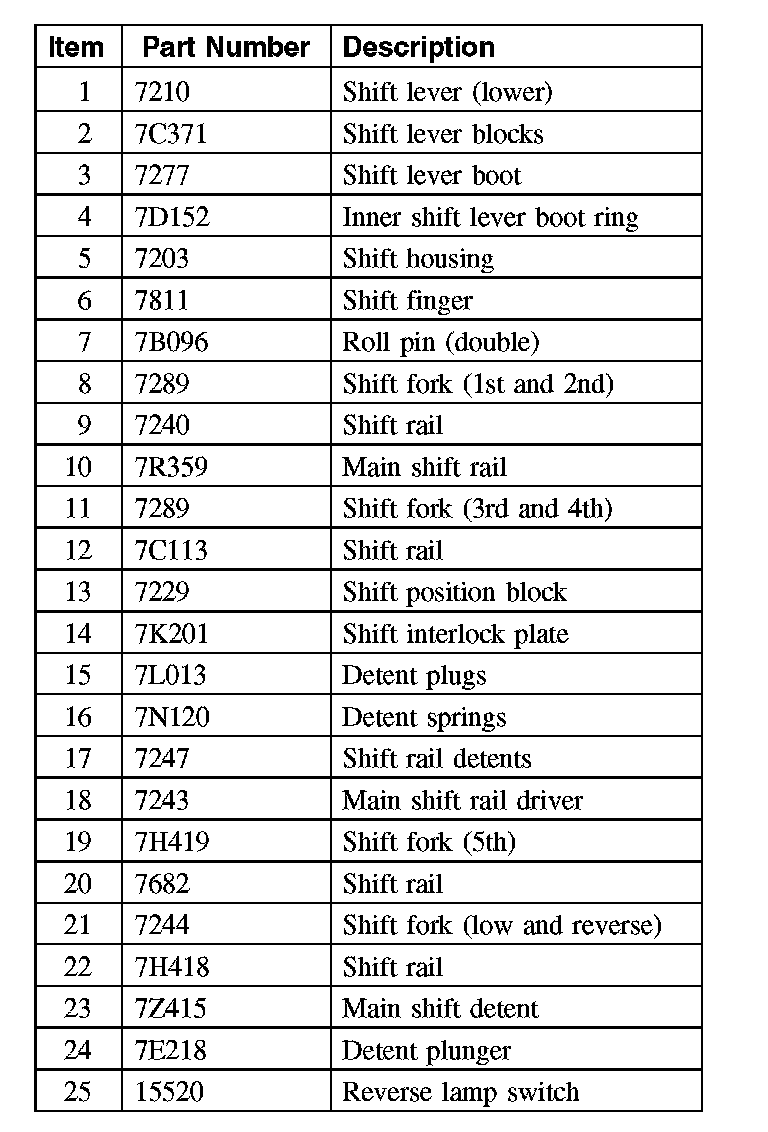

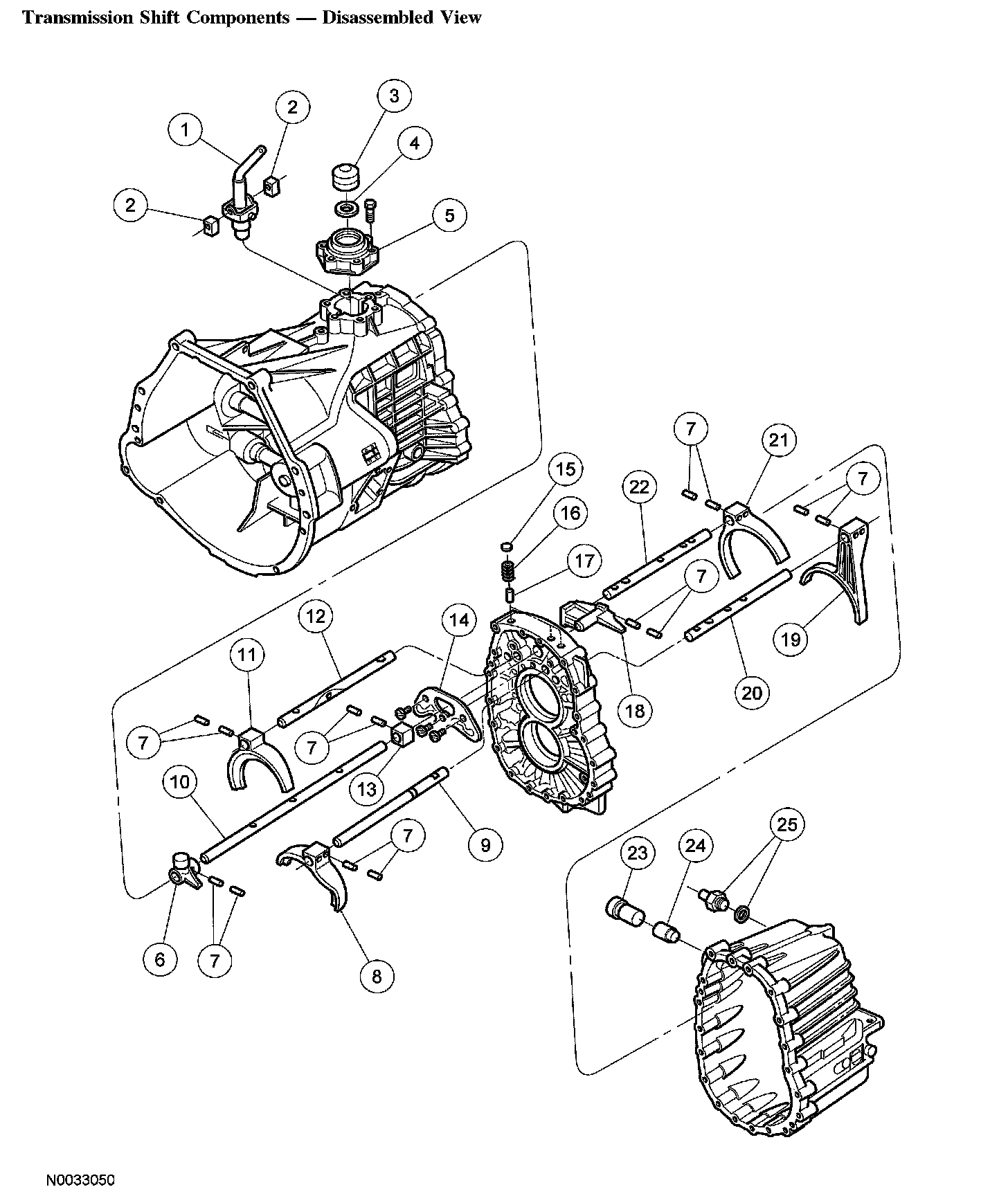

Transmission Shift Components - Disassembled View (Part 1):

Transmission Shift Components - Disassembled View (Part 2):
