F 250 2WD Super Duty V8-5.4L VIN 5
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Locations
Control Assembly: Locations

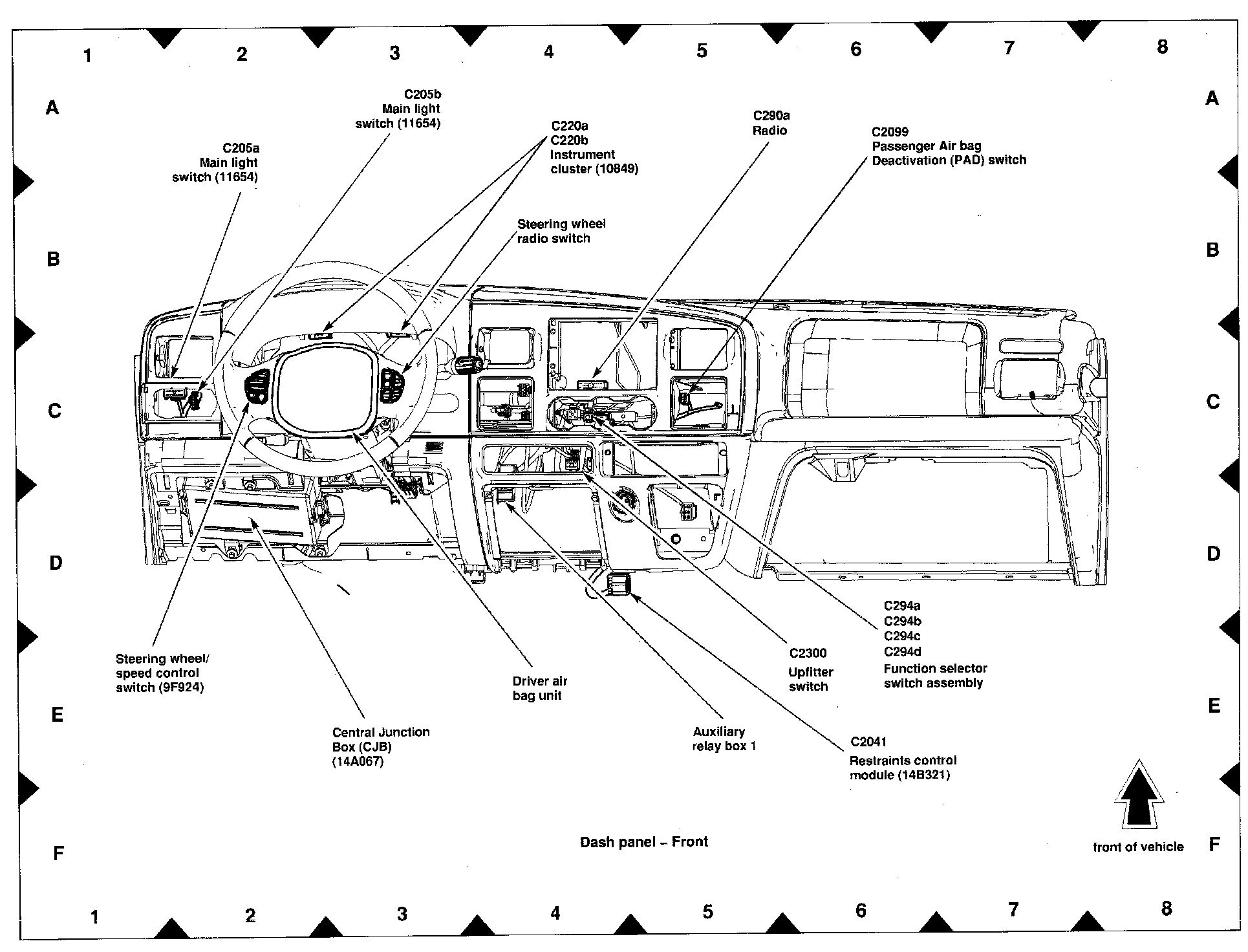

View 151-15 (Dash Panel - Front):
