Control Assembly: Service and Repair

CLIMATE CONTROL ASSEMBLY







Removal and Installation
1. Remove the instrument cluster finish panel.

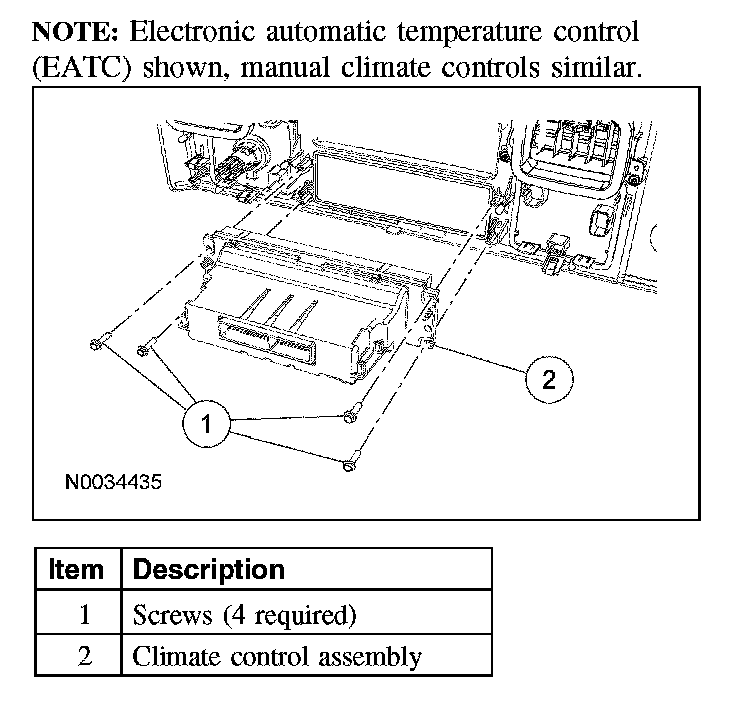

2. NOTE: Manual climate controls shown, EATC similar.

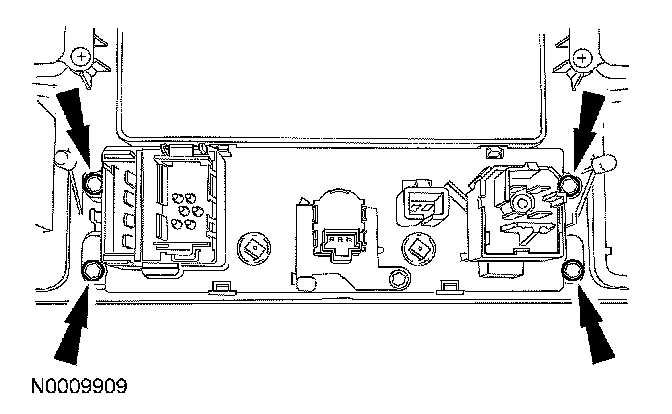

Remove the screws and the climate control assembly.

3. To install, reverse the removal procedure.
