Timing Cover

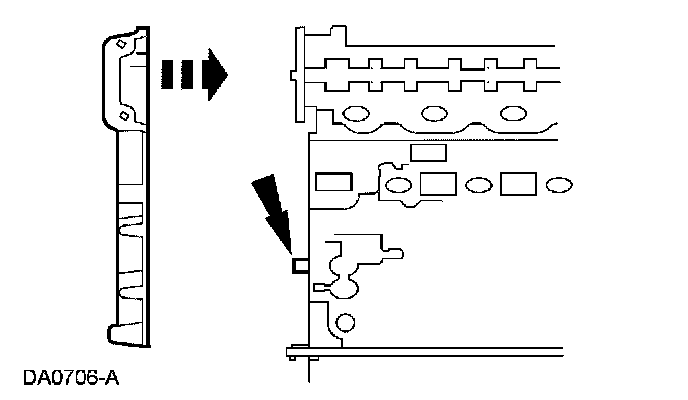

Engine Front CoverPosition the engine front cover onto the dowels. Install the fasteners finger tight.

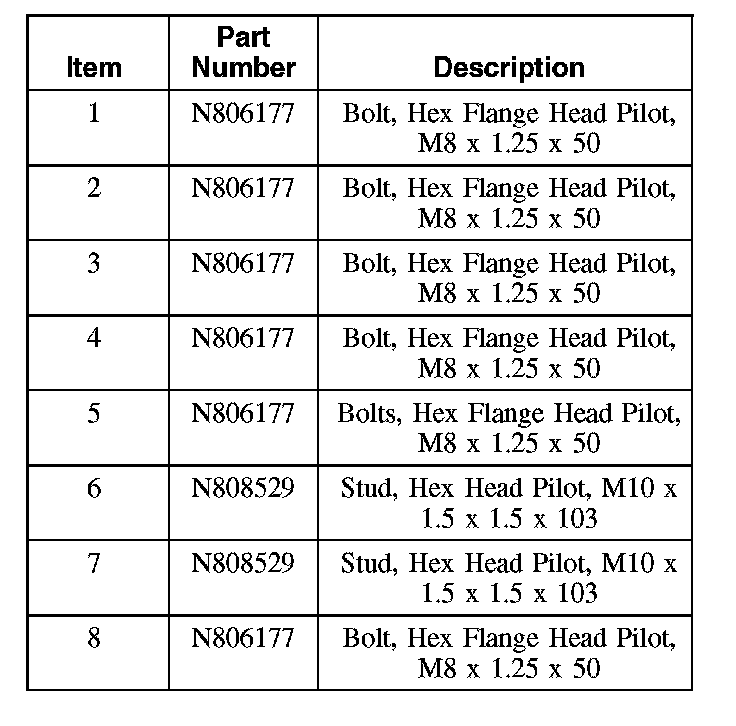

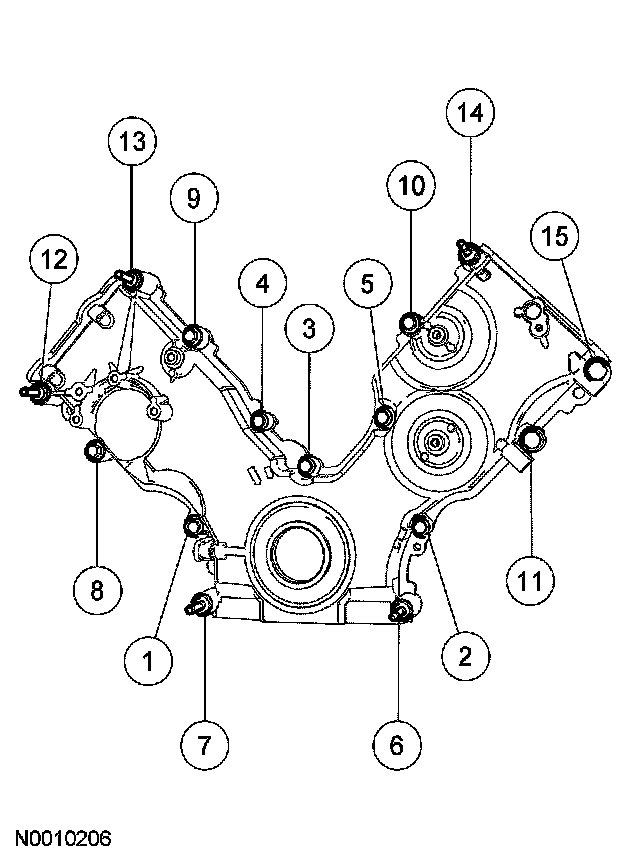

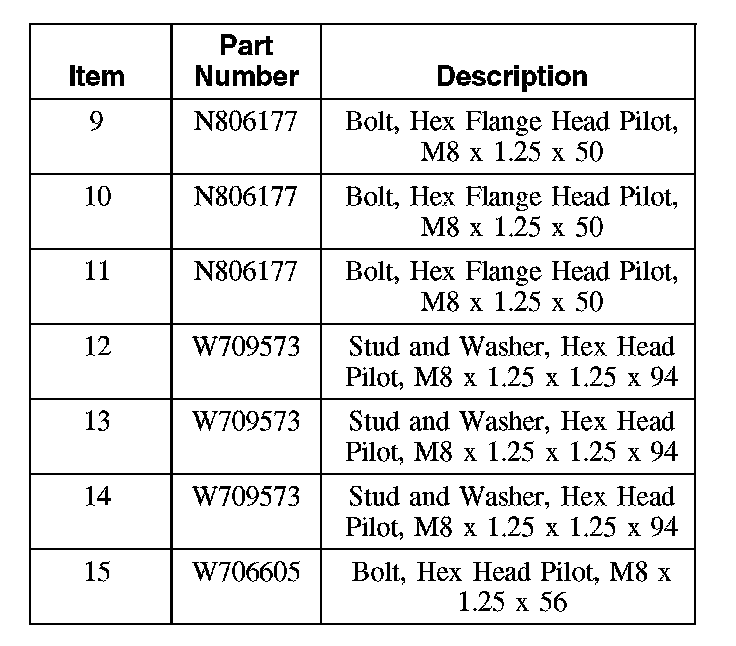

Tighten the engine front cover fasteners in sequence in 2 stages.
^ Stage 1: Tighten fasteners 1 through 15 to 25 Nm (18 ft. lbs.)
^ Stage 2: Tighten fasteners 6 and 7 to 48 Nm (35 ft. lbs.)
Loosely install the bolts, then tighten the bolts in 2 stages, in the sequence shown.
^ Stage 1: Tighten to 20 Nm (15 ft. lbs.)
^ Stage 2: Tighten an additional 60 degrees.
