Test B: A Single Mirror Is Inoperative

PINPOINT TEST B: A SINGLE MIRROR IS INOPERATIVE

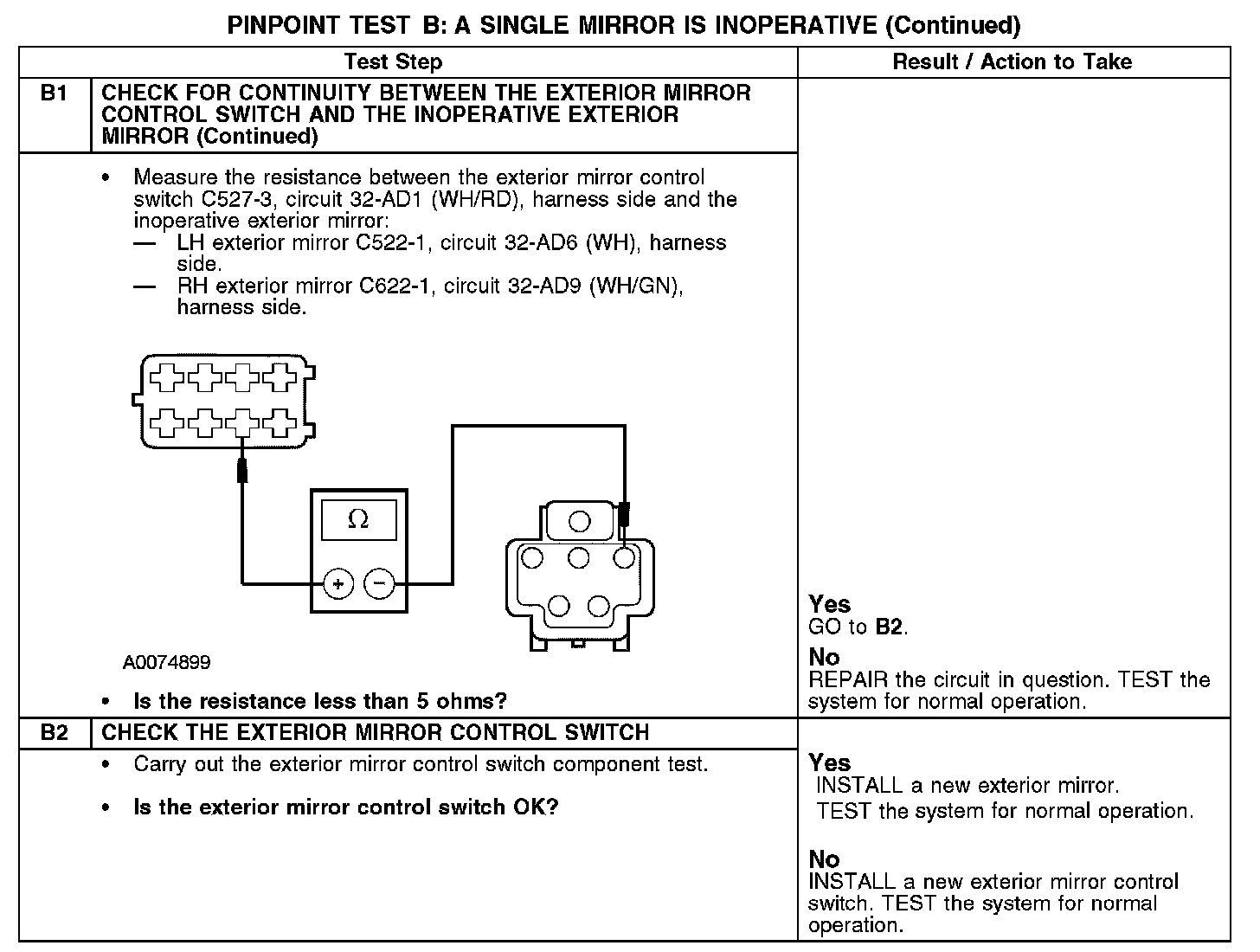

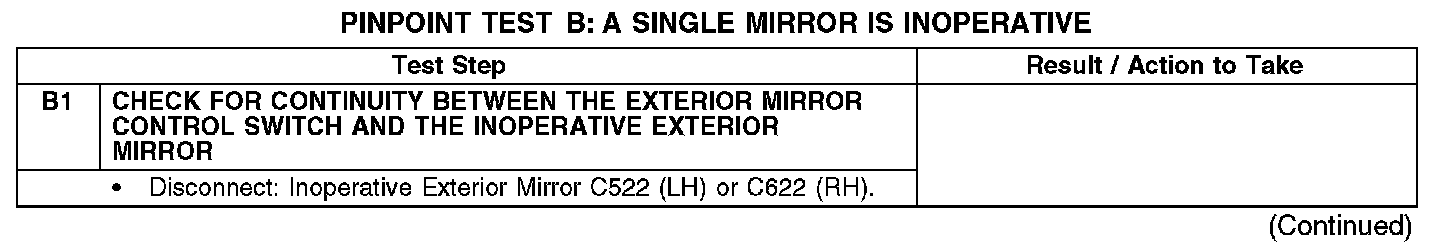

B1:

B1-B2:

Normal Operation
Circuit 32-AD6 (WH) controls the LH exterior mirror up/down and right/left movement. Circuit 32-AD9 (WH/GN) controls the RH exterior mirror up/down and right/left movement. Circuits 32-AD6 (WH) and 32-AD9 (WH/GN) are common switched ground/voltage circuits based upon the mirror control switch position.

Possible Causes
- circuit 32-AD6 (WH) open
- circuit 32-AD9 (WH/GN) open
- exterior mirror control switch
- exterior mirror
