Test R: The Individual Reversing Lamp Is Inoperative

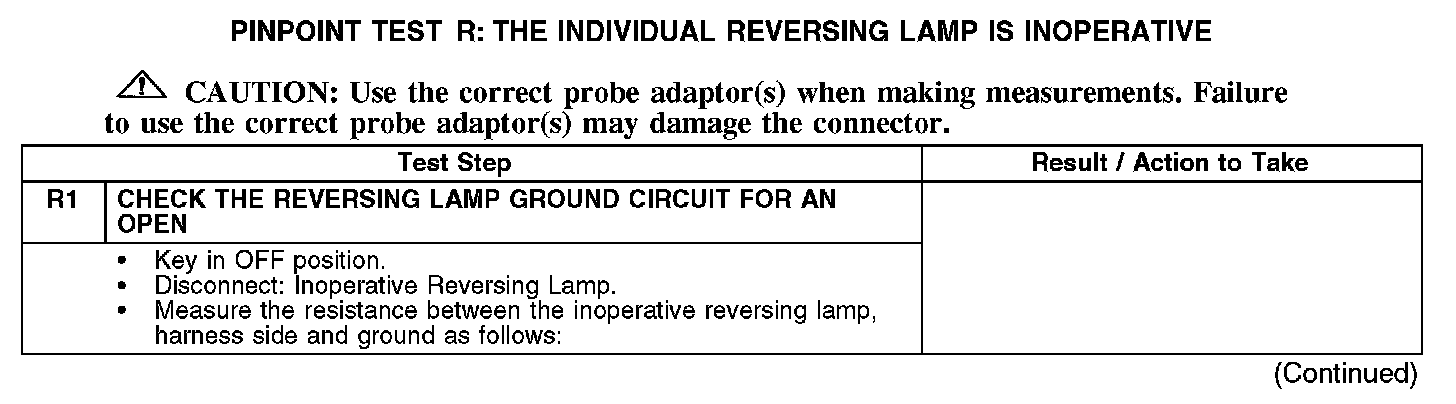

PINPOINT TEST R: THE INDIVIDUAL REVERSING LAMP IS INOPERATIVER1:

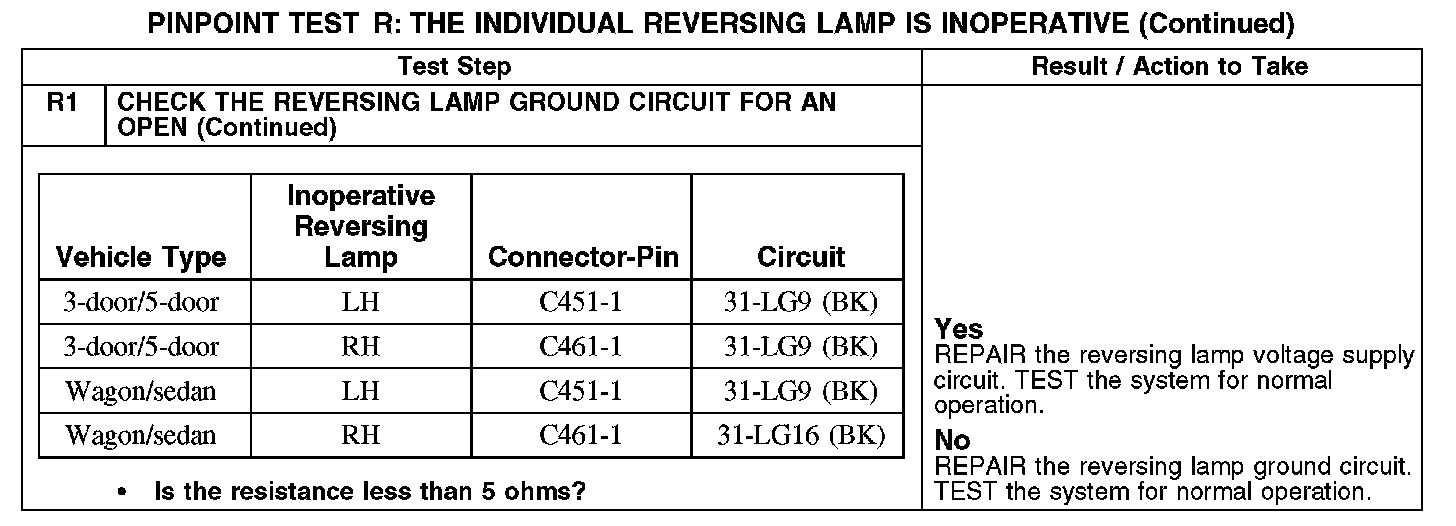

R1 Continued:
Normal Operation - 3-Door/5-Door
When the transaxle is placed in REVERSE, voltage is routed to the reversing lamps through circuit 15S-LG9A (GN/BK). Ground is provided through circuits 31-LG9 (BK) and 31-LG16 (BK) to the LH and RH reversing lamps, respectively.
Normal Operation - Wagon/Sedan
When the transaxle is placed in REVERSE, voltage is routed through circuits 15S-LG9A (GN/BK) and 15S-LG16 (GN/OG) to the LH and RH reversing lamps, respectively. Ground is provided through circuits 31-LG9 (BK) and 31-LG16 (BK) for the LH and RH reversing lamps, respectively.
Possible Causes
- Circuit 15S-LG9A (GN/BK) open
- Circuit 15S-LG16 (GN/OG) open
- Circuit 31-LG9 (BK) open
- Circuit 31-LG16 (BK) open
