Home >> Ford >> 2007 >> Focus L4-2.0L VIN N >> Repair and Diagnosis >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Diagrams >> Connector Views >> Central Junction Box

Central Junction Box

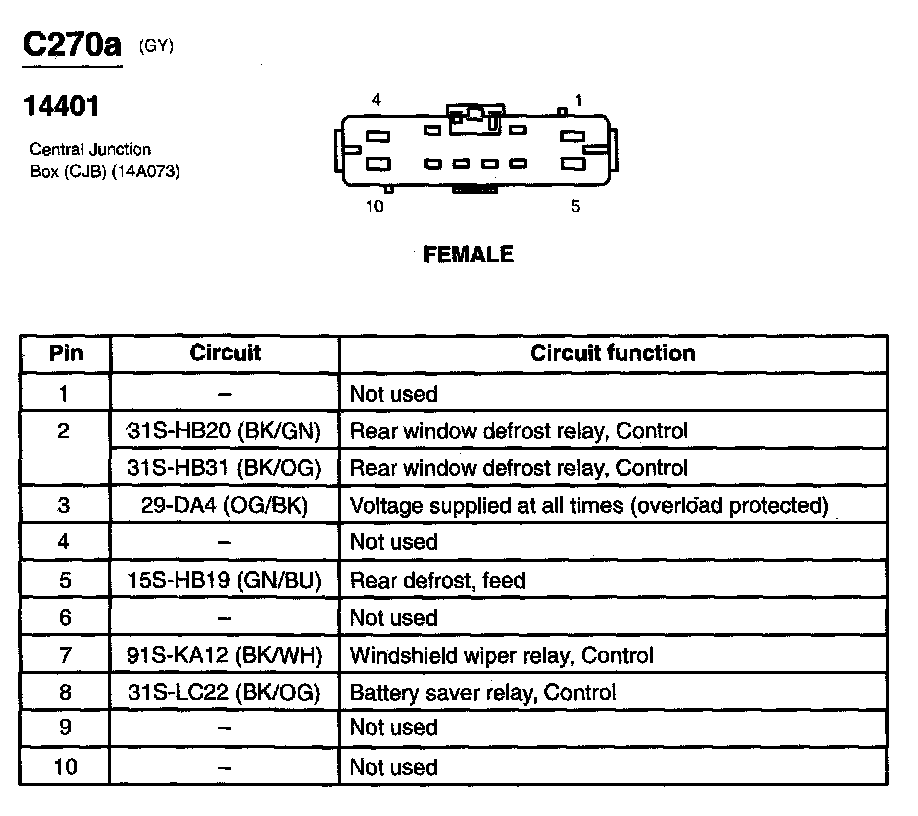

C270a:

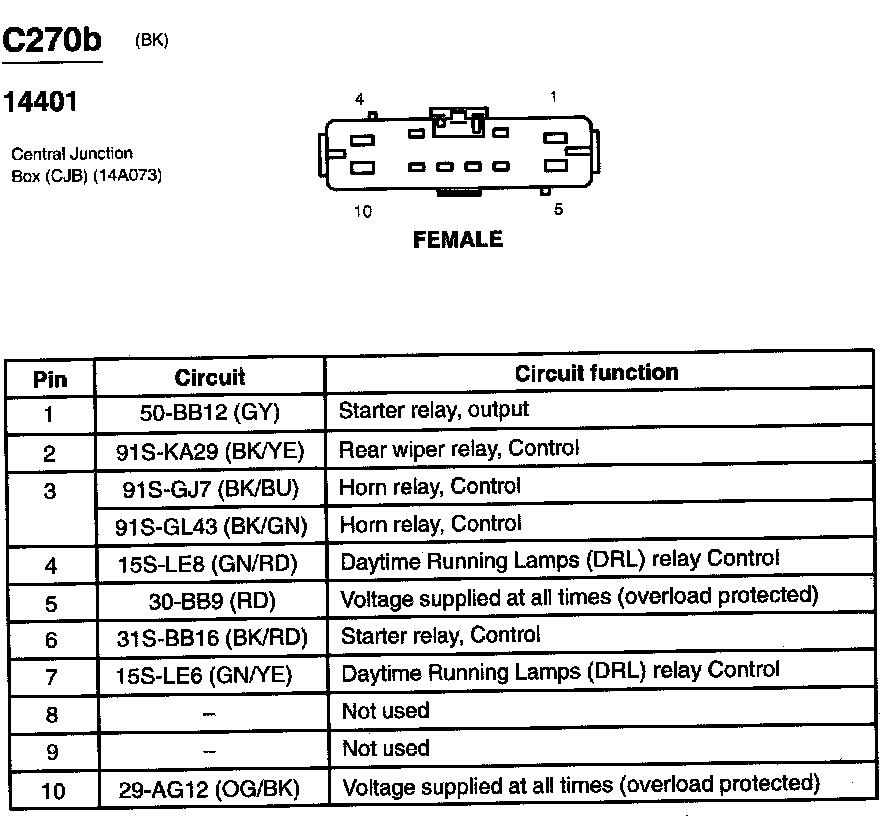

C270b:

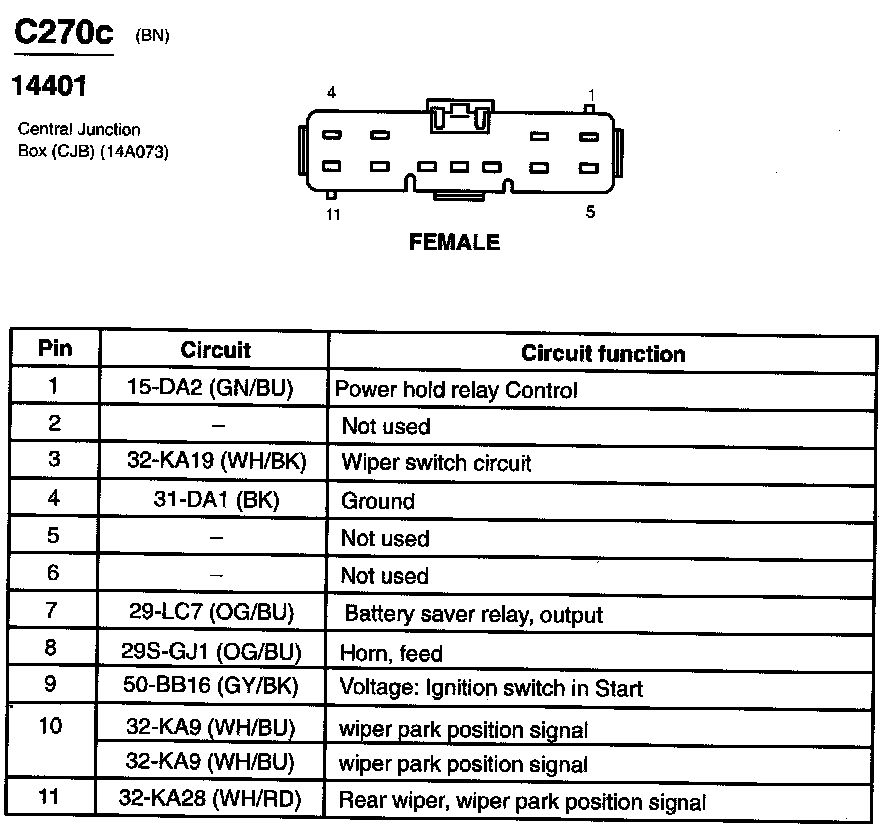

C270c:

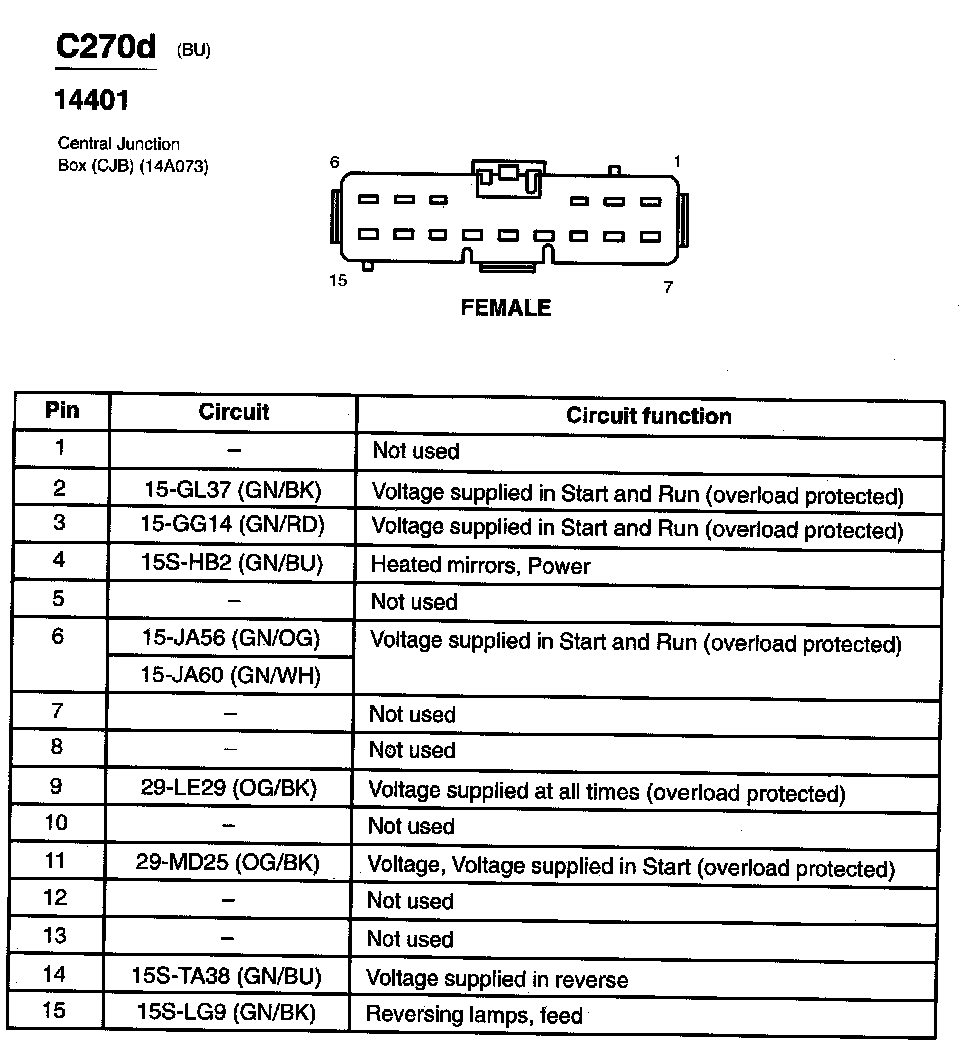

C270d:



C270e:

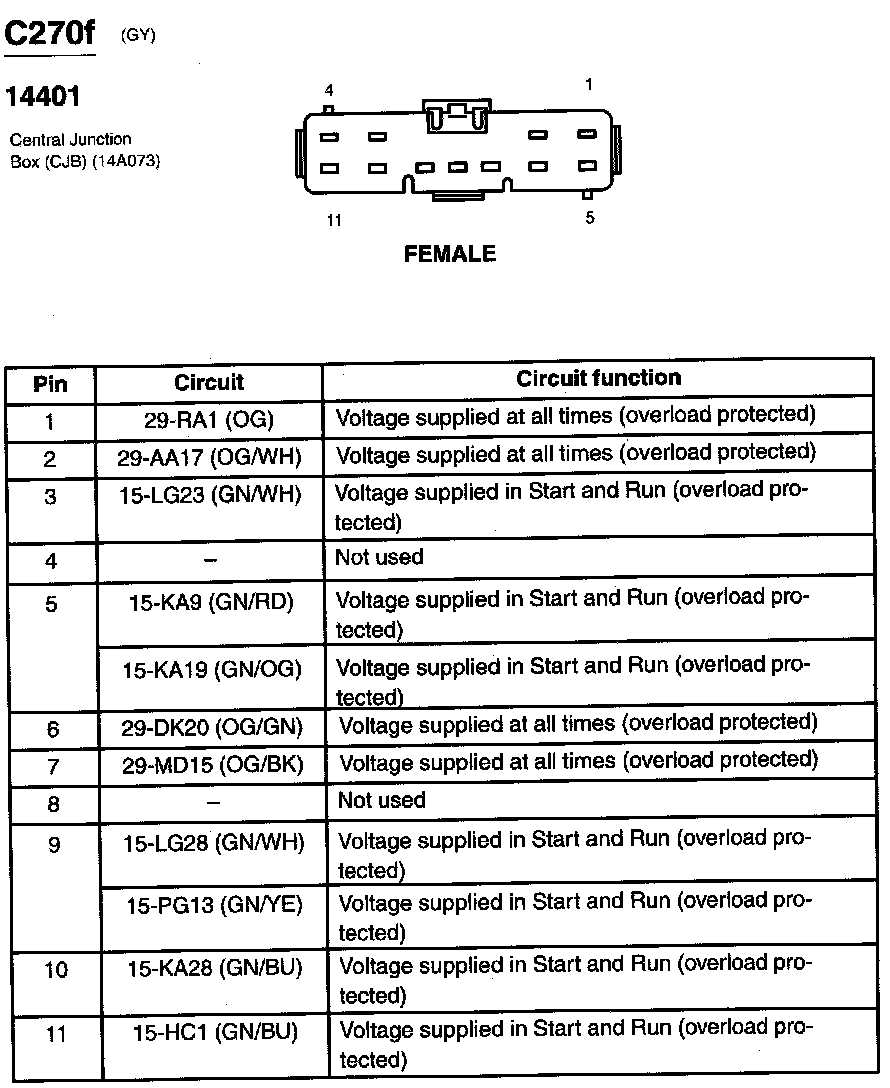

C270f:

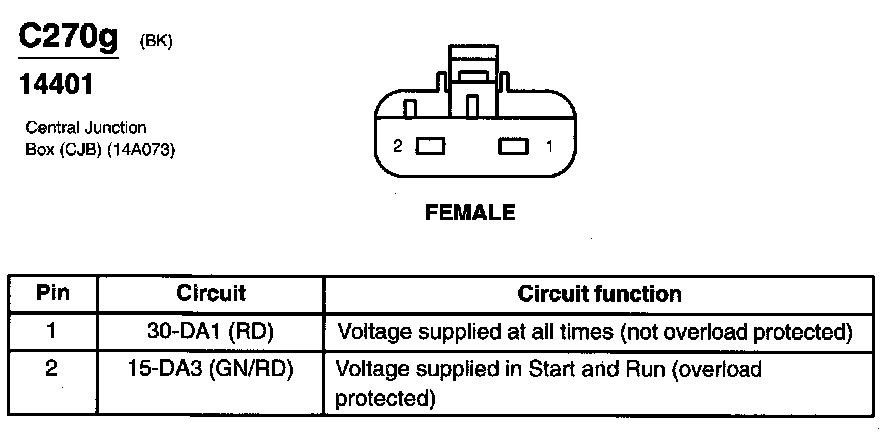

C270g:
