Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 2007 >> Focus L4-2.0L VIN N >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Body Control Module >> Locations

Body Control Module: Locations

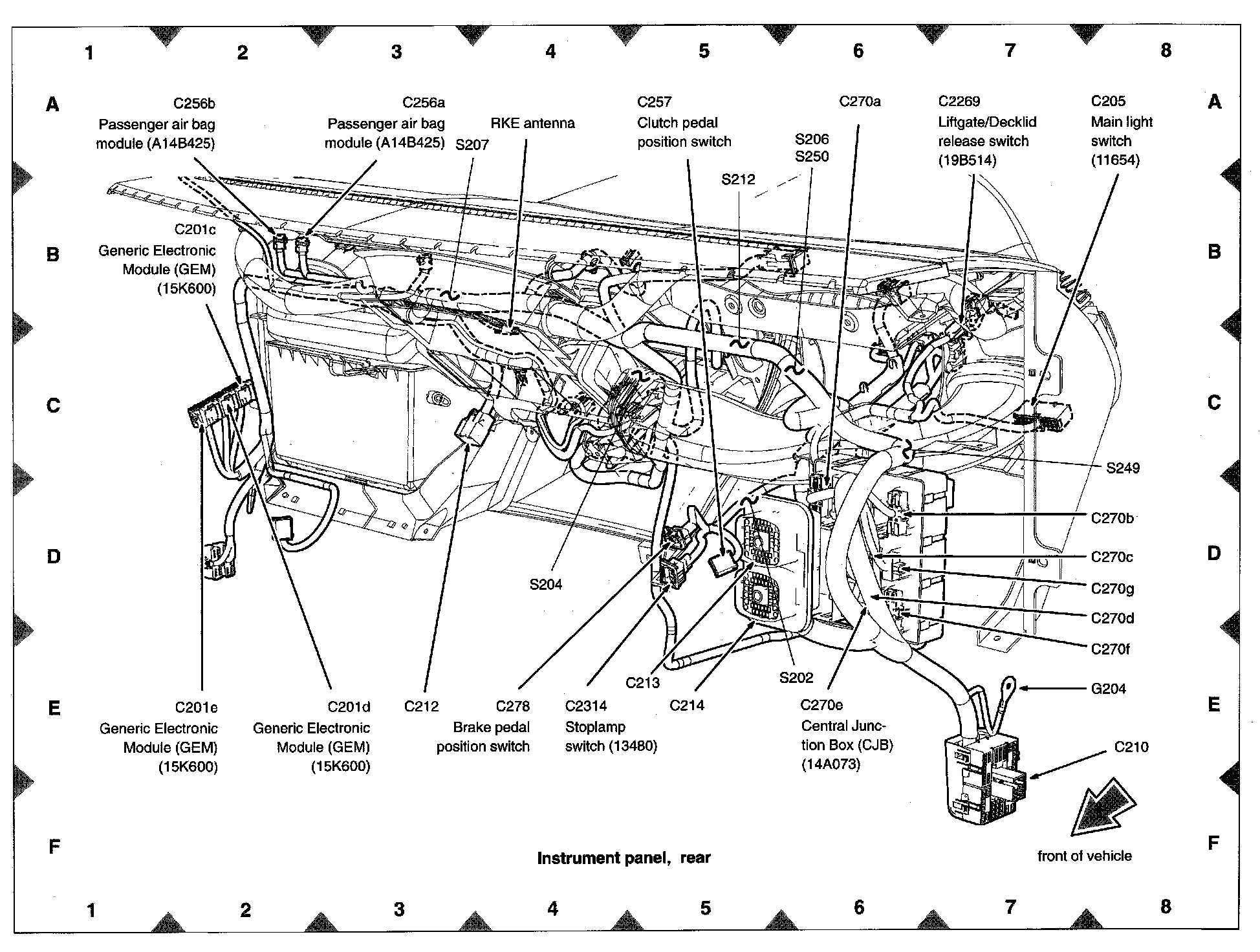

View 151-11 (Instrument panel, Rear):
