Home >> Ford >> 2007 >> Focus L4-2.0L VIN N >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Power Steering Pressure Switch >> Locations

Power Steering Pressure Switch: Locations

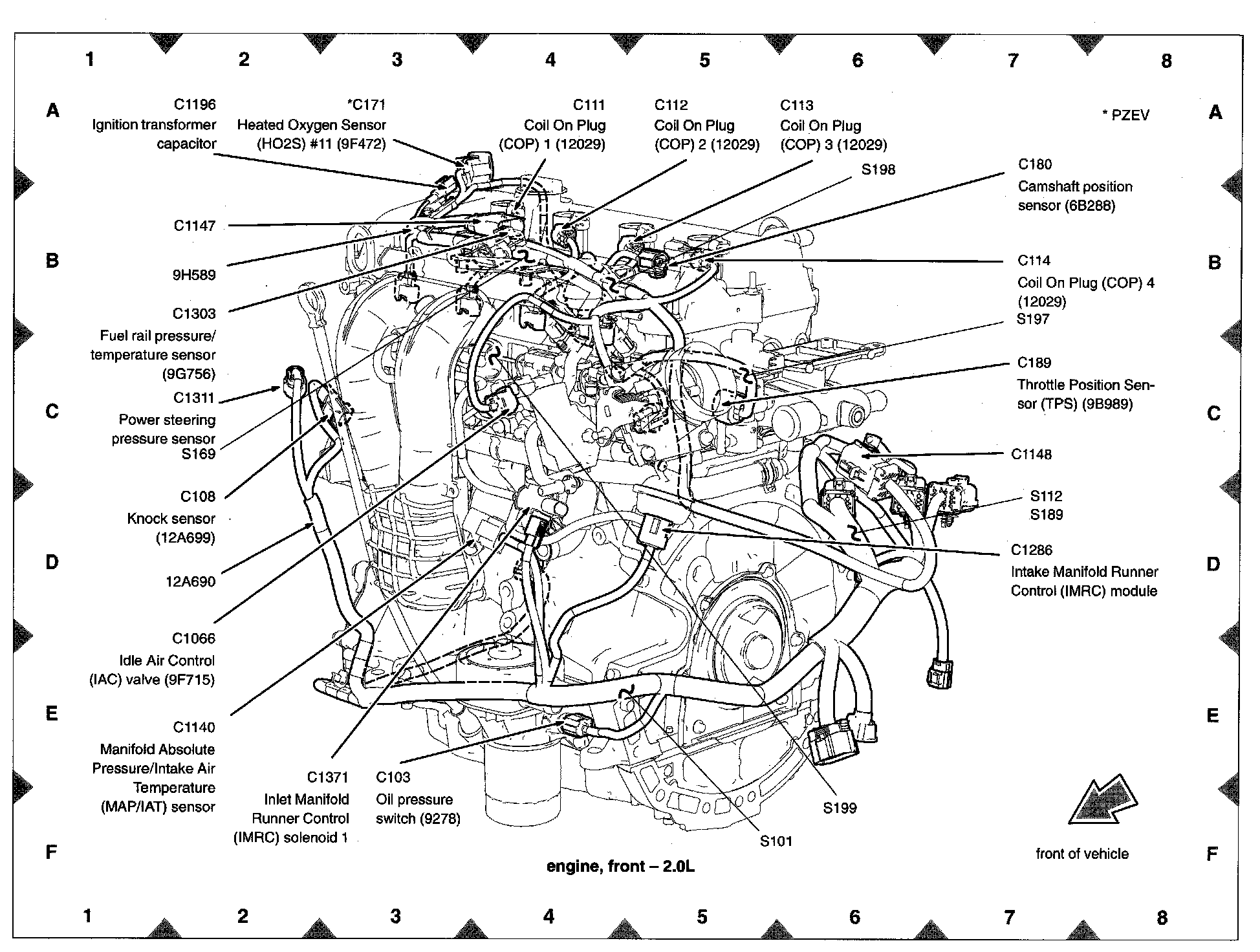

View 151-4 (Engine Front - 2.0L):
