Test Z: DTC B1925 - Air Bag Passenger Circuit Short to Battery Fault

PINPOINT TEST Z: DTC B1925 - AIR BAG PASSENGER CIRCUIT SHORT TO BATTERY FAULT

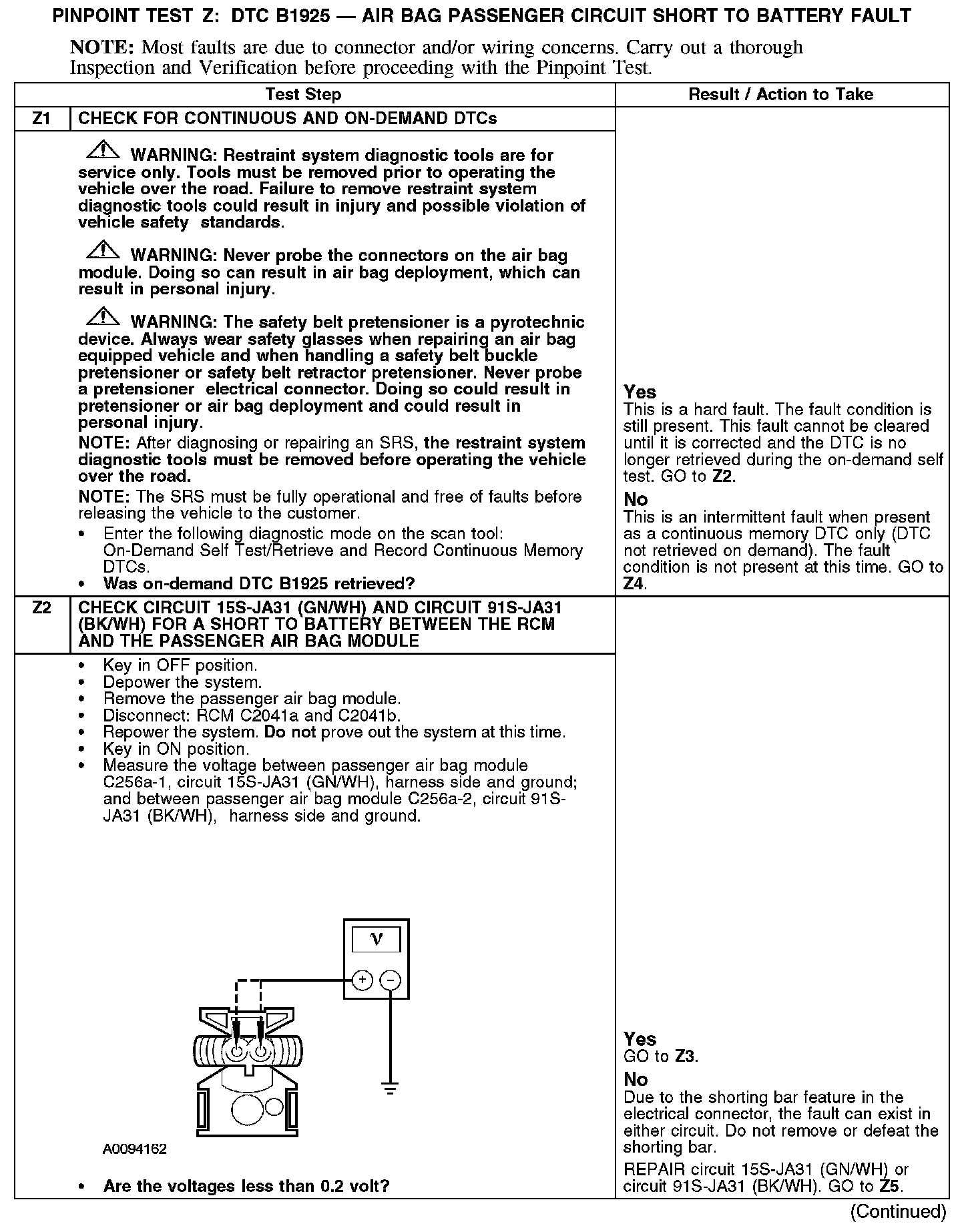

Z1-Z2:

Z3-Z5:

Normal Operation
The restraints control module (RCM) checks all of the passenger air bag circuits for faults. If the RCM detects a short to voltage on a passenger air bag module squib 1 circuit, it will store diagnostic trouble code (DTC) B1925 in memory and illuminate the air bag indicator.

Fault Conditions
The RCM monitors for the following fault conditions:
- Circuit short to voltage

Possible Causes
A passenger air bag module squib 1 short to voltage fault can be caused by:
- damaged wiring, terminals or connectors.
- a faulted RCM.
