Test D: No Power in START

Pinpoint Test D: No Power In START

Normal Operation
The ignition switch receives fused battery voltage from battery junction box (BJB) fuse 8 (30A) along circuit 30-BB9 (RD). When placed in the START position, the ignition switch sends this voltage to the central junction box (CJB) along circuit 50-BB16 (GY/BK).

Possible Causes
^ Circuit open
^ Starter relay
^ Ignition switch
^ CJB

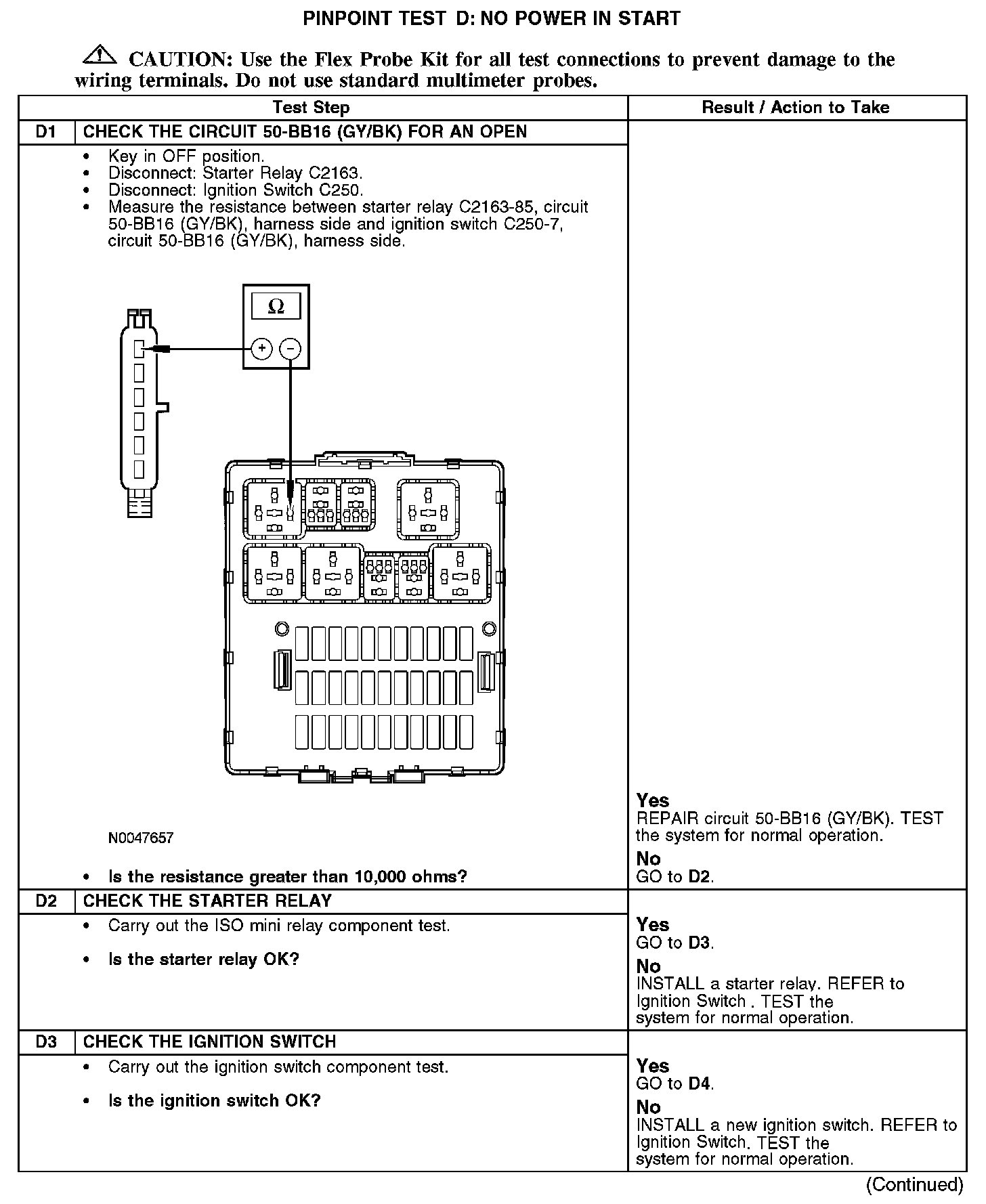

D1-D3:




D4:
