Main Control Valve Body

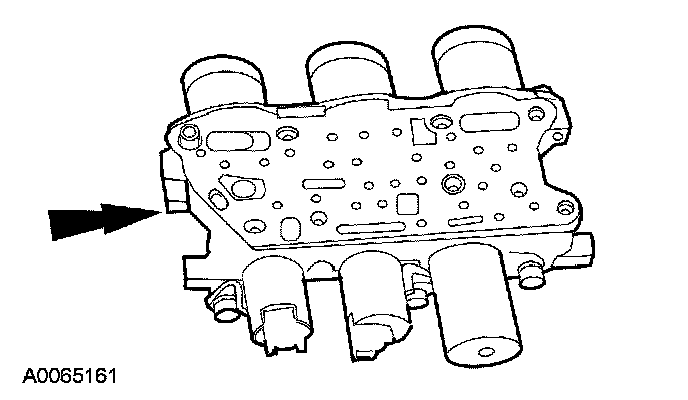

Main Control Valve Body

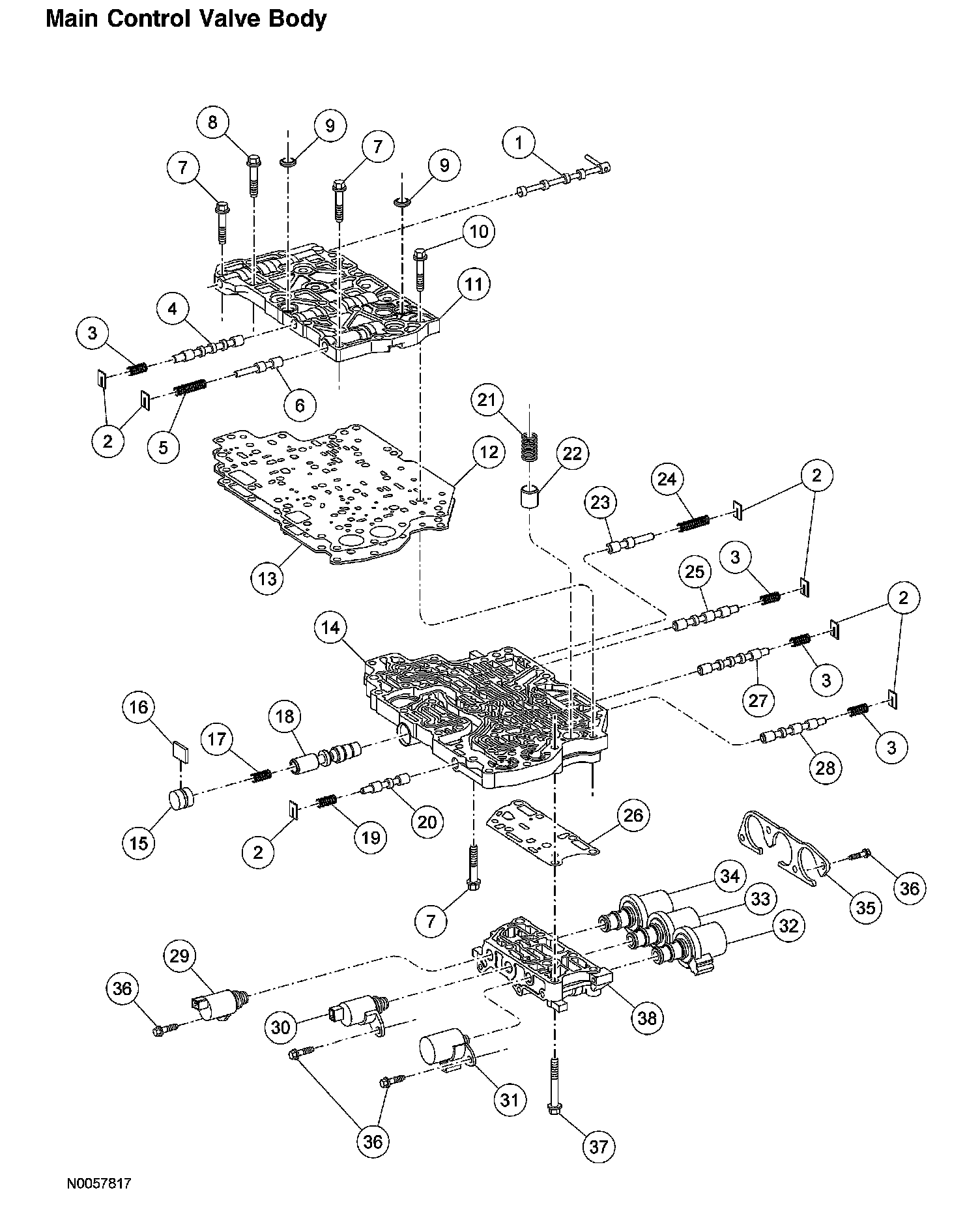

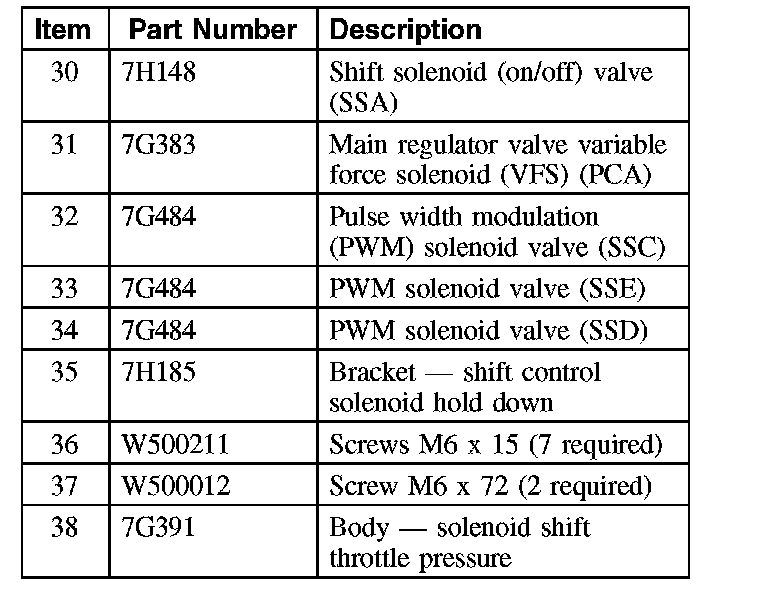

Main Control Valve Body (Part 1):

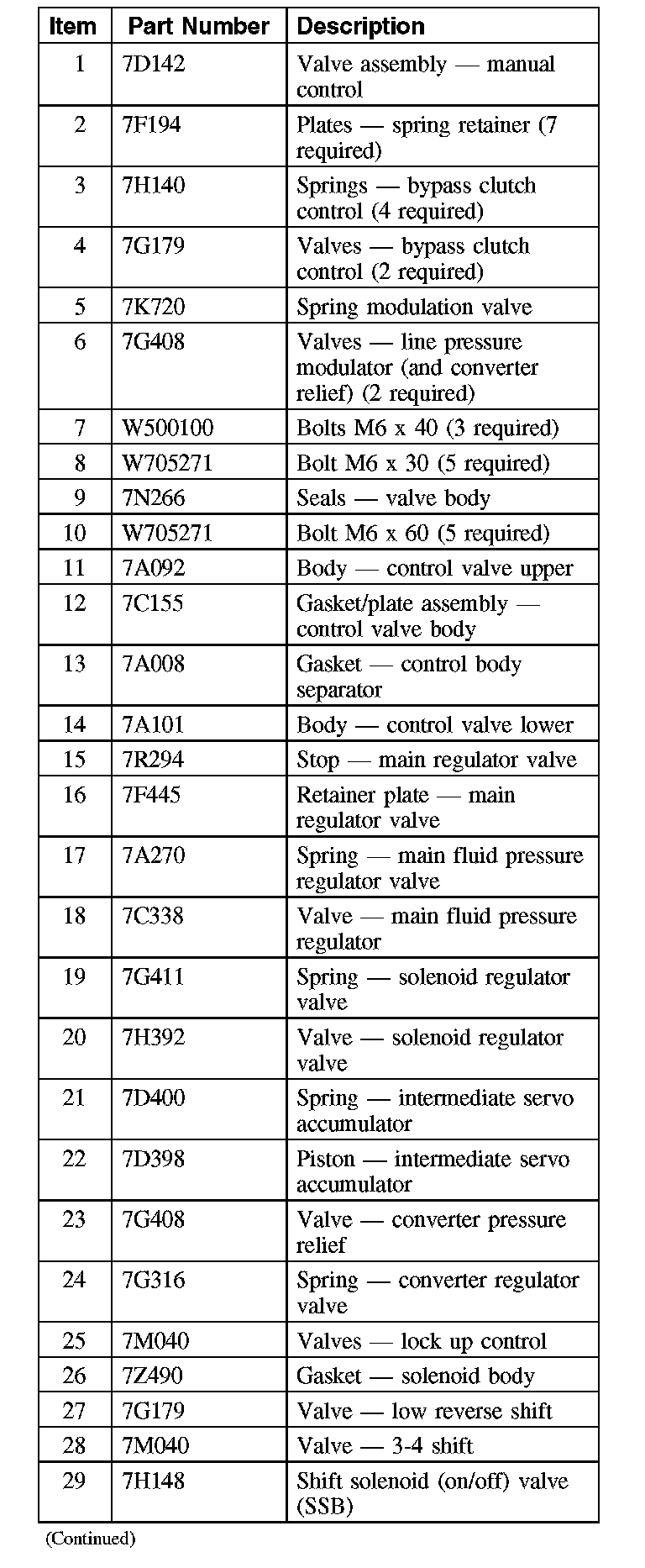

Main Control Valve Body (Part 2):

Main Control Valve Body (Part 3):

Disassembly

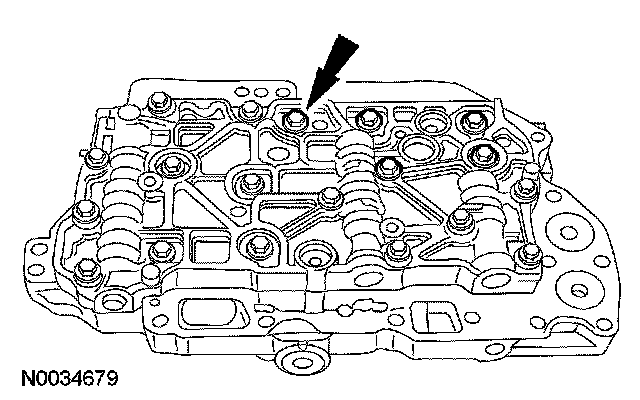

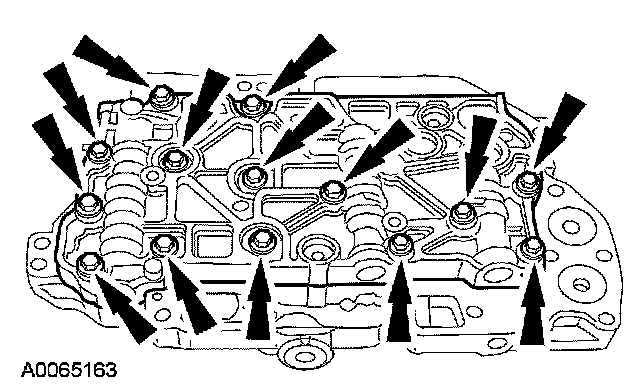

1. Remove the solenoid body bolts and the solenoid body.





2. Remove and discard the solenoid body gaskets.





3. Remove and discard the seals.





4. Disassemble the main control valve body.





Assembly

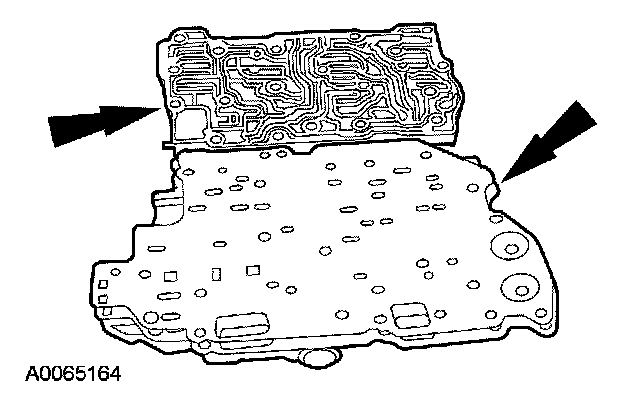

1. NOTE: The top side of the separator plate has a bonded gasket.

NOTE: The separator gasket goes on the bottom side.

NOTE: Inspect the main control valve body.

Install new control valve body plate assembly and separator gaskets.

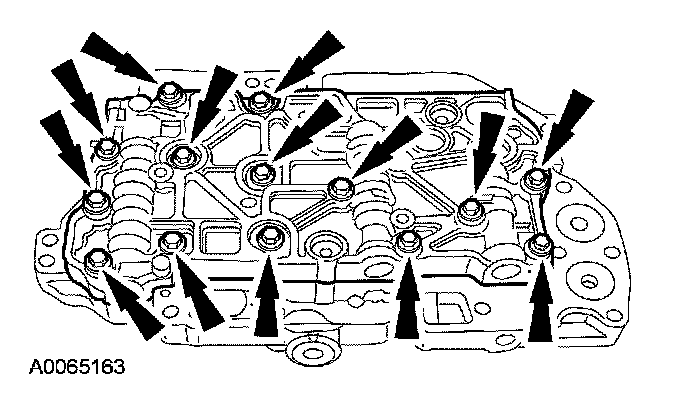

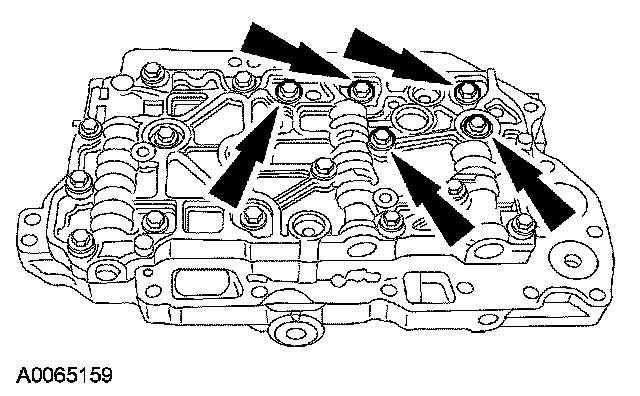

2. NOTE: Do not fully tighten the bolts at this stage.

Assemble the main control valve body and loosely install the bolts.

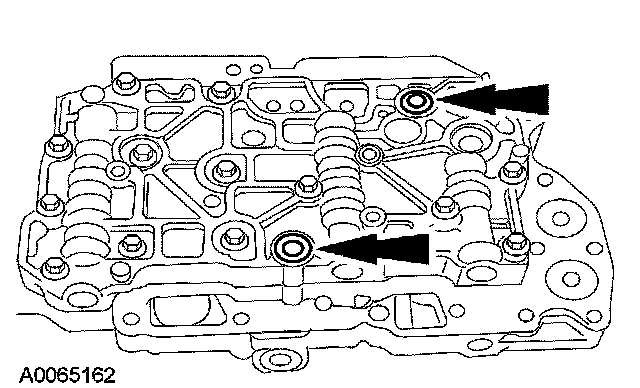

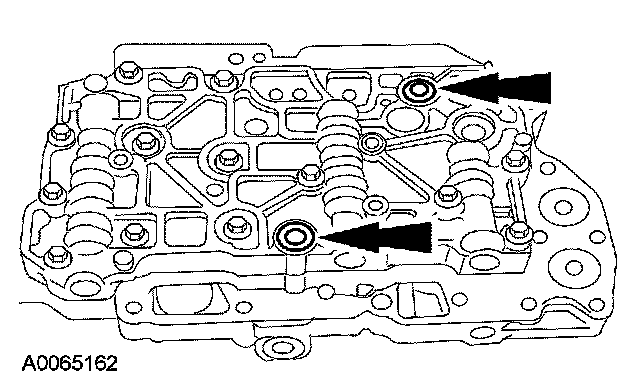

3. Install the seals.





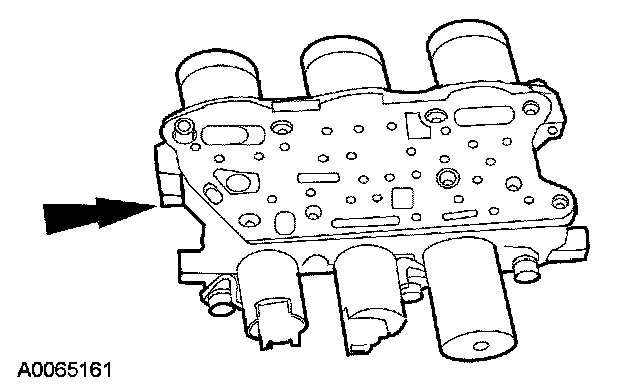

4. Install a new solenoid body gasket.





5. Install the solenoid body and loosely install the bolts.

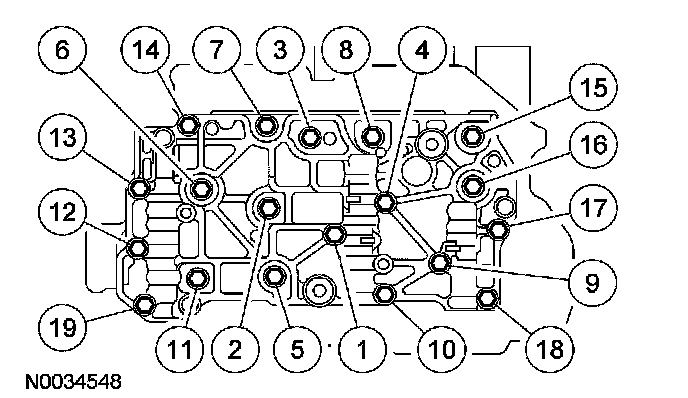

6. Tighten the solenoid body bolts in the sequence shown.
^ Tighten to 9 Nm (80 inch lbs.).
