Transfer Shaft

Transfer Shaft

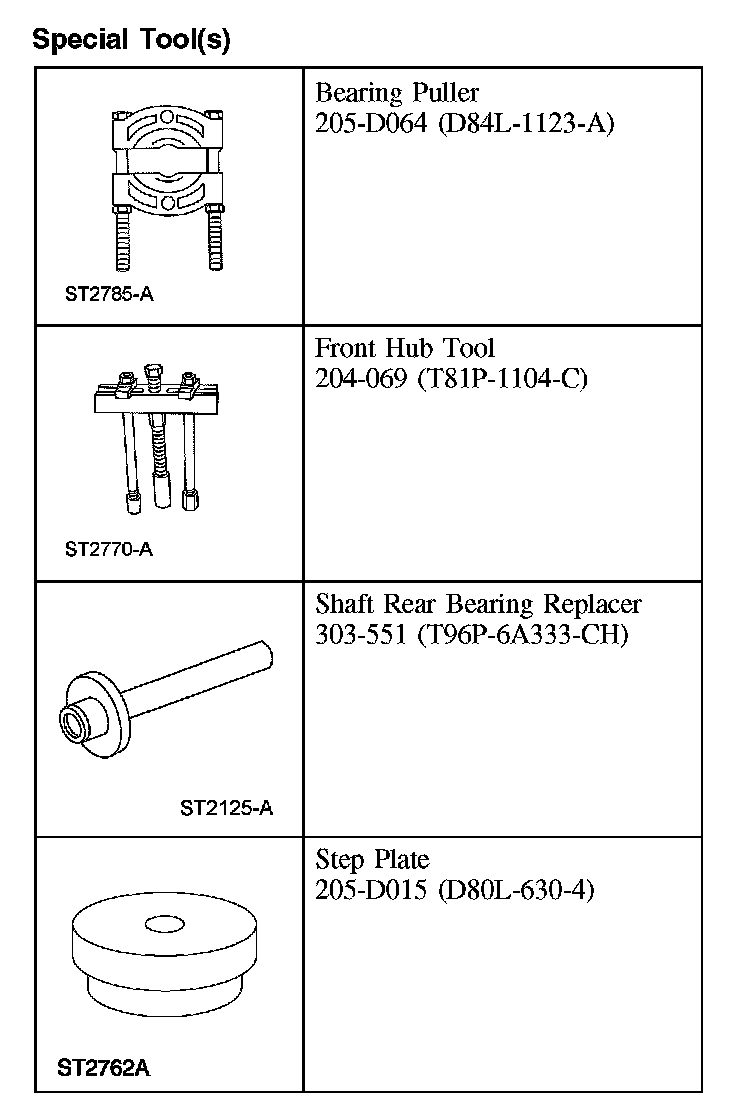

Special Tool(s):

Disassembly

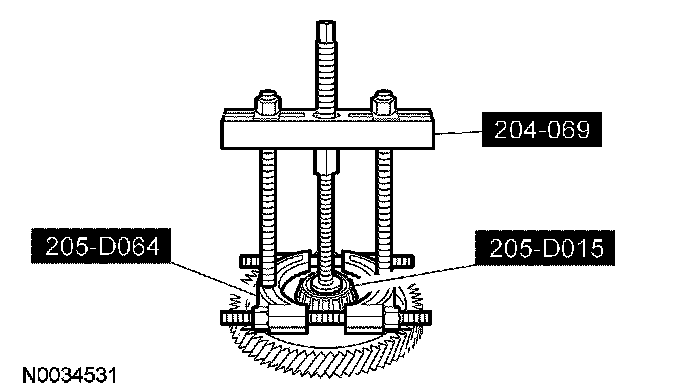

1. Using the special tools, remove the RH transfer shaft gear bearing.

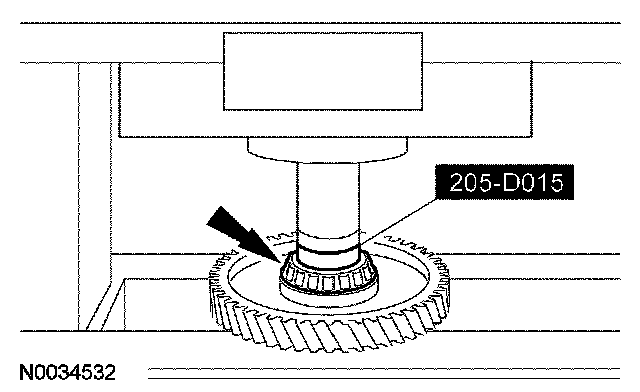

2. Using the special tool and a press, remove the LH transfer shaft gear bearing while separating the gears.





Assembly
1. Using the special tool, install the RH transfer shaft gear and park gear assembly.

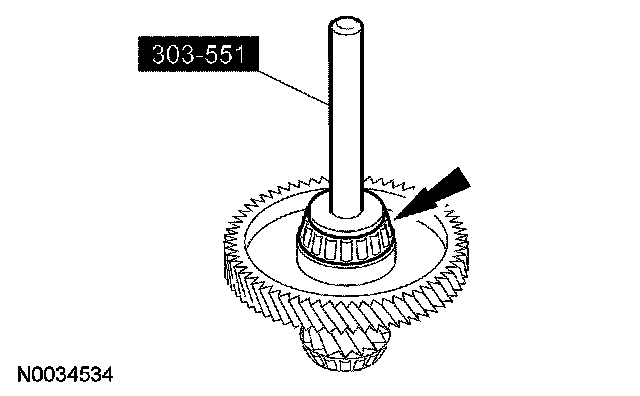

2. Using the special tool, assemble the gears and install the LH transfer shaft gear bearing
