Test E: Turbine Shaft Speed (TSS) Sensor and Output Shaft Speed (OSS) Sensor

TEST E: Turbine Shaft Speed (TSS) Sensor and Output Shaft Speed (OSS) Sensor

NOTE: Refer to the turbine shaft speed (TSS) sensor and output shaft speed (OSS) sensor connector illustrations preceding these pinpoint tests.

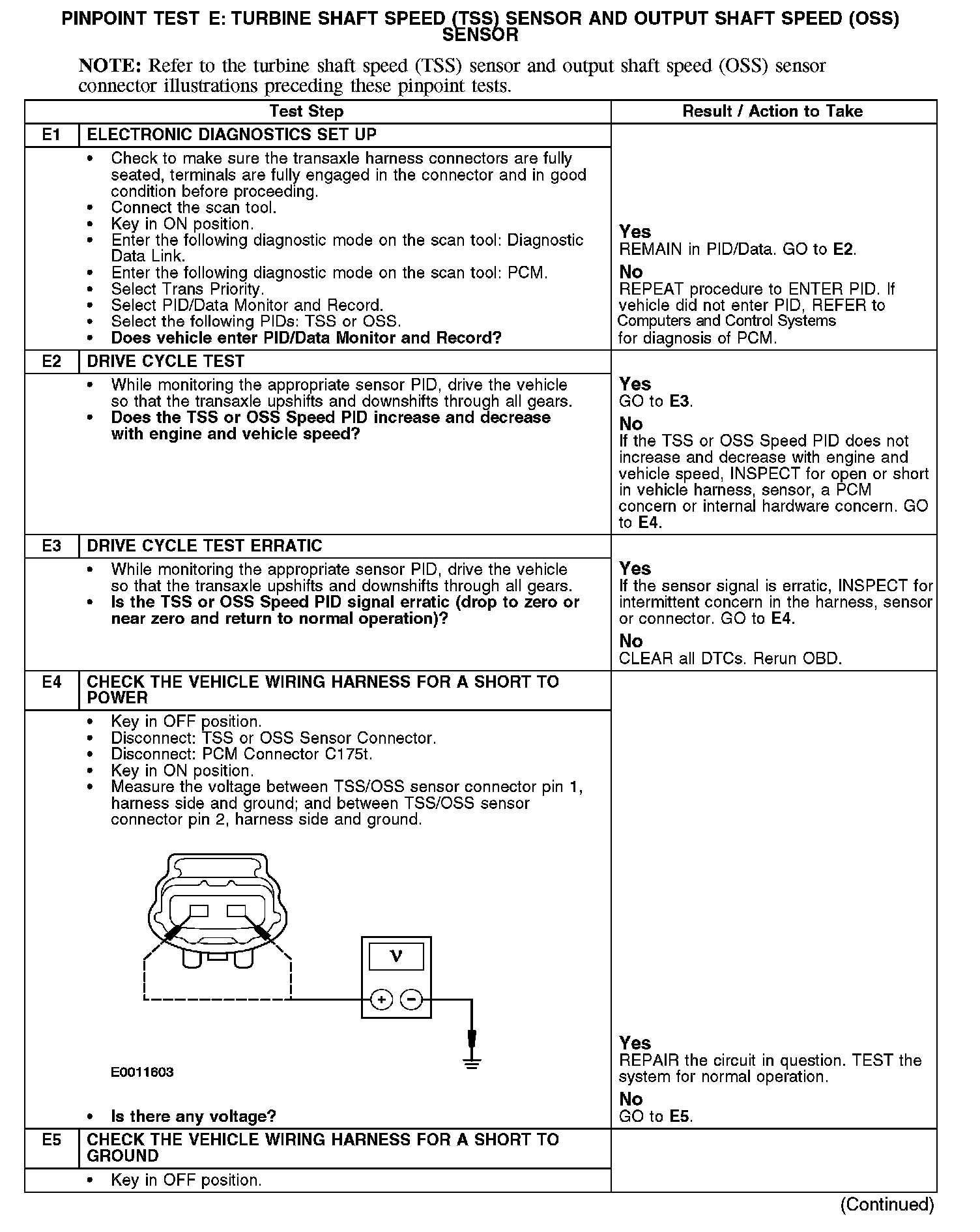

E1-E5:

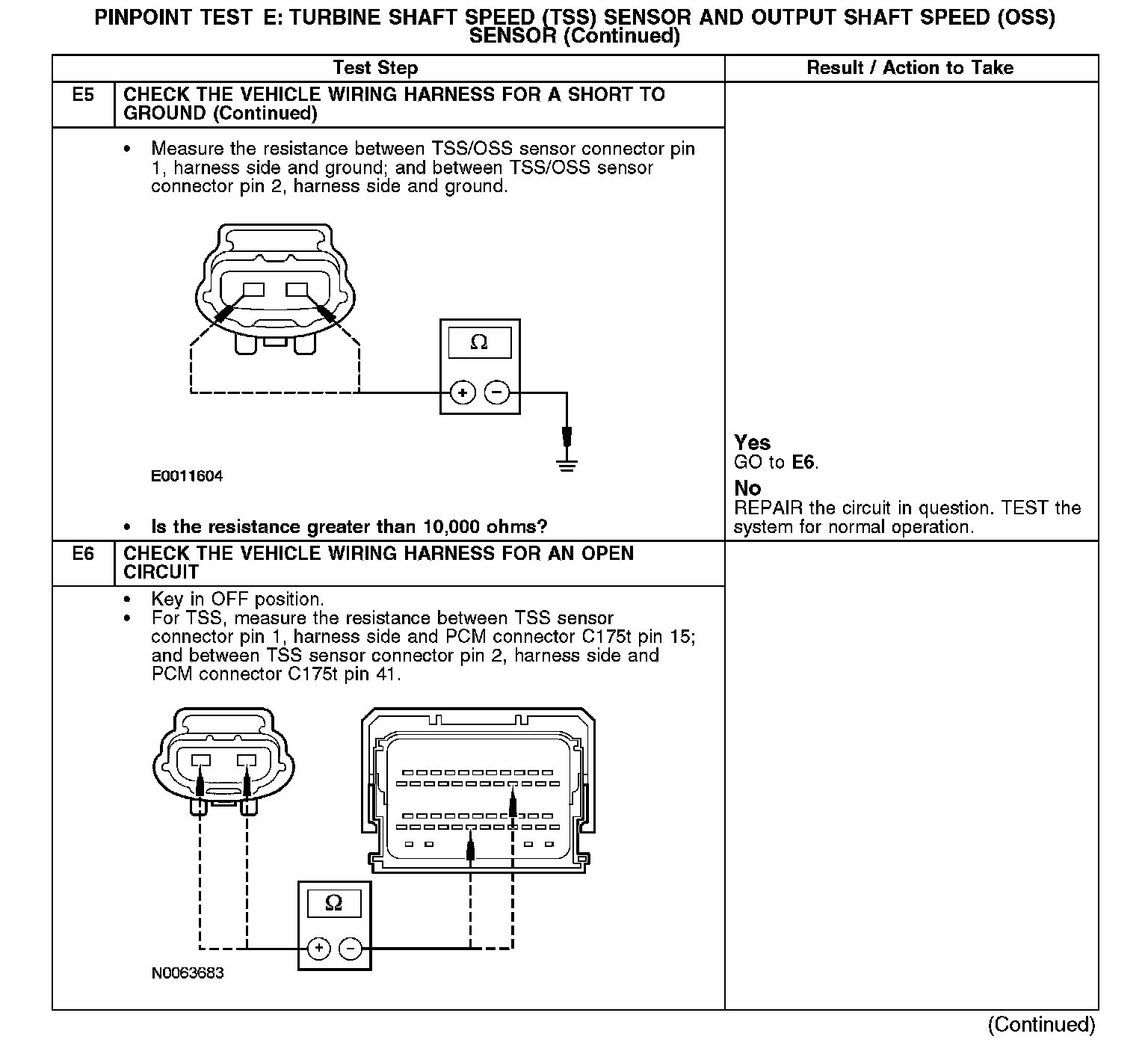

E5-E6:

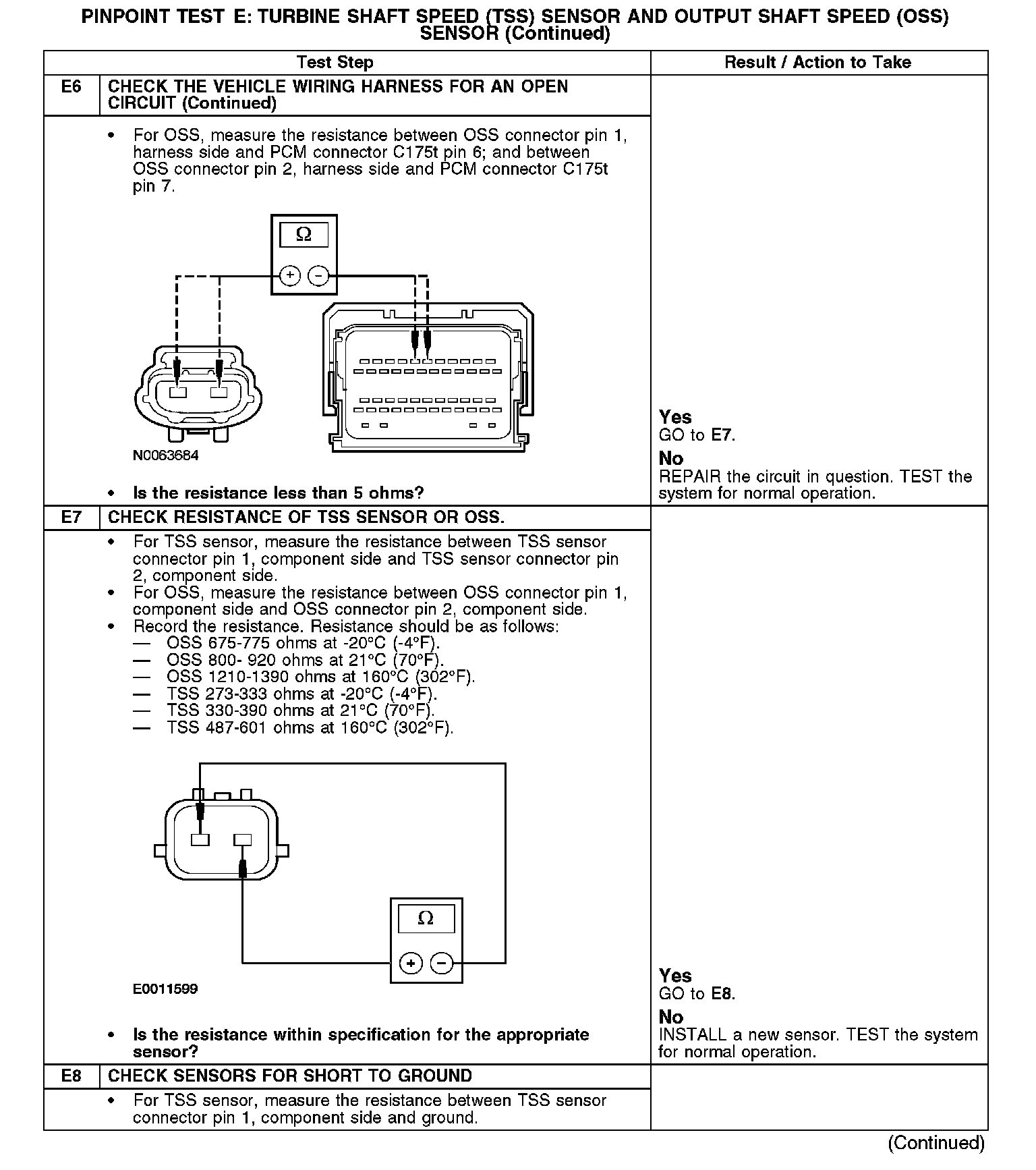

E6-E8:

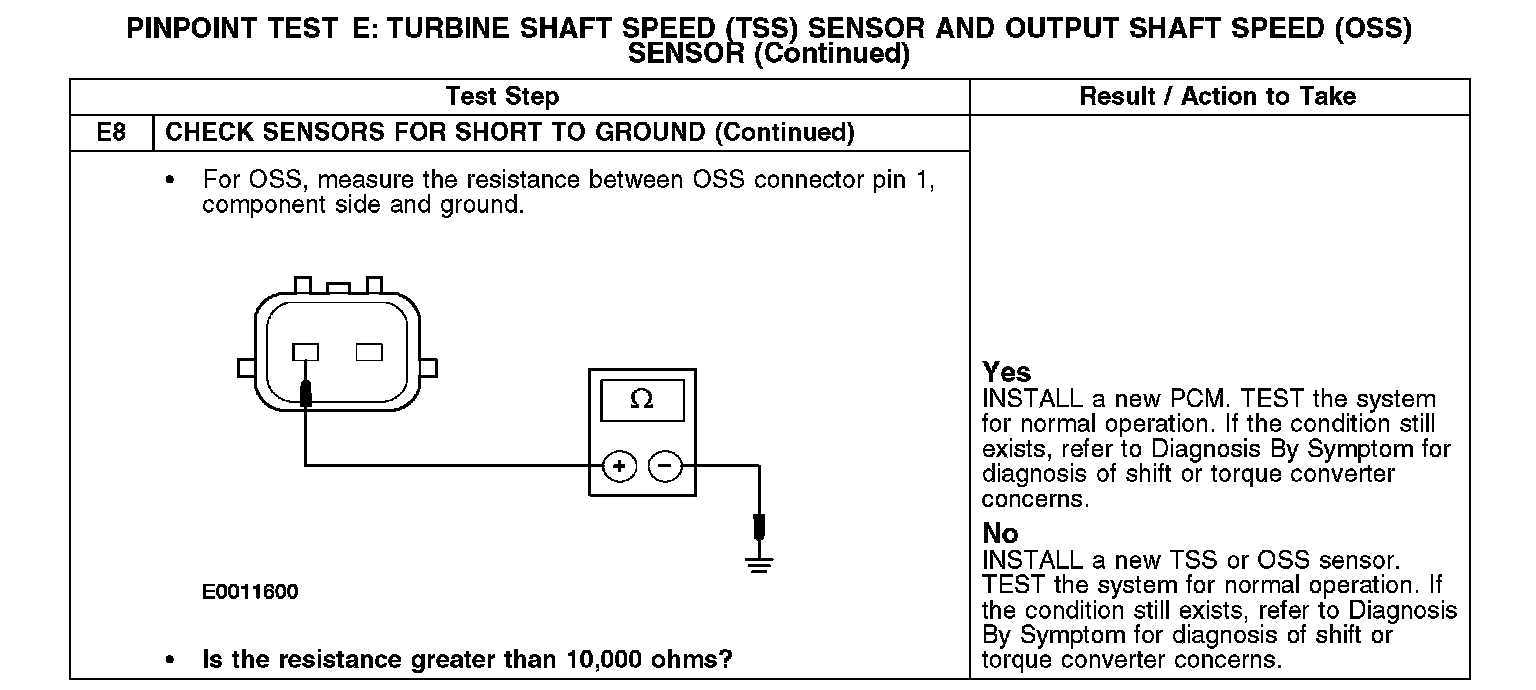

E8:
