Home >> Ford >> 2007 >> Focus L4-2.0L VIN N >> Repair and Diagnosis >> Windows and Glass >> Relays and Modules - Windows and Glass >> Power Window Relay >> Locations

Power Window Relay: Locations

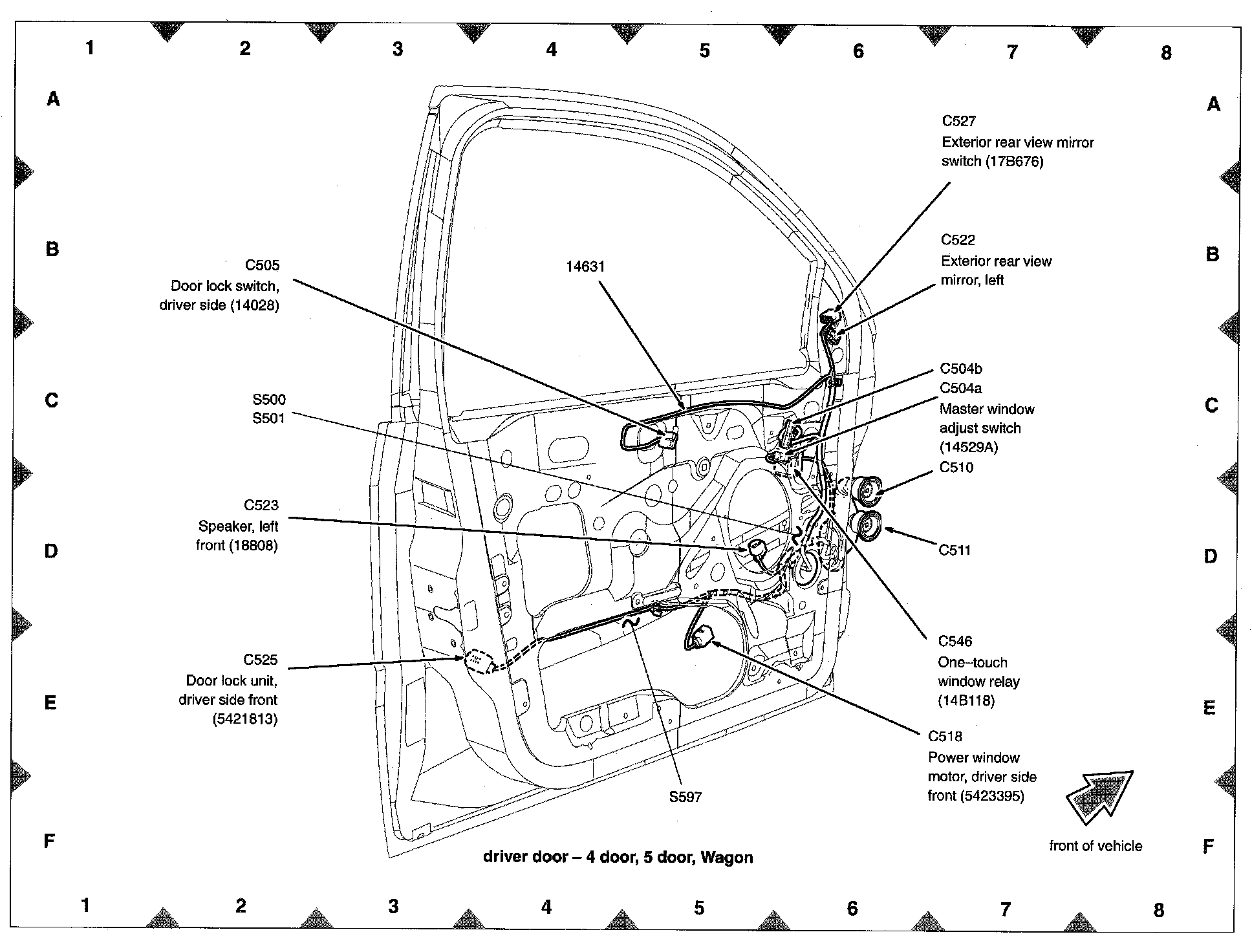

View 151-26 (Driver Door - 4 Door, 5 Door, Wagon):
