Rear Door Window Glass: Service and Repair

WINDOW GLASS - REAR DOOR

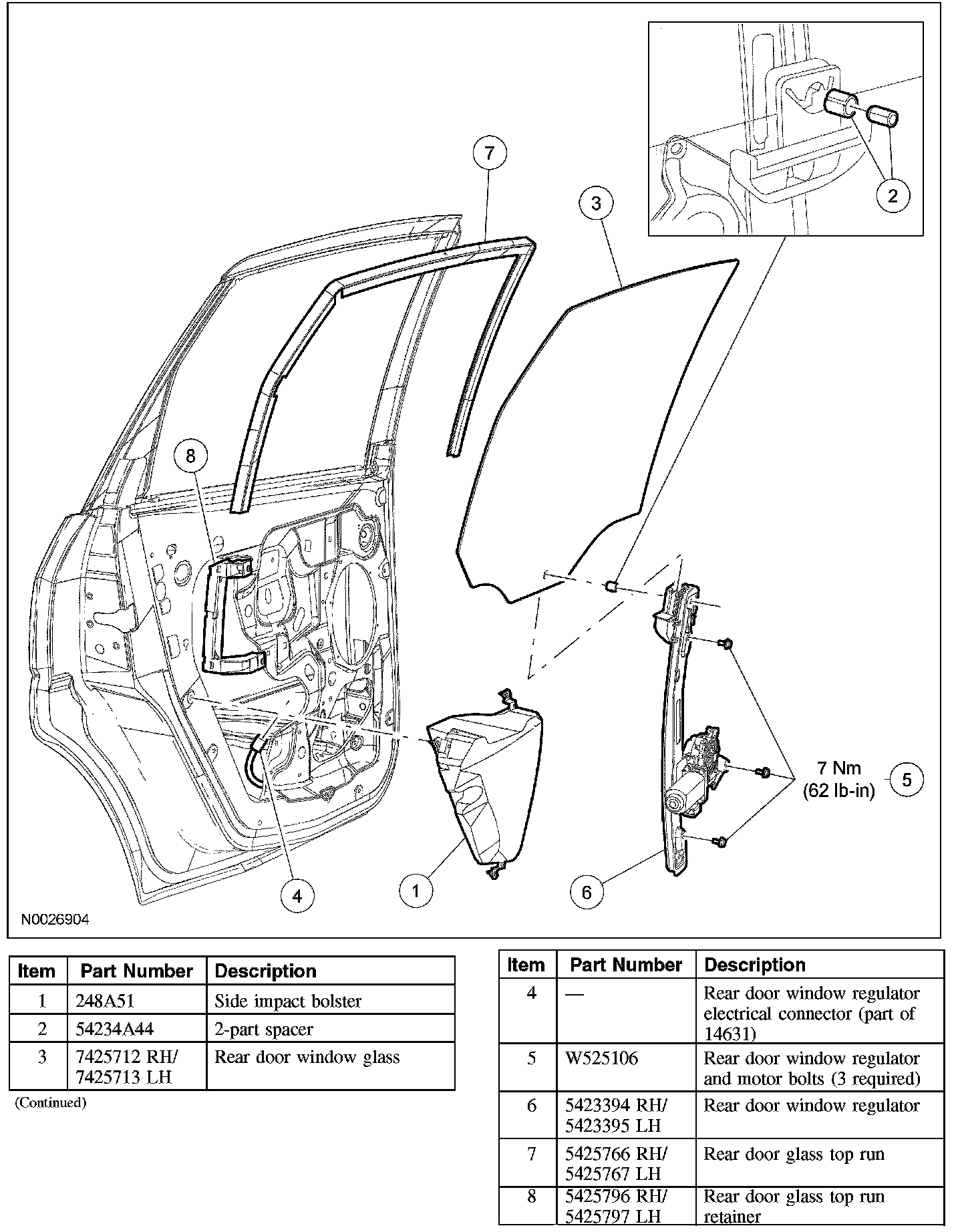

Exploded View

Removal and Installation

All vehicles
1. Remove the rear door speaker.
2. Remove the side impact bolster.
3. Position the door latch release handle aside.

4. CAUTION: Do not touch the adhesive surface, as re-bonding will be impaired.

Remove the watershield.

5. Loosen the screws, slide the door glass top run retainer up, and remove the door glass top run retainer.

Vehicles with manual windows
6. Install the window regulator handle.

Vehicles with power windows
7. Connect the door glass operating switch electrical connector.

All vehicles
8. Align the regulator clamp with the access hole.
9. Push out the pin, push out the sleeve of the 2-part spacer, and remove the window glass from the regulator.
10. Supporting the glass, lower the glass and regulator to the lowest position.

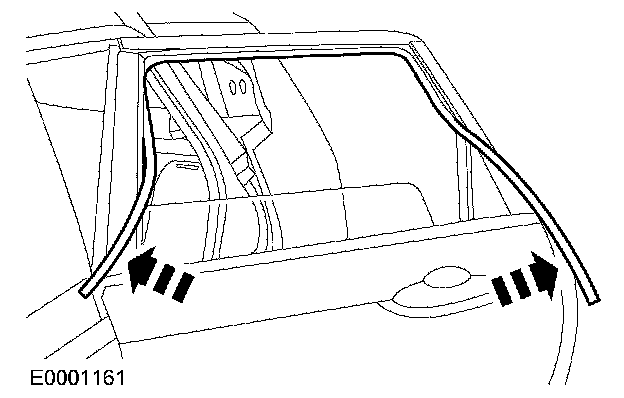

11. Position the lower part of the door glass top run outside the door.

12. NOTE: To aid removal of the door glass, stand on the inner side of the door. Make sure the glass is removed from the inside of the door.

Remove the window glass.

13. To install, reverse the removal procedure.
