Power Door Lock Switch: Service and Repair

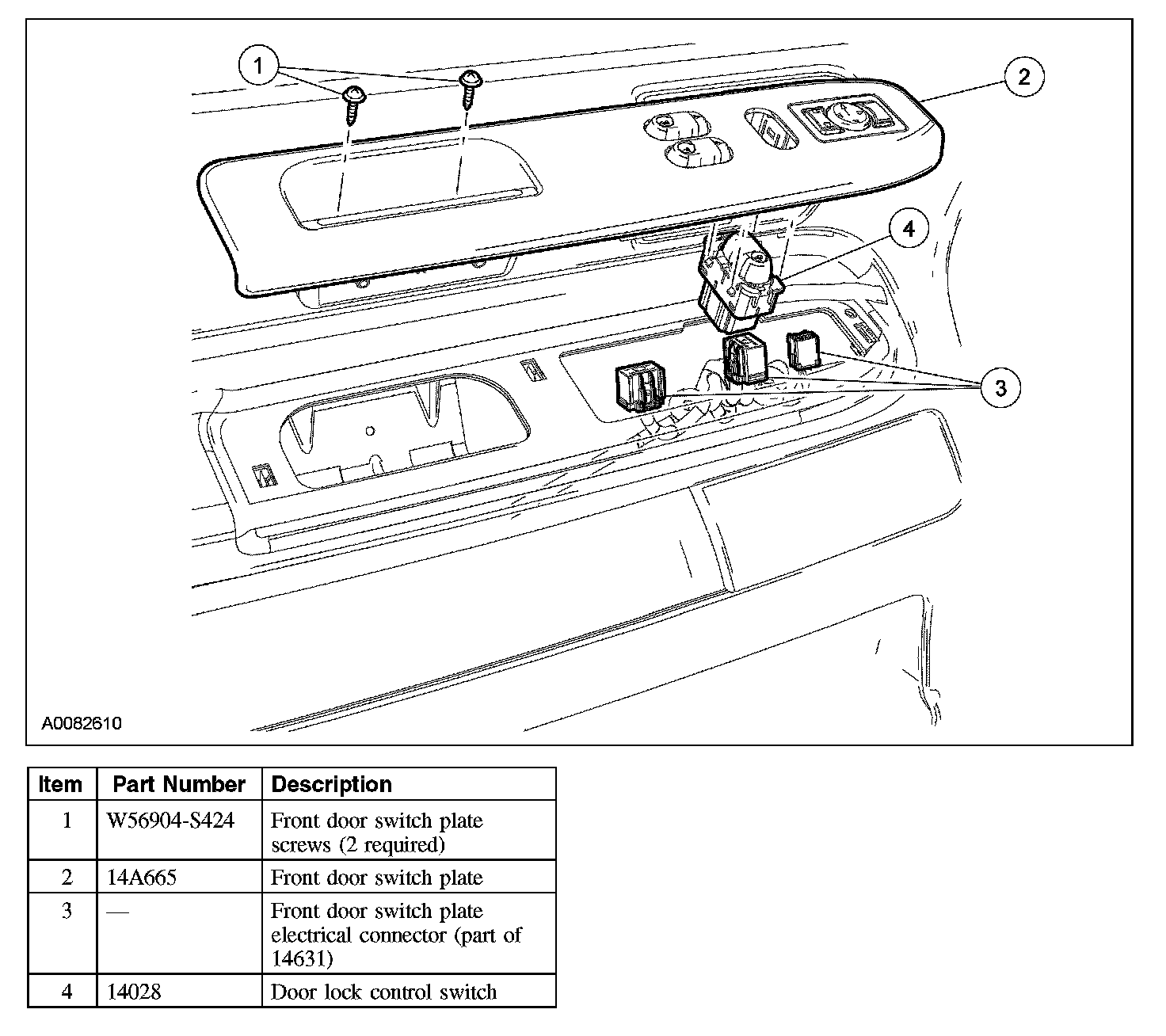

DOOR LOCK CONTROL SWITCH







Removal and Installation
1. Disconnect the battery.
2. Remove the 2 front door switch plate screws.
3. Remove the front door switch plate.
- Disconnect the electrical connectors.

4. Release the locking tabs and remove the door lock control switch.
5. To install, reverse the removal procedure.
