Power Mirror Motor: Service and Repair

EXTERIOR MIRROR MOTOR

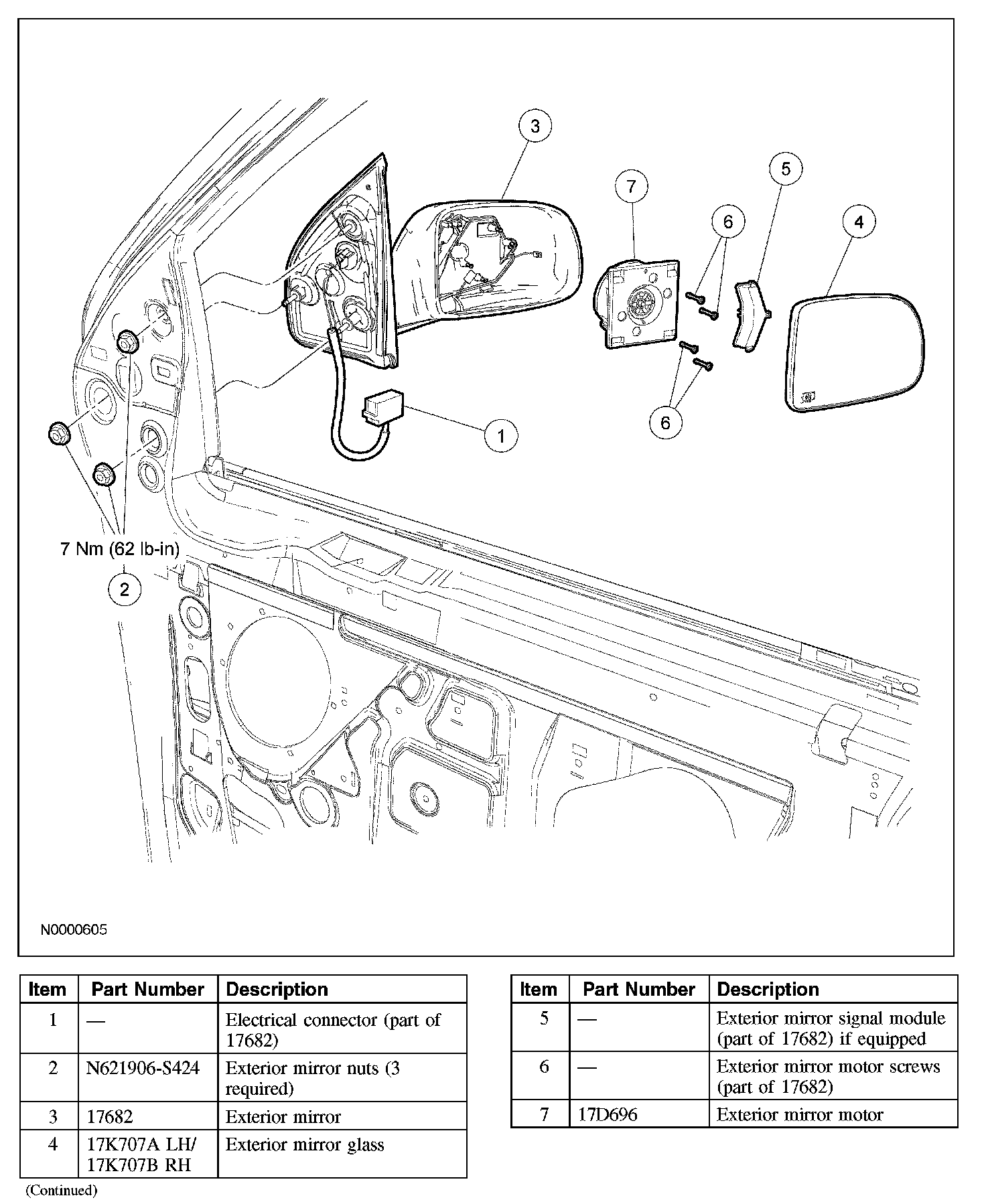

Exploded View

Removal and Installation
1. Remove the exterior rear view mirror glass.
2. Remove the 4 exterior mirror motor screws.
3. Disconnect the electrical connector.
4. To install, reverse the removal procedure.
