Lateral Accelerometer: Service and Repair
AccelerometerRemoval and Installation
NOTE: When installing a new accelerometer, the anti-lock brake system (ABS) module must be configured (using vehicle as-built data) and calibrated. Follow the scan tool directions for the calibration procedures. For module configuration, refer to Information Bus (Module Configuration).
1. Remove the driver side front seat. For additional information, refer to Seats.
2. Remove the lower B-pillar trim panel. For additional information, refer to Trim Panel.
3. NOTE: Fold back the carpeting flap to gain access to the accelerometer.

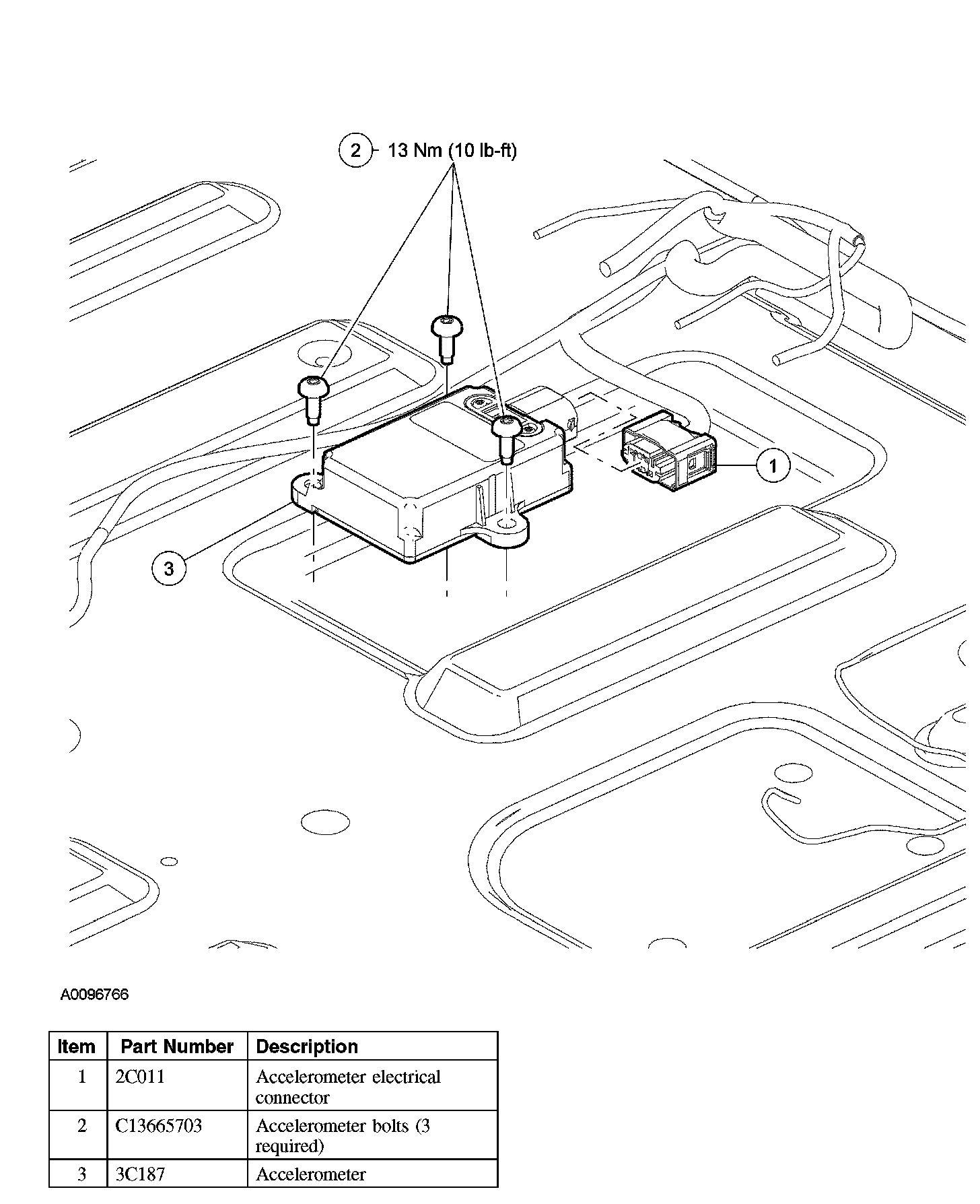

Disconnect the accelerometer electrical connector.
4. Remove the 3 accelerometer bolts.
^ To install, tighten to 13 Nm (10 ft. lbs).
5. To install, reverse the removal procedure.
