Steering Angle Sensor: Service and Repair

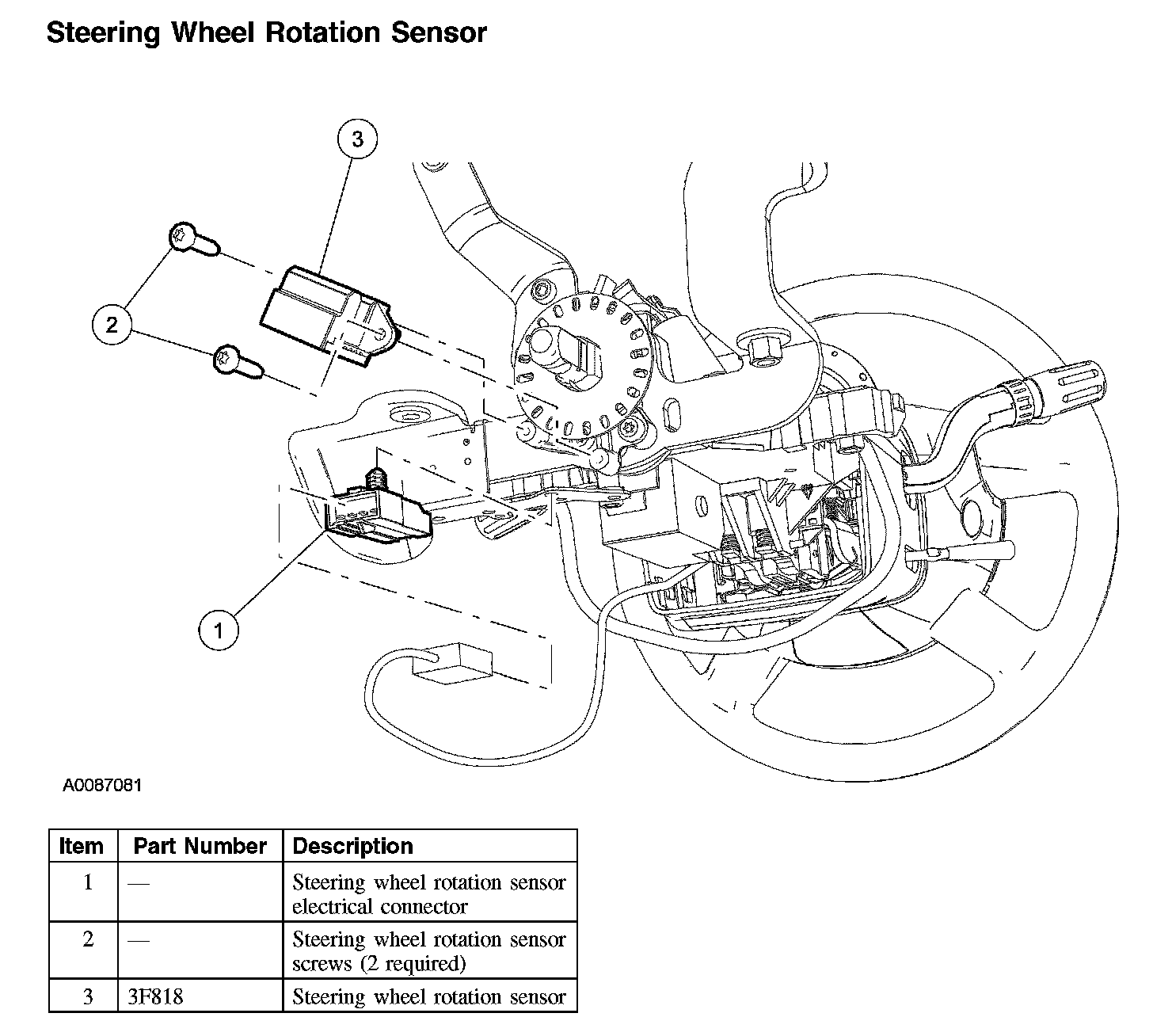

Steering Wheel Rotation SensorSteering Wheel Rotation Sensor:
NOTE: When installing a new steering wheel rotation sensor, the anti-lock brake system (ABS) module must be configured (using vehicle as-built data) and calibrated. Follow the scan tool directions for the calibration procedures. For module configuration, refer to Information Bus (Module Configuration).
1. Disconnect the steering wheel rotation sensor electrical connector.
2. Remove the 2 steering wheel rotation sensor screws.
3. Remove the steering wheel rotation sensor.
4. To install, reverse the removal procedure.
