Wheel Speed Sensor: Service and Repair

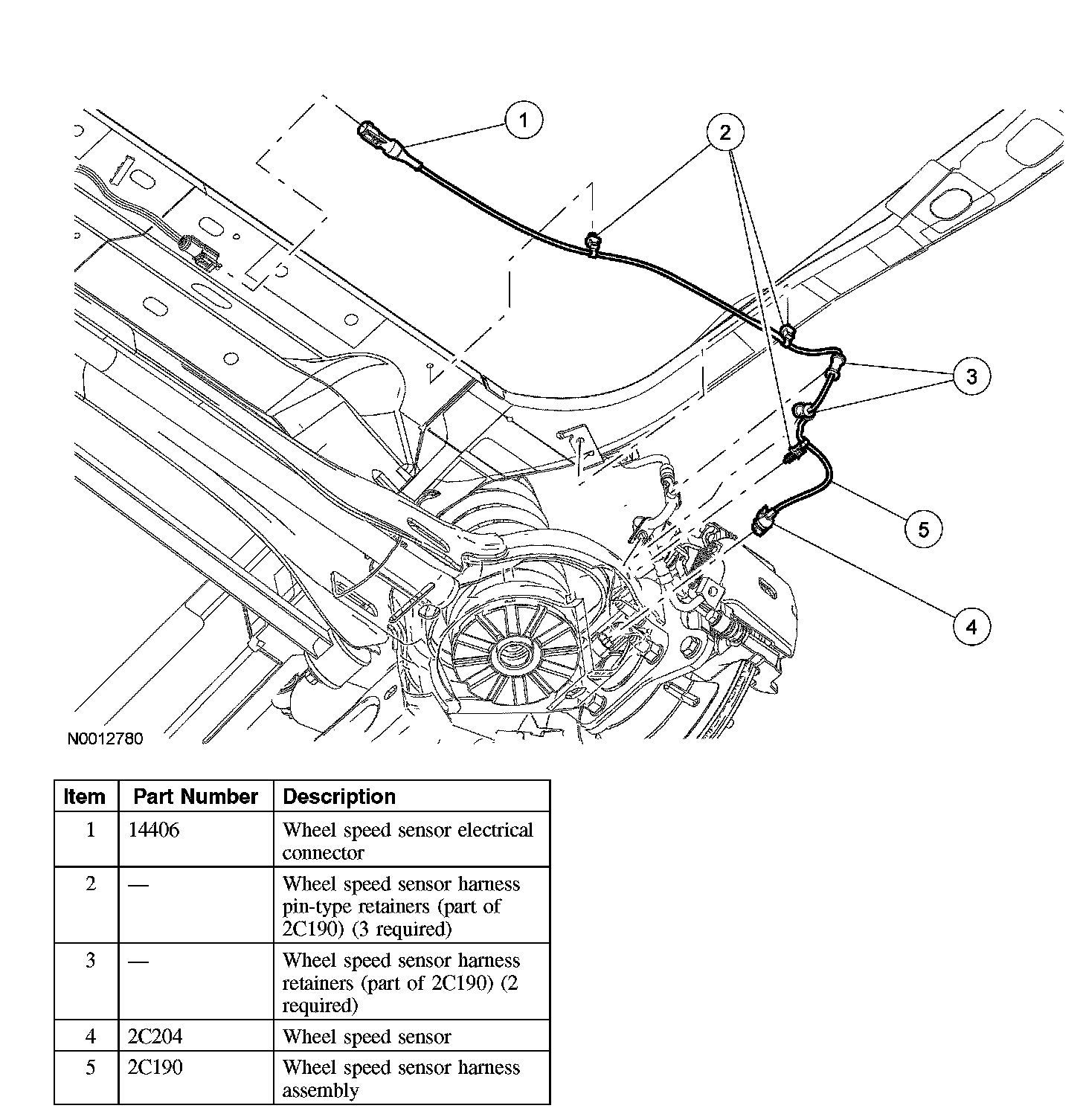

Wheel Speed Sensor - Rear

Removal and Installation





1. With the vehicle in NEUTRAL, place it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Disconnect the wheel speed sensor electrical connector.
3. Remove the 3 wheel speed sensor harness pin-type retainers.
4. Remove the 2 wheel speed sensor harness retainers.
5. Disconnect the wheel speed sensor at the wheel.
6. Remove the wheel speed sensor and harness assembly.
7. To install, reverse the removal procedure.
