Leak Detection Valve: Service and Repair

EVAPORATIVE EMISSION CANISTER VENT SOLENOID







Removal and Installation

WARNING: The evaporative emission system contains fuel vapor and condensed fuel vapor. Although not present in large quantities, it still presents the danger of explosion or fire. Disconnect the battery ground cable from the battery to minimize the possibility of an electrical spark occurring, which can cause a fire or explosion if fuel vapor or liquefied fuel are present in the area. Failure to follow these instructions can result in personal injury.

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery negative cable.

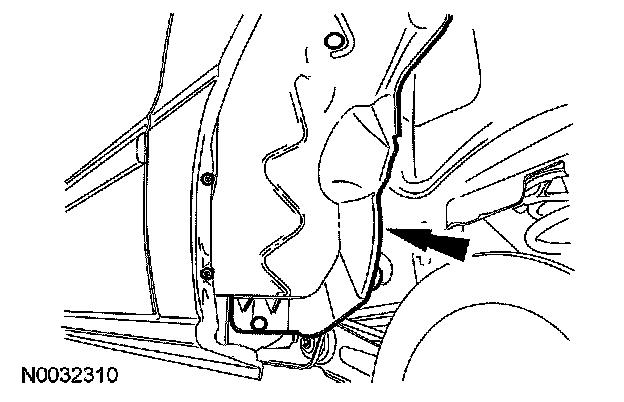

3. Remove the LH rear splash shield.

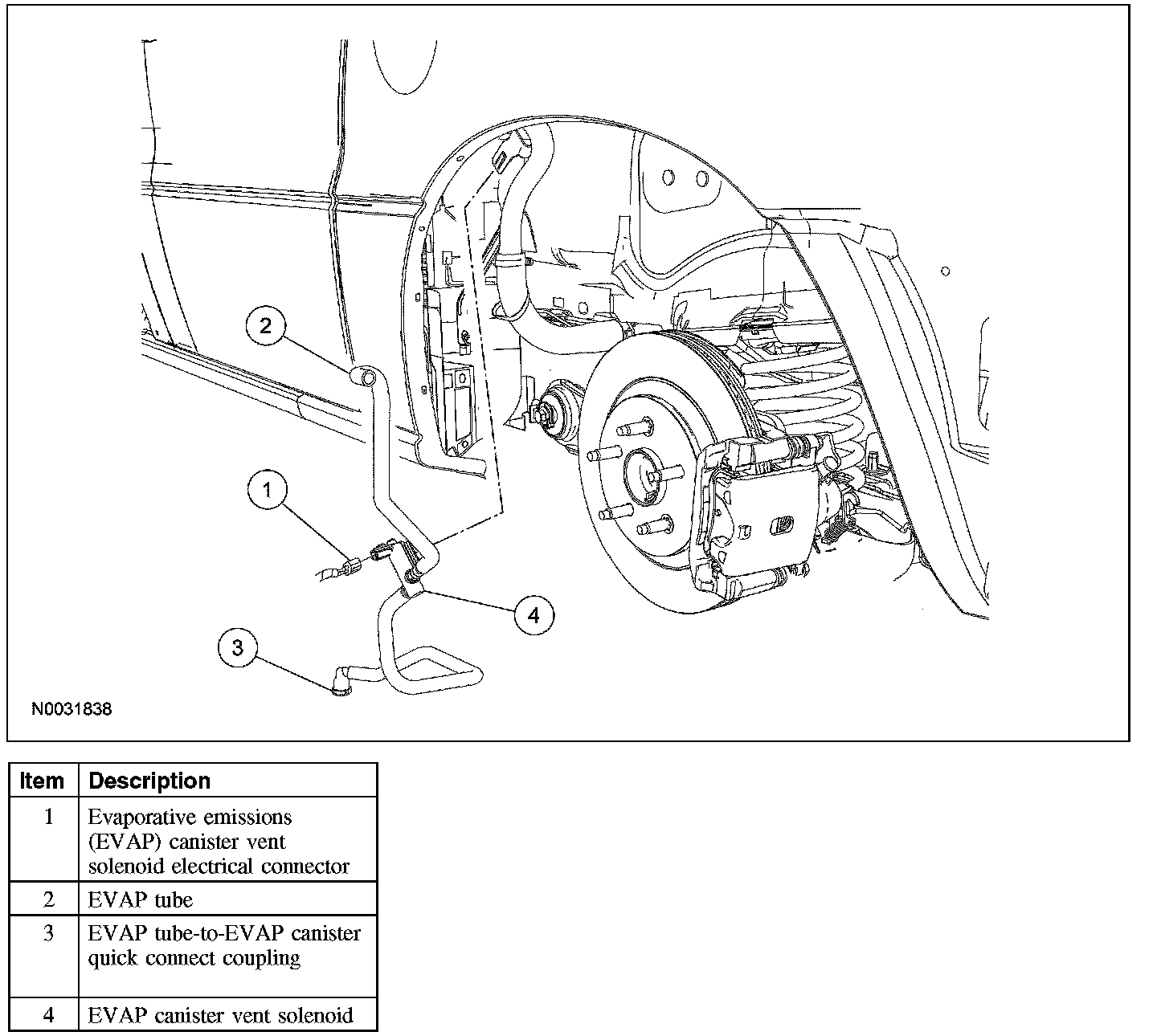

4. Disconnect the evaporative emission (EVAP) canister vent solenoid electrical connector.

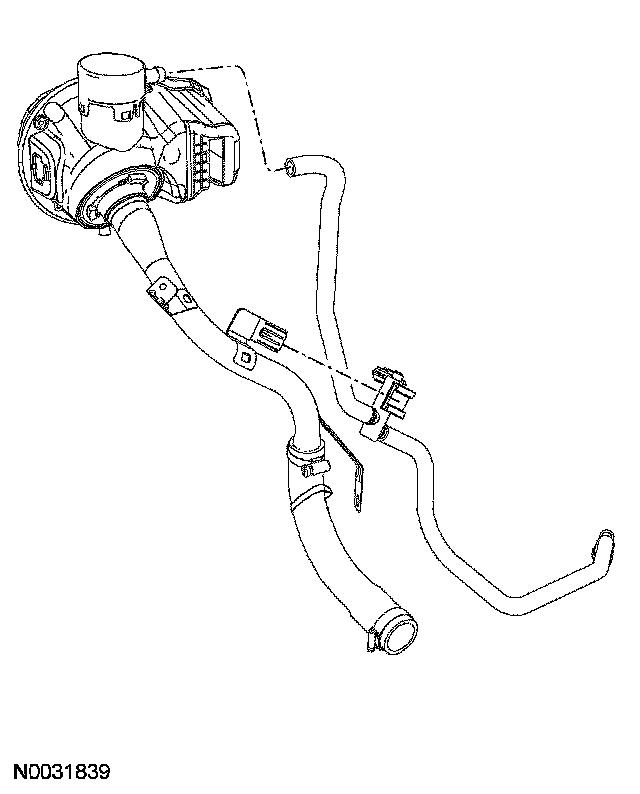

5. Disconnect the EVAP tube from the dust separator and release the EVAP canister vent solenoid retainer clip from the fuel tank filler pipe.
6. Disconnect the EVAP tube-to-EVAP canister quick connect coupling.
7. Cut the tie strap attaching the EVAP canister vent solenoid assembly to the fuel tank filler pipe and remove the EVAP canister vent solenoid assembly.
8. To install, reverse the removal procedure.
- Carry out the evaporative emission system leak test. Testing and Inspection
- Carry out the evaporative emission repair verification drive cycle.
