Parking Assist Control Module: Service and Repair

PARKING AID MODULE

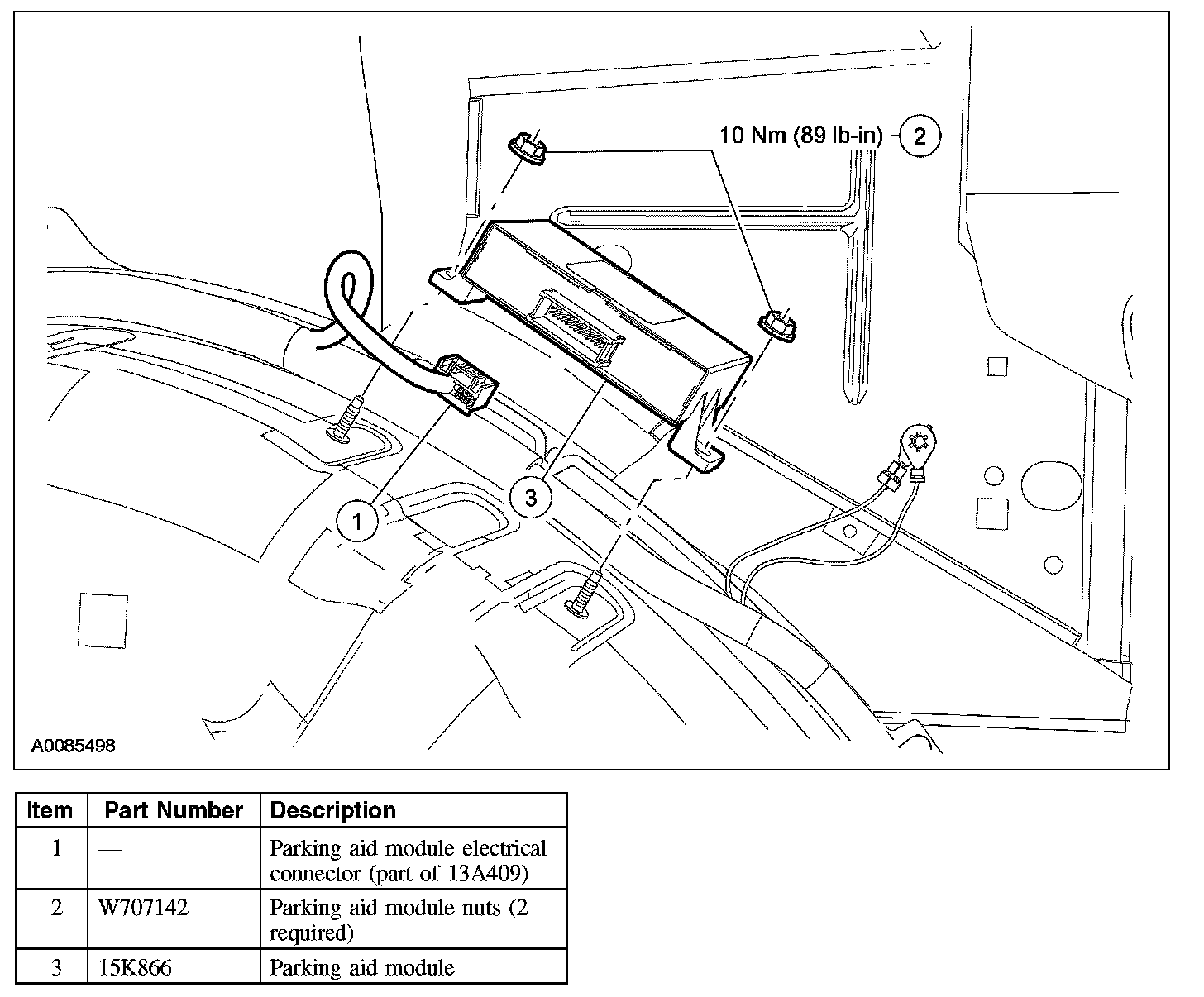

Removal and Installation
1. Remove the RH quarter trim panel.
2. Disconnect the parking aid module electrical connector.
3. Remove the 2 nuts and the parking aid module.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
