Front Door Window Motor: Service and Repair

WINDOW REGULATOR MOTOR - FRONT DOOR

Special Tool(s):

Special Tool(s)

Removal and Installation
1. Remove the window regulator.







2. WARNING: The window regulator has a counterbalanced spring. The window glass must be in the up position, or the regulator arm must be blocked to prevent it from springing open when the window motor is removed. Failure to follow these instructions may result in personal injury.

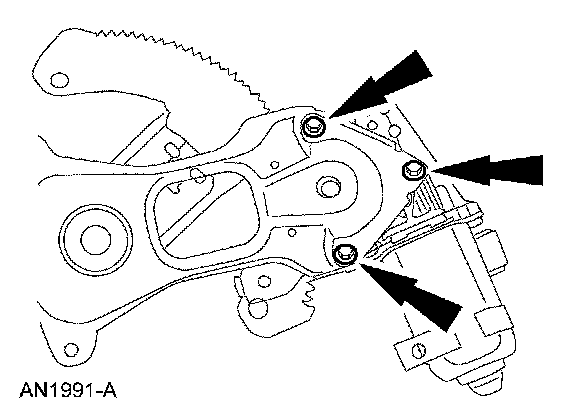

Remove the 3 bolts and the front door window regulator motor.
- To install, tighten to 8 Nm (71 lb-in).

3. To install, reverse the removal procedure.
