Quarter Window Glass: Service and Repair

WINDOW GLASS - REAR QUARTER

Material:

Material







Removal and Installation

LH and RH quarter window glass

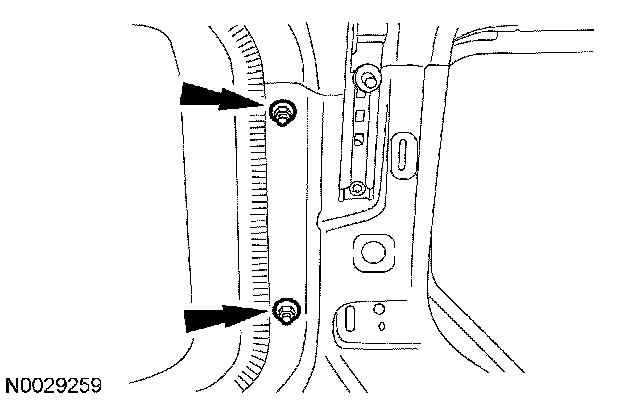

1. Remove the rear quarter and C-pillar trim panels.

LH quarter window glass only







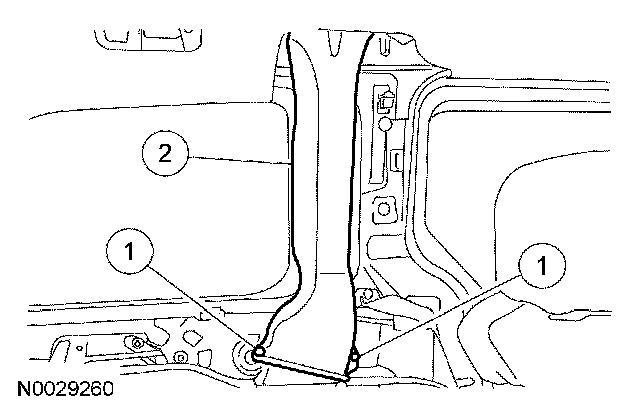

2. Remove the rear A/C duct.
1 Remove the pin-type retainers.
2 Remove the upper A/C duct.

RH quarter window glass only

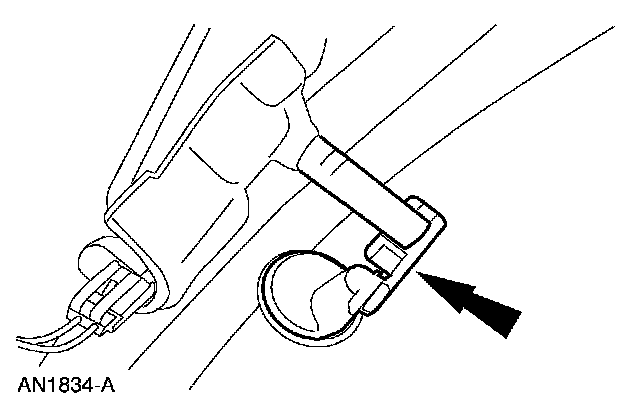

3. Disconnect the electrical connector.

LH and RH quarter window glass







4. Separate the window latch.







5. Remove the nuts and the rear quarter window glass.
- To install, tighten to 12 Nm (9 lb-ft).

6. To install, reverse the removal procedure.
- If reinstalling the original quarter glass, clean off any remaining butyl prior to installation of the quarter window glass.
- Clean the area around the rear quarter window opening of any remaining residue prior to installation of the quarter window glass.
