Windshield Washer Switch: Service and Repair

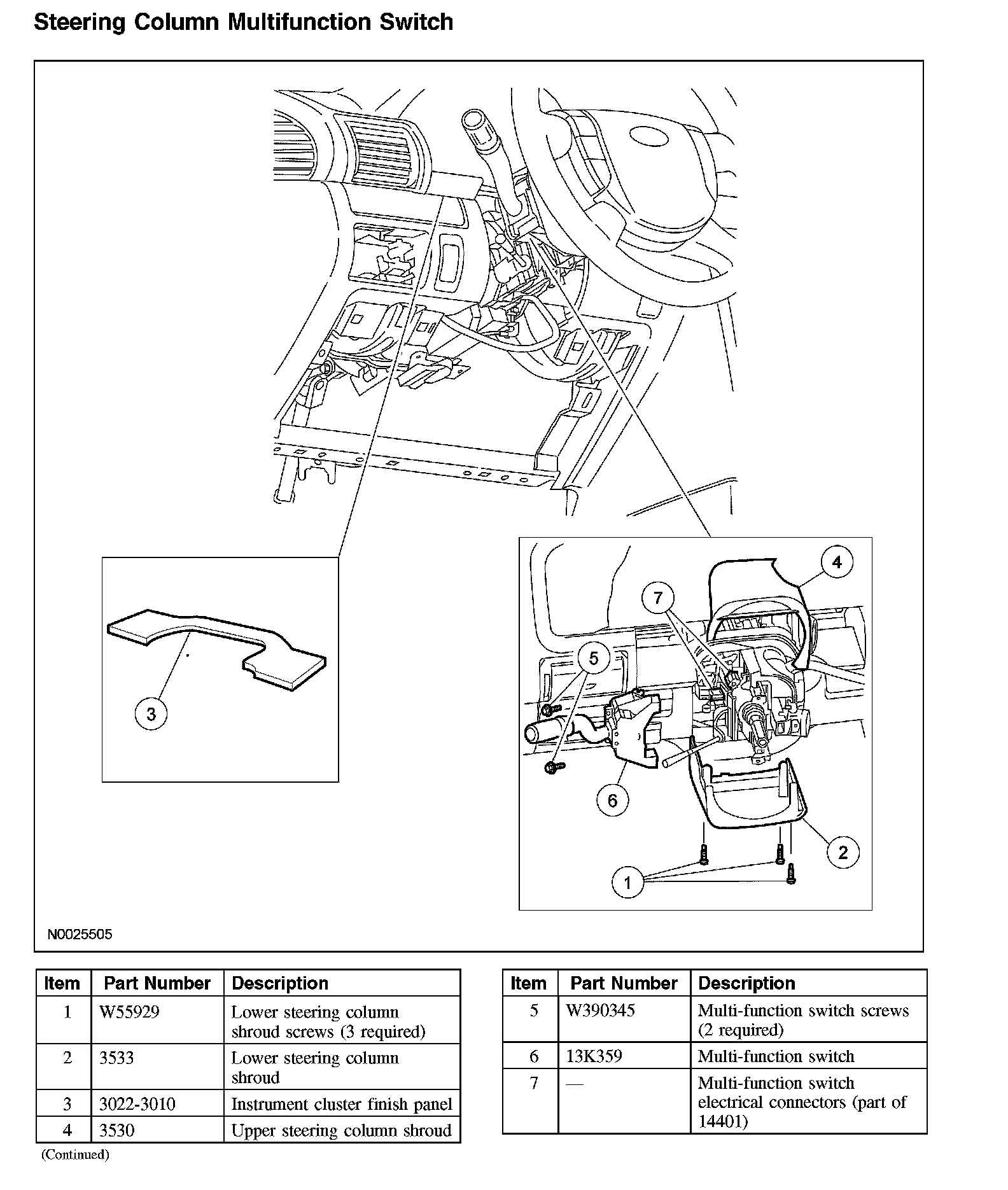

Steering Column Multifunction Switch

Steering Column Multifunction Switch:

Removal and Installation
1. Remove the ignition lock cylinder. For additional information, refer to Locks.
2. Remove the 3 screws and the lower steering column shroud.
3. Remove the instrument cluster finish panel.
4. Remove the upper steering column shroud.
5. Remove the 2 screws and the multi-function switch.
^ Disconnect the electrical connectors.
6. To install, reverse the removal procedure.
